Melamine Chipping on CNC Routers & Panel Saws: How to Fix It

Every Chipped Edge Is an Invoice You Never Sent

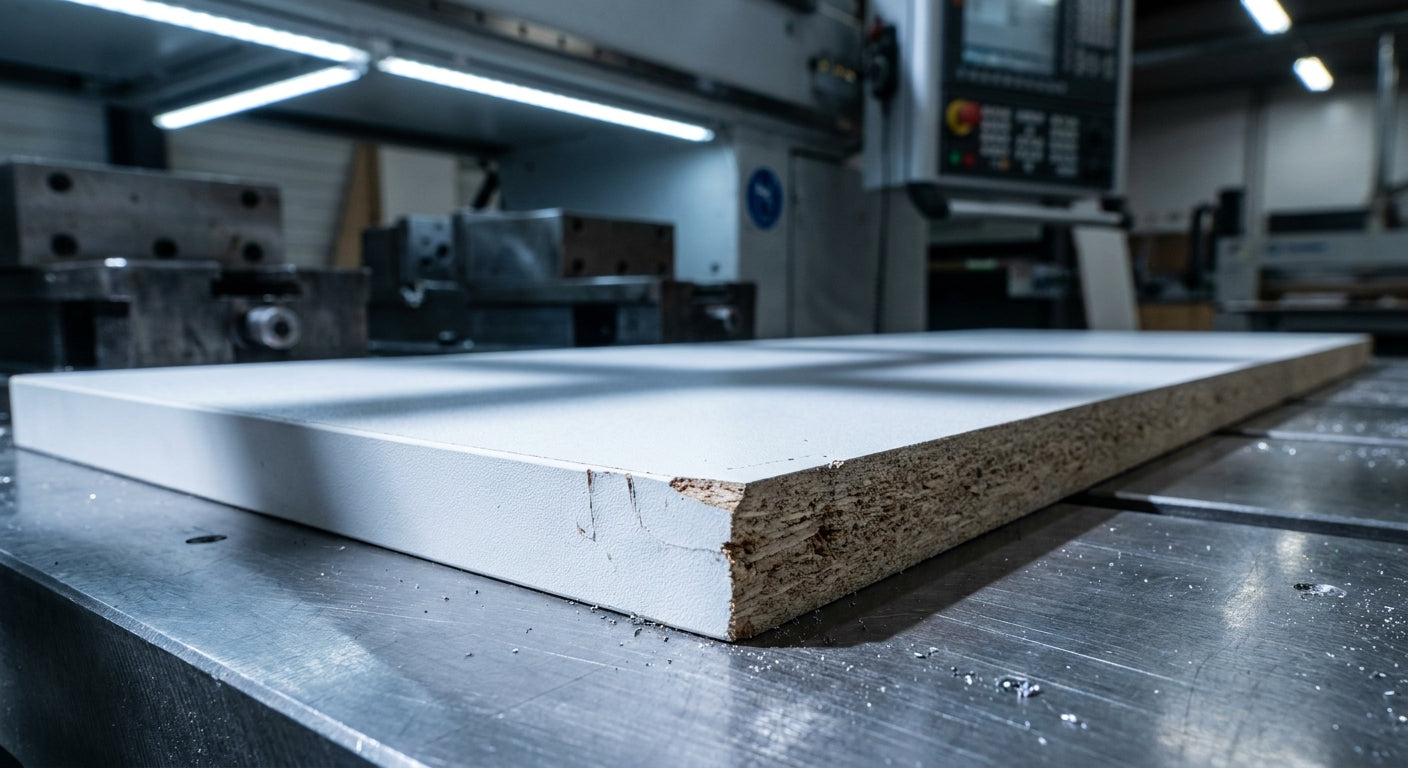

Melamine resin is hard and brittle, almost like glass, bonded over a soft, compressible particleboard or MDF core. That material mismatch is the single root cause of every chip, every tear-out, and every ragged edge your shop produces. Each one costs you money.

Chip-out is not a nuisance. It is a measurable profit leak: scrapped sheets, rework labor, edgebander adhesion failures, and customer callbacks all compound fast. Industry research shows average manufacturers lose up to 2.2% of annual revenue to scrap and rework, while top-performing shops hold that figure to 0.6%. The gap is often melamine quality. Lifting your quality rate from 83% to 93% can push Overall Equipment Effectiveness from 59.9% to 67.2%. Chipping drags on everything.

Since 2008, our team at Centex Automation has worked on production floors solving exactly these problems. What follows is a systematic, shop-floor diagnostic covering both panel saws and CNC routers, plus the downstream edgebanding connection most guides ignore entirely.

Why Melamine Chips: The Physics Every Production Shop Must Understand

Think of melamine laminate as a thin sheet of glass glued to a sponge. When a cutting tool applies force, the soft core compresses and deflects. The rigid laminate layer cannot flex with it, so it fractures instead of shearing cleanly. That fracture is your chip-out.

Directional cutting forces determine where the damage shows up. On a panel saw, the top face chips when blade teeth exit upward through the laminate. The bottom face chips when teeth exit downward. The laminate always fractures on the exit side of the cut.

Substrate core density is a hidden variable that catches many shops off guard. Low-density particleboard compresses more under blade pressure, allowing the surface laminate to lift and tear. High-density MDF-core boards resist that compression and reduce chip-out risk significantly with identical tooling and settings.

Here is a diagnostic trap worth knowing: some melamine formulations contain aluminum sulfates in the resin. These accelerate tool wear far beyond what normal melamine abrasion causes. If you are sourcing board from multiple suppliers and seeing inconsistent edge quality with the same tooling, this could be the reason.

Understanding these physics is the prerequisite for choosing the right fix, on a panel saw or a CNC router.

Panel Saw Root Causes and Setup Fixes

The scoring blade is your first line of defense on a panel saw. It spins in the opposite direction of the main blade and pre-scores the bottom face at roughly 1/16" depth before the main blade passes through. Because the scoring cut is shallow and counter-rotational, it fractures the laminate cleanly before the main blade's exit forces can tear it. Bottom-face tear-out is eliminated entirely when the scorer is working correctly.

Blade alignment is the most overlooked cause of melamine chipping on panel saws. A blade that is not running 100% true to the fence, or one with minor wobble from imperfect mounting flanges, will produce chip-out even with a premium blade and a zero-clearance insert. A practical diagnostic checklist your production manager can run:

• Check blade runout with a dial indicator. Any measurable wobble is a problem.
• Inspect mounting flanges for debris, burrs, or damage. Clean them every blade change.
• Verify fence parallelism to the blade. Even a few thousandths of misalignment introduces lateral cutting forces that fracture the laminate.

Scoring blade height and width settings must be dialed in precisely. An incorrectly set scorer creates its own chip-out pattern on the bottom face, which is often misdiagnosed as a main blade issue.

One realistic expectation to set: even a perfectly configured panel saw with a scoring blade will not produce as clean an edge for banding as a pre-mill station on a quality edgebander. That is not a failure of the saw. It is the reason pre-milling exists, and we cover that below.

CNC Router Root Causes: It's Probably Not Just the Bit

When a shop calls us about persistent melamine chipping on a CNC router, the first thing we ask about is not the bit. It is the vacuum hold-down. An undersized vacuum pump (insufficient HP or CFM), small-diameter hose connections, or a dirty spoilboard allows panels to shift and vibrate during cutting. That movement produces chipped edges regardless of how good your tooling is. Check your vacuum system before you blame the bit.

That said, tooling geometry matters enormously. Compression spiral bits are the industry standard for double-sided melamine. The downcut geometry on the top portion of the bit pushes fibers downward, while the upcut geometry on the bottom pulls fibers upward. Both faces stay clean simultaneously. There is a critical depth rule: the compression bit must engage at full material depth (typically 3/4" or deeper for standard sheet goods) for the upcut geometry to reach the bottom face. Shallow passes leave the bottom face unprotected, and bottom chipping results.

Chip load balance is fundamental. Too small a chip load causes rubbing, heat buildup, and tear-out. Too large causes aggressive fracturing. Both extremes produce defects. Target 0.003 to 0.004 IPT (inches per tooth) for melamine as your starting point.

Spindle runout and gantry rigidity also play a direct role. Vibration at high feed rates causes chipping regardless of tooling quality. This is one reason we recommend the Anderson America Selexx Half Line for production melamine work. Its cast iron gantry construction dampens vibration that welded steel frames transmit directly to the cut, producing measurably cleaner edges at production feed speeds.

An advanced tip for high-volume shops: the Z-oscillation technique. By varying Z-axis depth slightly across long runs, you distribute melamine-layer wear across a longer section of the compression bit, extending tool life without sacrificing edge quality.

Tooling Management: The Discipline That Separates High-Volume Shops

Dull tooling is the most common recurring cause of chip-out. Operators frequently do not recognize a bit as dull until edge quality has already degraded significantly. By the time you can see the wear, you have been producing substandard edges for dozens of sheets.

Field-validated tool life benchmarks from production shops: a 3/8" carbide compression bit typically processes approximately 80 sheets of melamine before requiring a change. A PCD (polycrystalline diamond) up-down shear bit extends that to 150 to 250 sheets. These numbers come from operators running real production, not manufacturer spec sheets.

High-volume shops implement a dedicated melamine bit rotation. Once a compression bit's edge quality begins to deteriorate on melamine, they retire it to MDF cutting duty. Never run a melamine-worn bit back on melamine. The edge quality will not recover.

This is exactly why we built our in-house tooling department at Centex Automation. A structured sharpening schedule, compression bit rotation programs, and blade specification matching eliminate the most common cause of recurring chip-out before it reaches the production floor.

If you are sourcing melamine from multiple board suppliers, track tool life per supplier. Aluminum sulfate formulations accelerate wear unpredictably, and per-supplier tracking will identify problem stock early.

Recommended CNC parameters for melamine as a baseline: 14,000 to 18,000 RPM, 600 to 800 IPM on industrial nesting machines with 3/8" 2-flute compression bits. Dial these in before chasing other causes.

The Downstream Connection: How Chip-Out Reaches Your Edgebander

Most guides stop at the cut. But chip quality at the router or saw directly determines edgebander performance. Chipped edges create voids under edge tape, compromising glue adhesion and producing visible failures your customers will find. A clean cut is not optional if you want clean banding.

The pre-milling station on a quality edgebander is your quality backstop. Two counter-rotating diamond-coated cutterheads climb-cut the panel edge before banding is applied, removing residual chipping, saw marks, and out-of-square edges. The result is an optimum glue surface on every panel.

Pre-mill material removal is calibrated to match edgebanding thickness: 0.5mm for thin banding, up to 3mm for thick PVC. Finished panel dimensions remain unchanged from cut size, so your nesting software needs no adjustment.

The productivity impact is real. Pre-milling eliminates 30 to 45 seconds per panel of manual saw-mark cleanup. Production shops running 10-hour shifts report handling 32 sheets (cut, edge-banded, and ready for hardware) with a single operator.

The Felder G 363 and G 363R edgebanders, available through Centex Automation, include an application-controlled pre-milling unit as standard. They handle edge thicknesses from 0.4 to 5mm and feature a 7" touchscreen for precise glue temperature regulation. For any shop running melamine at volume, these machines are a direct downstream solution for chip remediation.

Pre-milling is not a luxury. It is mandatory quality infrastructure in any high-volume melamine production line.

The Systematic Chip-Out Diagnostic: A Shop-Floor Checklist

Use this sequential diagnostic framework on the floor. Print it, laminate it, and post it at your machines.

Panel Saw Checklist

1. Scoring blade engaged, height and width set correctly
2. Blade runout within tolerance (check with dial indicator)
3. Mounting flanges clean and undamaged
4. Fence parallelism verified
5. Blade specification matched to melamine

CNC Router Checklist

1. Vacuum hold-down CFM and hose diameter adequate
2. Spoilboard clean and flat
3. Compression bit at full material depth
4. Chip load calculated and within 0.003 to 0.004 IPT range
5. Bit age tracked against sheet count
6. Spindle runout checked

Substrate Check

Note board supplier, core type (particleboard vs. MDF), and density for every lot. If chipping changes with a board change, the substrate is the variable, not your machine.

If upstream cutting is optimized and low-level chipping persists, the edgebander pre-mill station is the final corrective layer. That is not a workaround. It is the designed function of the machine.

The Right Equipment Makes the System Work

Equipment selection for a melamine production line is a systems decision. The panel saw, CNC router, and edgebander must be specified together for the line to perform at its ceiling.

The Anderson America Selexx Half Line CNC Router is built for exactly this kind of production. Its cast iron gantry provides vibration dampening at high feed speeds, and automated loading, labeling, and offloading support nested-based manufacturing at up to 50 sheets of nested cabinet parts per day. Full specifications are at centexautomation.net.

The Felder G 363 and G 363R edgebanders are the downstream complement: pre-milling standard, 0.4 to 5mm edge capacity, and precision glue temperature control via a 7" touchscreen. Details are at centexautomation.net.

Our tooling department at Centex Automation provides compression bit rotation programs, sharpening schedules, and blade specification matching as an integrated service. Tooling is managed under the same roof as your machine support, with no separate vendor relationship to maintain.

As an independent dealer representing 20+ brands, our machine recommendations are matched to your production goals, not a single manufacturer's lineup. We give you an honest fit assessment because that is how we have operated since 2008.

If melamine chipping is costing your shop in rework, scrap, or customer callbacks, talk to us. We will walk through your situation and give you a straight answer.

Stop Paying the Chip-Out Tax

Every chipped edge is a cost already paid: material, labor, adhesion failures, callbacks. The diagnostic framework in this article is how you stop paying it.

The solution has three layers: correct machine setup (panel saw alignment, CNC vacuum and depth configuration), disciplined tooling management (bit rotation and sharpening programs from our tooling department), and a downstream quality backstop (edgebander pre-milling). All three layers working together is what separates shops running at 0.6% scrap from those burning 2.2%.

Chip-out is not a materials problem or a luck problem. It is a systems problem with a systems solution.

Ready to get it sorted? Contact Centex Automation for a production assessment. It is a peer conversation, not a sales pitch.
