Edgebander Glue Joint Diagnosis: EVA & PUR Troubleshooting Guide

Every Glue Defect Is a Diagnostic Signal, Not Random Failure

One shift of open joints or bond failures on a commercial casework run can mean hundreds of rejected panels, rework costs, and delayed deliveries. That disruption is never random. Every glue joint defect you see on an edgebander — open joint, squeeze-out, or delamination — is a symptom pointing to a specific, correctable root cause.

Here's a principle that trips up a lot of operators: more glue does not mean a better bond. The correct application is the thinnest stable layer that fully covers the substrate edge. Anything beyond that creates problems, not insurance.

This article is structured as a symptom-by-symptom diagnostic guide. Before the troubleshooting, though, you need to understand the two adhesive systems at play. EVA (Ethylene Vinyl Acetate) bonds by cooling and solidification; that bond is reversible, meaning heat can re-soften it. PUR (Polyurethane Reactive) bonds through moisture-activated chemical crosslinking; once cured, it's irreversible. That fundamental difference shapes every diagnostic decision you'll make.

Understanding Your Adhesive System: EVA vs. PUR Fundamentals

EVA hot melt runs at 180–200°C and bonds through physical cooling. Because that bond is thermoplastic, it's vulnerable to re-melting under sustained heat or moisture. For kitchens, bathrooms, and commercial casework exposed to humidity or steam, this is a critical limitation.

PUR runs at a lower temperature range of 120–150°C and cures irreversibly through a moisture reaction. Full cure takes up to 48 hours, so joints must not be stressed during that window. Rushing panels into post-processing before PUR has cured is a common cause of early bond failures that gets blamed on the adhesive itself.

PUR requires approximately one-third the adhesive volume of EVA per linear meter. That produces a thinner, near-invisible glue line and significantly less squeeze-out risk. PUR bond strength is reported to be more than twice that of EVA, with superior resistance to peeling, heat, humidity, and solvents. It's also 100% solids with no solvents, making it a low-VOC option for shops pursuing healthier work environments or green building compliance.

More than 80% of the edgebanding market currently uses EVA, but PUR adoption is accelerating as kitchen, bath, and healthcare specifications increasingly demand moisture- and heat-resistant bonds. Regardless of which system you run, temperature discipline is non-negotiable. Running either adhesive outside its specified range causes degraded bond strength, carbon buildup, or excessive squeeze-out.

Diagnosing Open Joints: A Symptom-by-Symptom Framework

Open joints are the most common edgebander defect. But not all open joints share the same cause, and treating them as one problem with one fix is the most common diagnostic mistake shops make.

Start your diagnosis by checking these four causes in order:

1. Insufficient pressure roller force. If the rollers aren't pressing the edgeband firmly enough against the substrate, the adhesive can't wet both surfaces properly.
2. Cold edgebanding material or panel. Panels or edgeband stock pulled from an unheated storage area will chill the adhesive on contact, causing open joints that look like machine problems but are actually material conditioning issues.
3. Adhesive temperature too low. The glue isn't flowing and wetting the surfaces adequately.
4. Hollow-milled board edge. If the substrate edge isn't flat, no amount of adhesive or pressure will produce a consistent bond.

Watch for the "mice teeth" defect specifically. These are intermittent glue voids along the joint, caused by insufficient adhesive volume, low application temperature, or cold substrate. They look different from a general open joint and require a different corrective approach.

One of the most underreported root causes is the hidden temperature gap. The actual adhesive temperature at the glue roller can differ from the controller display by more than 10°C. A simple infrared pyrometer check exposes this instantly. If the discrepancy exceeds 10°C, contact your machine's service department. That's a diagnostic threshold, not a minor calibration issue.

Feed speed is another critical and often under-adjusted variable. Running too slow allows adhesive to cool before pressure is applied, directly causing open joints. Most troubleshooting guides focus on temperature and pressure, but feed speed governs adhesive open time and must be dialed in for each material and thickness combination.

Diagnosing Glue Squeeze-Out and Bond Failures

Squeeze-out is not always caused by too much adhesive. It can also result from low pressure roller force, incorrect glue roller position, uneven board edges, or poor trimming that forces excess adhesive to the visible surface. Before you reduce glue volume, check those mechanical variables first.

When a bond fails, pay attention to where the adhesive remains after delamination. If the adhesive stays on the edgebanding rather than the panel, that typically indicates the board material was too hot from prior processing. It's a substrate temperature issue, not an adhesive temperature issue. This diagnostic clue saves significant troubleshooting time.

For a fast, field-ready test, use the cross-section diagnostic method: cut a failed sample open and inspect the glue pattern. Patchy glue indicates an application problem (volume, temperature, or roller condition). Glue present but the band loose indicates a pressure, temperature, or material compatibility issue.

Material compatibility is a growing failure mode. EVA adhesives formulated for standard MDF or particleboard, when applied to HPL, high-gloss PVC, textured ABS, or composite panels without primer or adhesive reformulation, cause systematic bond failures. Operators frequently misdiagnose these as machine problems when the root cause is an adhesive-substrate mismatch.

One of the most preventable failure modes in any shop: EVA glue pots must never sit at operating temperature idle for more than 15 minutes. Burnt, oxidized adhesive builds up on the inner walls and directly causes bond strength failures and delamination. If your operators are taking breaks without shutting down or cycling the pot, you're building a delamination problem into every panel.

The Glue Pot and Pre-Milling: The Two Variables Most Shops Underestimate

The glue pot is the heart of the edgebander. If it's not functioning at 100%, neither is the machine. Most bond failures traced in the field lead back to glue pot condition, temperature accuracy, or roller calibration.

Pre-milling is the critical upstream step that too many shops skip. It removes saw marks and micro-chipping from the substrate edge before adhesive application, creating a flat, consistent bonding surface. This reduces glue line thickness and open joint risk. Skipping pre-milling to save cycle time is a false economy; you'll spend more time on rework than you ever saved.

PUR systems demand dedicated end-of-shift maintenance. Residual PUR must be removed from the glue pot and nozzles while still warm. Annual service on heating elements, thermocouples, and pneumatic valves is recommended. Running PUR in an EVA-configured glue pot without proper isolation introduces moisture contamination of the PUR adhesive before application. This is a PUR-specific failure mode with no EVA equivalent, and it's one of the most common mistakes shops make during the EVA-to-PUR transition.

Machines Built to Solve These Problems

The Felder G 363 R features a Teflon-coated interchangeable glue pot with 1.2 kg capacity and a 12-minute heat-up time. Its fine-adjustable application roller and interchangeable pot design simplify adhesive changeovers and reduce contamination risk, making it a strong EVA platform for shops that need to switch between adhesive colors quickly.

The Casadei Flexa 27 is configurable for both EVA and PUR adhesive systems. For shops transitioning between adhesive technologies or running mixed product lines, it offers the flexibility to run both without committing to a single system.

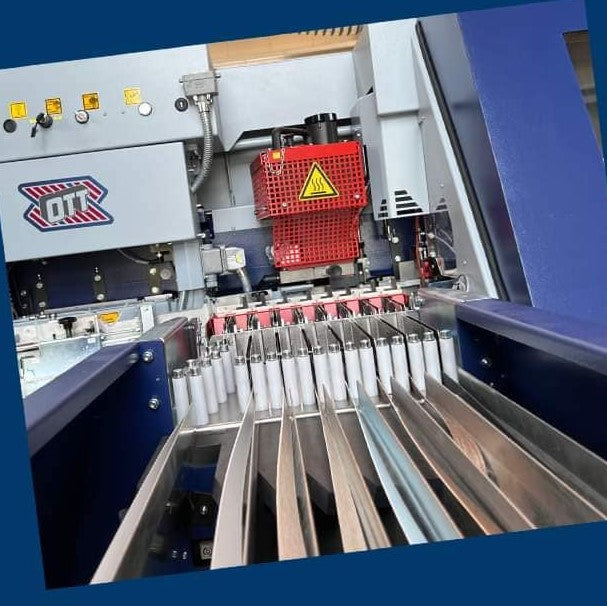

The Paul OTT Storm+ is a dedicated PUR-capable production machine that eliminates the moisture isolation challenges of running PUR in a converted EVA pot. For shops committed to PUR production, it removes a major failure variable from the equation.

Build a Diagnostic Habit Before Problems Become Rework Crises

When chasing a glue joint problem, follow this diagnostic hierarchy: start with temperature accuracy (controller vs. actual), then pressure roller force, then feed speed, then pre-milling quality, then material compatibility. Work that sequence before changing adhesive brands or calling for a service tech.

Documented preventive maintenance programs, including glue pot cleaning schedules, thermocouple checks, and roller calibration logs, are a measurable competitive differentiator in high-throughput production. Shops with PM programs gain uptime advantages that compound over every shift.
