ATC CNC Routers: How to Match Your Tool Changer to Your Shop's Production Profile

Your ATC Is Either a Throughput Engine or a Hidden Bottleneck

A cabinet shop running two manual CNC routers with three operators was producing 12 cabinets per day. They replaced both machines with a single automatic tool changer CNC router and one operator. Output jumped to 25 cabinets per day, and the machine paid for itself in under 8 months.

That kind of result is real, but it is not automatic. The number of tool positions, the magazine architecture, and the chip-to-chip changeover speed determine whether your ATC accelerates production or simply relocates the bottleneck.

This article breaks down three evaluation criteria every buyer should understand before signing a purchase order: ATC configuration type, tool capacity, and changeover time. Each is mapped to specific production profiles so you can make a decision grounded in your shop's actual output goals.

The urgency is real. As of late 2025, U.S. manufacturing had 433,000 open job positions, and more than 25% of skilled woodworking tradespeople are nearing retirement. ATC automation is no longer just a speed upgrade. It is a workforce resilience strategy that keeps your shop running when experienced operators are impossible to find.

The Three ATC Magazine Architectures (and Which Shop Each Fits)

Every ATC CNC router uses one of three primary magazine types. Understanding the mechanical differences helps you predict how each will perform across a full production shift.

Static Rack (Linear)

Tools sit in a fixed rack, typically mounted at the back or side of the machine bed. When the spindle needs a new tool, it travels to that position, drops the current tool, picks up the next one, and returns to the workpiece. That traverse adds non-cutting time to every change, and it compounds across hundreds of changes per shift. Static racks work well for shops running 6 to 12 tools in standard nesting programs where changeover frequency is moderate.

Carousel (Disc)

A rotary magazine mounted on or near the gantry brings the next tool to the spindle rather than forcing the spindle to travel. Chip-to-chip time often drops below 8 seconds. Carousel ATCs typically hold 8 to 20 tools, making them the right fit for high-mix production environments with frequent profile changes, such as cabinet and millwork shops running multiple door styles or edge profiles in a single shift.

Chain Magazine

A linear chain of tool pockets can hold 30 or more tools. This architecture serves architectural millwork firms running large tool libraries with 20-plus SKUs per day, where the cost and complexity of a chain system is justified by the sheer variety of profiles in production.

A simple mapping: entry-level nesting shop, go static rack. Mixed-profile cabinet and millwork, go carousel. Dedicated door lines or high-volume panel programs, consider a pendulum dual-zone process. The pendulum configuration pairs two independent work zones so the operator loads one while the spindle machines the other, eliminating idle spindle time entirely.

Tool Capacity vs. Changeover Speed: Two Specs Buyers Routinely Conflate

Tool capacity is the number of positions in the magazine. Chip-to-chip time is the seconds it takes to complete one tool swap. Both matter independently, and confusing the two leads to bad purchasing decisions.

Consider the math on manual changes. A single manual tool swap, including cleaning the collet and re-zeroing the Z-axis, takes 5 to 8 minutes. A cabinet door requiring 4 different tools loses roughly 20 minutes per sheet to manual swaps alone. An ATC machine completes all four changes in about 40 seconds. Manufacturer data shows carousel ATCs save 30 to 50% of total cycle time compared to manual systems on equivalent production runs.

Static rack ATCs require the spindle to traverse to a fixed home position for every change, adding non-cutting travel time that a gantry-mounted carousel avoids. If your jobs demand frequent tool changes, that traverse penalty compounds quickly.

To determine how many tool positions you actually need, start with a straightforward framework. Count the unique tools required for your most complex single job. Add 2 to 3 buffer positions for worn-tool swaps mid-run. Match that total to available magazine configurations. A shop running 5 SKUs needs far fewer positions than a millwork firm running 30-plus architectural profiles. Tool capacity requirements scale directly with product mix complexity.

Three Machines, Three ATC Profiles: Anderson Spectrum, Stratos Pro, and Exxact DUO

This is a production-fit exercise using three real machines at three distinct ATC tiers. Since Centex Automation was founded in 2008 by industry veterans with hands-on wood manufacturing experience, we have helped hundreds of shops match the right ATC configuration to their actual workflow. Here is how these three Anderson platforms line up.

Anderson Spectrum-M Series

The Spectrum-M features a 6-position static ATC rack with a tool length touch probe, a 12 HP 4-pole air-cooled spindle with ceramic bearings, and FANUC control. It is built on 100% steel construction and available in 4x8, 5x10, and 5x12 table sizes. Built in North America, it shares spindle, rack-and-pinion, and control components with Anderson's larger premium models.

This machine is the most cost-effective industrial-quality ATC router in the Anderson lineup. It is ideal for shops scaling into industrial-grade ATC routing with standard nesting programs and limited floor space. If your production runs 6 to 8 consistent tools and you need a reliable entry point, the Spectrum-M delivers industrial continuous-duty performance without overbuying capacity you will not use.

Anderson Stratos Pro

The Stratos Pro steps up to a 10-position carousel ATC, an HSK-63F electro-spindle at 11 to 15 HP with speeds up to 24,000 RPM, and rapid travel rates up to 100 m/min. The heavy-duty cast iron gantry handles continuous-duty cycles without deflection. It is available with automatic loading and unloading systems, barcode printing, and large boring units.

This is the right fit for high-mix cabinet and millwork shops running frequent profile changes. The carousel's sub-8-second chip-to-chip time keeps the spindle cutting instead of traveling, and the full-line configuration with suction cup loading and automatic offloading enables near-continuous sheet processing with minimal operator intervention.

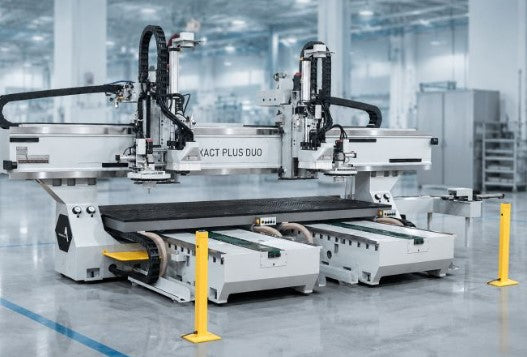

Anderson Exxact DUO TC2+D2

The Exxact DUO uses a pendulum dual-zone configuration with two independent 5x6 work zones. It packs an 18 HP HSK-63F spindle, a 10-station ATC, a 5x5 drill block, C-axis, and dual Becker vacuum pumps. Purpose-built for high-volume MDF door production, the operator loads one zone while the spindle machines the other, effectively doubling productive spindle time per shift compared to single-table machines.

All three machines are available through Centex Automation. We represent over 20 brands, which means our recommendation is based on your production fit, not a single manufacturer's lineup. That independence matters when you are making a capital equipment decision that will shape your shop's output for the next decade.

ATC Performance Depends on What's in the Magazine: Tooling Matters

A 10-position ATC loaded with generic router bits will underperform a 6-position ATC loaded with purpose-selected premium tooling. The magazine is only as good as what is in it.

For high-mix cabinet and millwork production, your ATC magazine should include compression bits for clean double-sided cuts in melamine and veneered panels, V-bits for edge profiling, ballnose cutters for 3D millwork profiles, and dedicated hinge-boring bits. Each tool should be matched to a specific operation in your nesting program. Centex Automation offers CTX Industrial tools specifically aligned to ATC-equipped CNC routers, so tooling recommendations come paired with your machine purchase.

On the maintenance side, Anderson America's WiFi sensor integration enables IoT-based ATC health monitoring, connecting tooling wear and mechanism condition to predictive maintenance alerts. Shops using this kind of remote monitoring reduce unplanned downtime by up to 30%. Anderson also backs their machines with 24-hour service response and a complete parts inventory, and Centex Automation provides regional service support including mechanical and electronic repair, preventative maintenance, spindle service, and software consultation.

When evaluating any ATC machine, ask about drawbar tension checks, tool holder socket inspection, carousel pivot lubrication, and alignment verification. These maintenance basics are critical to sustained accuracy and are rarely discussed in buying guides.

How to Choose the Right ATC Configuration for Your Production Goals

Start with three questions, in this order:

1. Product mix complexity: How many unique tools does your most demanding job require?
2. Changeover frequency: How many tool changes happen per shift?
3. Operator-to-machine ratio: How many operators do you want running how many machines?

If you are running standard nesting with 6 to 8 consistent tools and one operator, a static rack ATC like the Anderson Spectrum-M is the cost-effective industrial entry point. It gives you FANUC control, steel construction, and continuous-duty capability without paying for capacity you do not need.

If you are running high-mix cabinet, casework, or mixed millwork profiles with frequent style changes, a carousel ATC like the Stratos Pro delivers the chip-to-chip speed and tool capacity to keep pace. The sub-8-second changeover and optional automated material handling make this the workhorse for shops where product variety is the norm.

If you are running a dedicated MDF door line or high-volume panel program where spindle idle time is your primary constraint, the pendulum dual-zone process of the Exxact DUO is the highest-ROI configuration. Zero idle spindle time means every minute of your shift is productive cutting time.

The labor math ties it together: an ATC operator produces approximately 40% more output per 8-hour shift than a manual tool-change workflow. That gap widens as product mix complexity increases. With projections of up to 2.1 million unfilled manufacturing jobs by 2030, that 40% productivity advantage is not just an efficiency gain. It is a survival margin.

Ready to map your specific product mix and shift requirements to the right ATC configuration? Schedule a consultation at centexautomation.net, or call us directly. We will walk through your production goals, recommend the right machine and tooling package, and handle everything from financing to installation, training, and ongoing service. That is what a real equipment partner does.

 Ready to get it sorted? Contact Centex Automation for a production assessment. It is a peer conversation, not a sales pitch.
