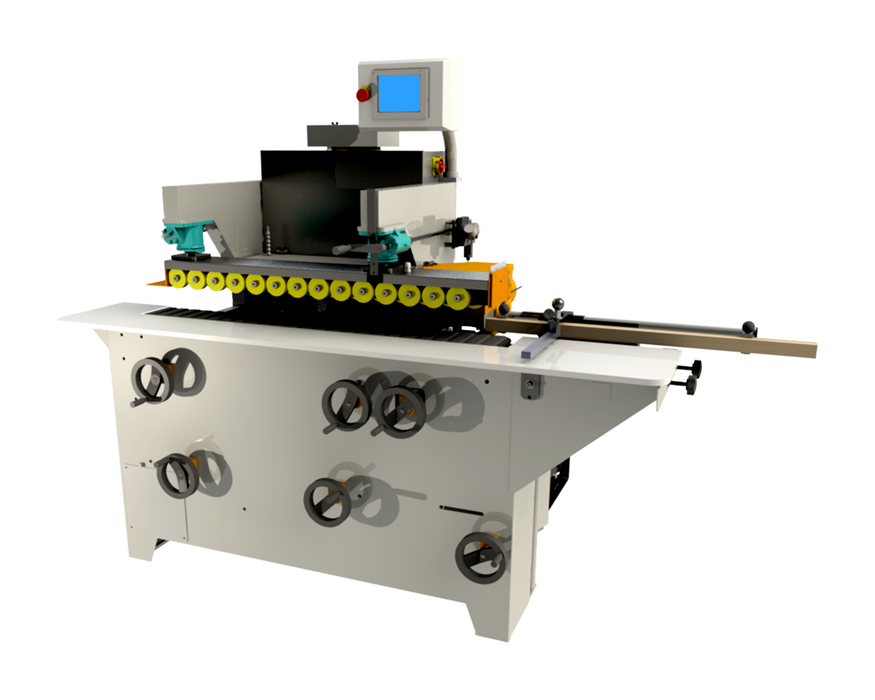

Pillar Machine | LARICK 410 Shaper/Sander
Designed and manufactured to give years of dependable service, the 410 will shape and sand a wide variety of workpieces. Features include:
- 6” wide feed chain with four staggered rows of hold down tires
- Front adjusting handwheels with digital readouts for horizontal and vertical shaper and sander positions
- AC inverter controlled variable speed for shaper, sanders, and feed featuring digital readouts for speed and load
- Floating heads are optional which allow shaping and sanding of arched panels.
The user friendly design makes setup and profile changeovers quick and easy.
CONTROL UNIT
– AC inverter controlled variable speed for Shaper, Sanders, and Feed
– NEW, easy-to-use touchscreen displays RPM and Load for each motor
– Shaper brake is standard for safer operation • Backlit LCD screen with adjustable height swivels to provide for a better view.
– 208-230 or 460 volt/3PH/50-60 HZ
SHAPER STATION & FENCE
71/2 HP Shaper Motor
• Variable speed from 4000 to 7000 RPM
• Horizontal and Vertical adj with digital position indicators • 11/4” spindle dia., 4” to 7” dia. cutter capacity • Optional: floating head for shaping arched panels • 5 adjustable preset fence positions
• “Chipbreaker” fence almost eliminates splintering without a messy, costly, 2nd hogging shaper
• Push bar to feed arched panels squarely
CONVEYER SYSTEM
– 6 inch wide heavy duty track with 4 staggered rows of hold down tires for part stability
– 3/4 HP feed motor, 0 to 20 FPM
– 1 41/2” wide table for product support
– Handles workpieces up to 13/4” thick
SANDER STATION
– Two sanding stations with 1” counter rotating spindles
– 2 HP motors, 400 to 1800 RPM variable speed
– Each station tilts forward 60o and backward 40o
– Horizontal and verticle adj. with digital position indicators
– Air jet cleaning/cooling devices at each station
– Will accommodate up to 9” diameter sanding wheels
– Optional: Floating heads for sanding arched panels
Machine Specifications
- SHAPER MOTOR: 7 1/2 HP 208-230V 3PH
- SHAPER SPEED: 4000 to 7000 RPM
- SPINDLE SIZE: 1 1/4 INCH
- FEED SPEED: VARIABLE TO 30 FPM
- CONVEYOR: 6 INCH WIDE
- MAX PART THICKNESS: 2 INCH
- FLOOR SPACE: 55” WIDE, 38” DEEP
Specifications
Pillar Machine LARICK 410 Shaper/Sander – Frequently Asked Questions
What is the Pillar Machine LARICK 410 Shaper/Sander?
The LARICK 410 is an American-made combined shaper and profile sander machine designed for shaping, finishing, and sanding detailed wood components, mouldings, and architectural parts in woodworking shops and manufacturing facilities.
Is the LARICK 410 made in America?
Yes. The LARICK 410 is manufactured in the United States by Pillar Machine, ensuring high build quality, durable components, and accessible domestic support and service.
What workpieces is the LARICK 410 designed for?
This machine is engineered for cabinet doors, trim, baseboard, casing, custom mouldings, and other contoured wood parts requiring shaping and sanding precision.
Who benefits most from the LARICK 410?
Cabinet shops, architectural millwork facilities, door manufacturers, and custom woodworking shops seeking an integrated shaping and sanding solution in a single machine.
How does the LARICK 410 combine shaping and sanding?
The machine integrates a precision shaping spindle with a contour sanding head, allowing users to shape profiles and then finish them with consistent sanding without transferring parts between separate machines.
Can the LARICK 410 replace separate shapers and sanders?
In many cases, yes. The integrated design reduces handling, saves shop floor space, and streamlines workflow compared to standalone shaper and sander setups.
What profiles can the LARICK 410 handle?
The LARICK 410 supports a wide range of profile shapes — from simple edges to complex architectural contours — depending on tooling and setup.
Does the machine improve production efficiency?
Yes. Combining shaping and sanding in one pass decreases cycle times, reduces handling, and improves throughput and consistency in production runs.
Is the LARICK 410 easy to operate?
The machine is designed for user accessibility with straightforward controls, making it suitable for shops with experienced operators as well as new users when properly trained.
What materials can be processed?
Solid hardwoods, softwoods, MDF, plywood, composite mouldings, and engineered materials used in cabinetry and architectural applications.
How does American manufacturing benefit long-term ownership?
Made-in-USA machines typically have stronger structural weldments, quality-controlled components, and faster parts/service support compared with lower-cost imported alternatives.
Does the LARICK 410 improve finish quality?
Yes. Integrated sanding promotes uniform surface texture and profile continuity, resulting in smoother finishes ready for stain or paint.
What safety features are included?
The machine includes guarding, emergency stop controls, and dust porting to support safe operation when used with proper collection systems and PPE.
Is maintenance accessible?
Routine maintenance points, such as belt tension adjustments and spindle access, are designed for accessibility to minimize downtime.
Can the LARICK 410 handle custom mouldings?
Yes. Its flexibility allows shops to process custom and specialty profiles with consistent precision, increasing product capability without additional machines.
How does the LARICK 410 compare to standalone equipment?
Standalone shapers and sanders require multiple setups and handling. The LARICK 410 consolidates operations, reduces cycle time, and improves repeatability for matched profile sanding.
Does the LARICK 410 improve labor utilization?
By integrating two processes into one machine, it reduces manual handling and allows skilled operators to focus on throughput rather than moving parts between machines.
Is this machine suitable for high-volume shops?
Yes. Built for continuous use with industrial components and American manufacturing standards, making it appropriate for production environments.
How does the LARICK 410 support dust management?
With integrated dust ports and recommended extraction equipment, the machine can help reduce airborne particles and keep work areas cleaner.
Why choose Pillar Machine for profile shaping and sanding?
Pillar Machine combines American manufacturing quality, robust design, and machine durability with strong local support, making it a dependable choice for long-term production equipment.
