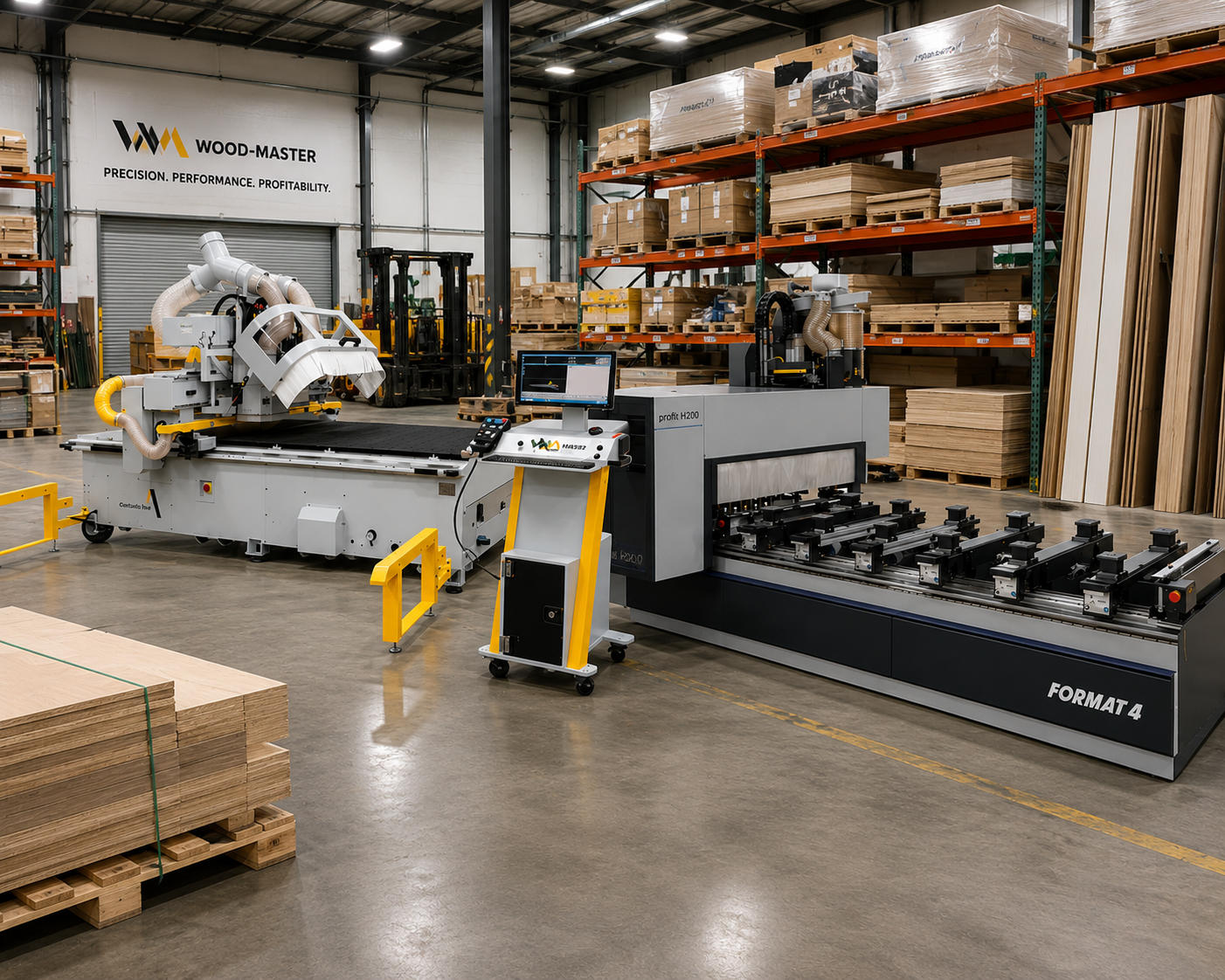

CNC Routers: Nesting, Flat Table, 3-Axis & 5-Axis Guide

Why CNC Routers Drive the $28 Billion Cabinet Industry

The U.S. cabinetry market generated $28 billion in 2023, and the global CNC router market sits between $780 million and $921 million as of 2025. Cabinet manufacturing accounts for 40% of all CNC tool usage in woodworking, with architectural woodwork claiming another 30%. If you are reading this, you are likely in one of those two categories.

The latest industry data is clear: productivity (rated 4.6 out of 5 by 139 surveyed North American manufacturers) and quality consistency are the top reasons shops invest in CNC routers. Labor replacement ranks last. That reframes the ROI conversation entirely. CNC and smart machining adoption in woodworking has risen nearly 38% in recent years, confirming this is an industry-wide shift, not a niche play.

This guide is built for production heads, operators, and CAD/CAM programmers who need to choose the right CNC router configuration for their specific workflow: nesting sheet goods, fixturing solid wood, or evaluating 3-axis versus 5-axis capability.

Nesting CNC Routers: Built for Sheet-Good Production

A nesting CNC router is configured to cut, drill, and groove full sheets of panel goods (plywood, MDF, melamine) in a single automated cycle. CAD/CAM software generates optimized nesting layouts that arrange parts across each sheet to maximize yield and minimize waste. For cabinet shops and casework manufacturers, this is the workhorse configuration.

The material savings are significant. Advanced nesting algorithms reduce raw material waste by up to 15% compared to traditional panel saws, and some operations report savings as high as 30%. In a survey by the Woodworking Machinery Industry Association, 70% of CNC router users confirmed improved waste reduction after adopting nesting workflows.

Throughput Benchmarks

Typical cycle time per sheet runs 8 to 15 minutes, depending on part complexity and drilling operations. That translates to 25 to 40 full sheets per 8-hour shift. For production heads building capacity plans, those numbers are the baseline to model against.

The made-to-order trend is accelerating this. Batch-of-one cabinet manufacturing demands rapid CAD-to-cut workflows, and only CAD/CAM-integrated nesting systems can deliver that flexibility without killing throughput.

Vacuum Hold-Down: The Most Underappreciated Variable

Vacuum performance makes or breaks a nesting operation, especially on small parts. Spoilboards must be fly-cut with a 0.5mm pass on both sides to open MDF porosity. Resurfacing should happen approximately every 20 to 25 sheets to prevent vacuum loss from accumulated kerfs and grooves. Skip this maintenance and you will watch parts shift mid-cut.

Zone isolation is equally critical. Industrial CNC routers offer 2 to 8 or more vacuum zones that concentrate full pump power on the active sheet area. This matters most for small nested parts that lack the surface area for adequate hold-down. A well-designed phenolic table with proper zone isolation will outperform a larger pump on a poorly zoned table every time. Bigger pumps are not the answer; smarter table design is.

Flat Table CNC Routers: Fixturing, Workflow, and Where They Win

Flat table CNC routers use dedicated fixtures, jigs, or vacuum pods to hold individual parts rather than processing full nested sheets. The distinction matters because the workholding method determines what you can cut and how precisely you can cut it.

Flat table configurations excel for solid wood components, shaped parts, and repeat production runs of identical pieces. When edge quality and surface finish require precise, stable fixturing, a flat table setup delivers tighter tolerances on complex profiles than a nesting table can.

The trade-off is operator involvement. Flat table setups require more hands-on fixturing, but that extra step prevents parts from shifting or tipping during cuts that would be problematic in a nesting cycle. Furniture producers running repeat solid wood parts, millwork shops producing profiled door frames, and composite fabricators cutting shaped panels benefit most from this configuration.

Flat table and nesting are not mutually exclusive. Some shops run both configurations, and combination tables with pod-and-rail systems offer flexibility to switch between sheet nesting and fixture-based work depending on the job.

3-Axis vs. 5-Axis CNC Routers: Choosing the Right Configuration

A 3-axis CNC router moves the cutting tool along the X, Y, and Z axes. It is the dominant configuration for flat-panel cabinetry, millwork, and nesting applications, handling 2.5D work (cutting, drilling, grooving sheet goods) with maximum cost efficiency.

A 5-axis router adds two rotational axes (A and B, or A and C), enabling the tool to approach the workpiece from virtually any angle. This eliminates re-fixturing for complex curved parts such as chair legs, stair components, and architectural millwork profiles.

The Counterintuitive Insight

For flat-panel cabinet production focused on 2.5D work, a well-configured 3-axis nesting router consistently outperforms a 5-axis machine on cost efficiency. A 5-axis investment is not automatically better. The application has to justify the machine.

Five-axis ROI becomes real when your production involves complex curved surfaces, solid wood furniture with compound angles, mold-making, multi-angle composite fabrication, or architectural millwork with profiles that require tool tilt to avoid collision.

TCPM: The Programming Concept That Trips Up New 5-Axis Operators

Tool Center Point Management (TCPM) ensures the cutting point stays perfectly aligned with the programmed path as the tool rotates through multiple axes. Mastering TCPM is a controller software and training consideration, not just a machine spec. Shops transitioning from 3-axis workflows need to budget for this learning curve.

Five-axis prices are dropping, making the decision more relevant for mid-size shops. Only 39% of woodworking manufacturers plan to increase capital spending in 2026, and most expect to invest under $250,000. That makes the 3-axis versus 5-axis decision a total cost of ownership question, not a features race. Match the machine to your production mix, not to a spec sheet.

Spindle Sizing and Durability: The Spec That Determines Your Throughput

Industrial CNC router spindles operate between 10,000 and 30,000 RPM. RPM alone does not tell the full story. Spindle kW selection must match your production intensity, not just the material you are cutting.

Here is the sizing framework we use:

• 3.0 kW: Light production, part-time use
• 4.5 to 6.0 kW: Continuous full-shift production
• 7 kW and above: 24/7 industrial-scale operations
• 6 to 9 kW ATC spindle: Recommended specifically for kitchen cabinet manufacturing

Undersizing a spindle is one of the most expensive mistakes a cabinet shop can make. An underpowered spindle strains during full-depth cuts, generates excess heat, accelerates tool wear, and produces rougher edges. It is a leading cause of unplanned downtime.

An Automatic Tool Changer (ATC) is a cycle time multiplier for cabinet production. Minimizing tool change interruptions is one of the highest-leverage optimizations in any nesting workflow.

Spindle maintenance deserves more attention than it typically gets. Proactive vibration monitoring can prevent multi-day unplanned downtime events. Early warning signs of bearing wear include increased noise, vibration at speed, and surface finish degradation. Centex Automation's vertically integrated service model, covering installation, training, maintenance, and repair, directly addresses the spindle durability and downtime risk that production cabinet shops running two or three shifts cannot afford to ignore.

Controller Software and the Operator Learning Curve

The dominant controller platforms in industrial woodworking CNC routers are Syntec, Fanuc, and OSAI. Each has a distinct interface philosophy, post-processor ecosystem, and CAM software compatibility profile. The controller you choose shapes your shop's daily workflow as much as the machine itself.

Controller software learning curves are a top operational friction point. Training a CNC programmer to shop-floor proficiency commonly takes 3 to 4 years via apprenticeship, or approximately 4,000 hours over 2 years in accelerated programs. Employee training is the woodworking industry's number one planned investment priority in 2026, surpassing every machinery category. If you are concerned about onboarding complexity, you are not alone.

The urgency is compounding. More than 25% of skilled tradespeople in woodworking are nearing retirement age, and fewer young workers are entering the trades. Shops can no longer rely on experienced operators to absorb controller complexity. User-friendly interfaces and strong dealer onboarding matter more than ever.

Before selecting a controller platform, evaluate post-processor support, CAM software compatibility, and dealer-provided software training. These factors are as important as any mechanical spec. Centex Automation provides brand-agnostic recommendations, post-processor support, and CAM consultation as part of our dealer value proposition, specifically for shops navigating this decision.

How to Choose the Right CNC Router Configuration for Your Shop

Match the machine to the work, not the other way around:

• Flat-panel cabinet and melamine casework: 3-axis nesting router with ATC and zone-isolated vacuum table
• Solid wood furniture with compound angles: 5-axis flat table configuration
• Mixed millwork shop: Evaluate combination pod-and-rail setups or dual-configuration options

Spindle kW, vacuum table design, and controller software are as important as axis count in determining real-world throughput. Buyers who focus only on axis count often end up with a machine misconfigured for their actual production mix.

With most buyers investing under $250,000 over three years, total cost of ownership must be modeled before purchase, not after. That includes tooling, spoilboard replacement, training, and maintenance. The nesting yield factors that silently erode sheet utilization (spoilboard condition, vacuum zone design, and toolpath sequencing) deserve as much scrutiny as the nesting software algorithm itself.

If you are evaluating CNC routers for your operation, we welcome a conversation about your production goals. That is how we work at Centex Automation: production goals first, machine recommendation second. Reach out for a consultation built around your shop floor, not a sales pitch.
