By Centex Automation Editorial Team
A full schedule of cabinet jobs can put pressure on very different parts of a shop. One manufacturer needs more identical shelves cut before lunch. Another needs custom cabinet sides sized, drilled, and grooved without moving every part through several setups.
That distinction drives the beam saw vs. CNC nesting router decision. For repetitive rectangular panel breakdown, a pressure beam saw deserves a close look. For varied components that need routing and face machining, nesting can consolidate operations. The right investment depends on which process increases your output of acceptable, completed parts.

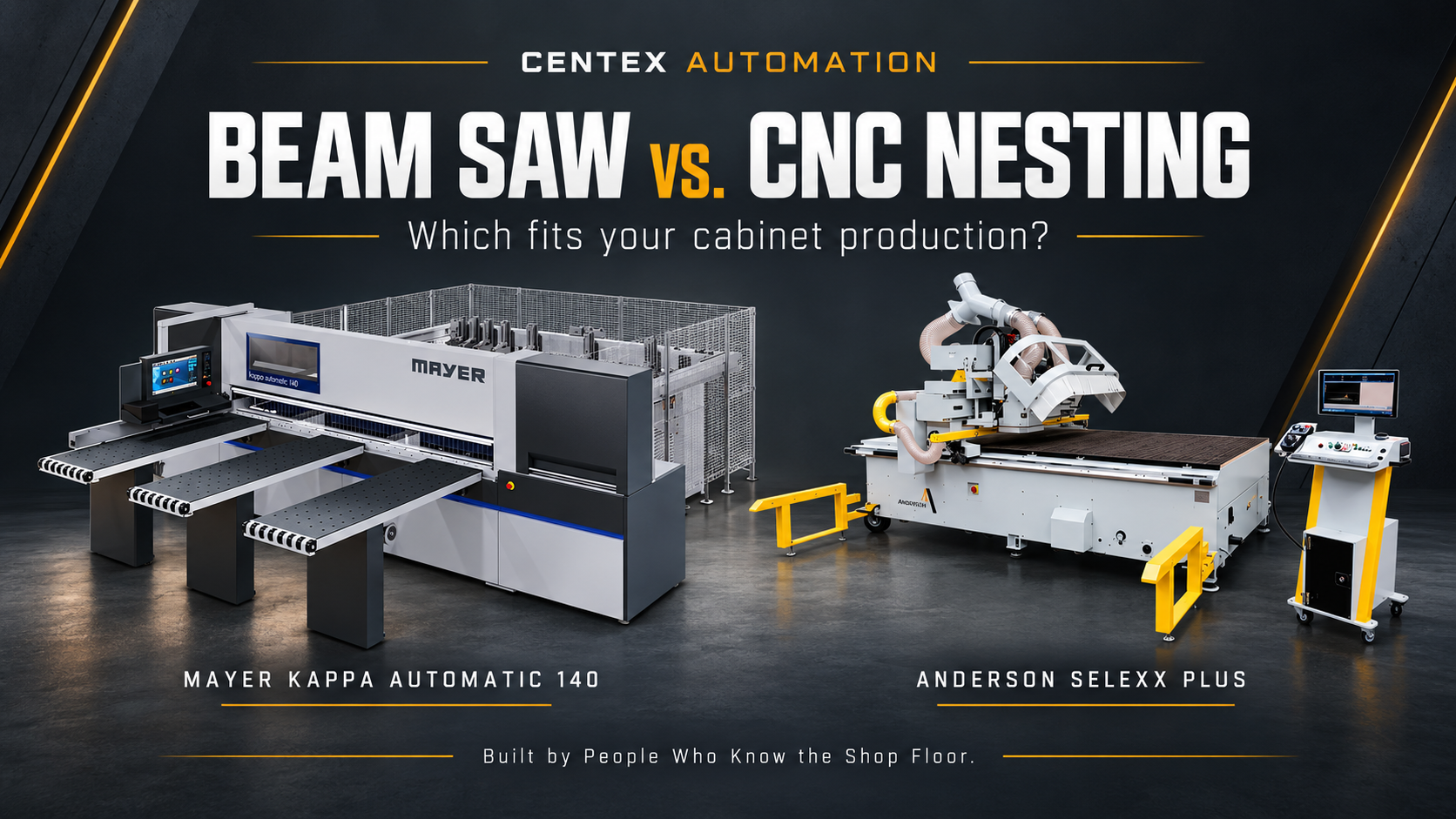

Here, we compare the Mayer kappa automatic 140 pressure beam saw with the Anderson Selexx Plus CNC router, then show how to evaluate them against your production mix.
Two machines, two approaches to panel production
Mayer kappa automatic 140: dedicated panel sizing
The Mayer positions and clamps panel material for straight saw cuts. Its main blade and scoring unit support clean sizing of surfaced panels, while air cushion tables assist handling. Centex lists a 500 mm main blade, 139 mm blade projection, and cutting-length configurations extending from 3,200 to 5,800 mm. These are machine specifications, not a finished-parts-per-shift rating. View the Mayer specifications.
For a production planner, its strongest use case is repeatable rectangular work that can be grouped into efficient cutting batches. Where compatible sheets share a cutting pattern, approved stack cutting can multiply the output of a cutting sequence. The permitted stack must be established for the actual machine, material, tooling, and clamping arrangement; blade projection alone does not establish usable stack height.
Anderson Selexx Plus: panel breakdown plus machining
The Selexx Plus uses a flat vacuum table and CNC-controlled tooling to machine parts from sheet material. Centex identifies routing, drilling, grooving, and pocketing among its applications. The listed configurations include different table sizes and drilling arrangements, so the quotation should specify the equipment needed for your parts. Explore the Selexx Plus.
Anderson lists a multizone table, ride-along tool changer, and provisions for material-handling upgrades. Its published table options include 2,500 × 1,250 mm, 3,100 × 1,550 mm, and 3,750 × 1,550 mm. Loading, offloading, and labeling options should be selected around the intended workflow. See Anderson’s Selexx configuration information.
Side-by-side production comparison
The production-fit judgments below are workflow analysis, not results from a timed test of these two machines.
| Production consideration | Mayer kappa automatic 140 beam saw | Anderson Selexx Plus CNC nesting router |
|---|---|---|
| Primary role | Straight-line sizing of panels and approved panel stacks | Sheet nesting with routing and applicable drilling or pocketing |
| Strongest job profile | Repeated rectangular shelves, sides, tops, bottoms, and blanks | Mixed cabinet parts, changing dimensions, shaped parts, and components requiring face machining |
| Batch strategy | Group compatible material and patterns to exploit repeated cuts | Combine varied parts into programmed sheet layouts |
| What happens after cutting? | Parts needing holes, pockets, or contours move to a suitable machining process | Some machining can be completed before unloading; additional operations depend on part access and equipment |
| Workholding question | Can the proposed stack be securely clamped and cut to the required quality? | Can every part, especially small pieces, remain secure throughout its toolpath? |
| Material-yield question | How efficiently does the cut plan use sheets and recover useful remnants? | How efficiently does the nest accommodate grain, cutter spacing, margins, and workholding? |
| Labor question | How much time goes into loading, turning strips, sorting, labeling, and downstream machining? | How much time goes into loading, unloading, sorting, spoilboard care, and remaining machining? |
| Key dependency | Adequate downstream drilling, edgebanding, and assembly capacity | Reliable CAD/CAM output, tooling strategy, vacuum workholding, and part identification |
| Best demonstration metric | Accepted parts through the required production route per staffed shift | Accepted parts through that same production route per staffed shift |
When the Mayer is the stronger production fit
Consider a casework manufacturer running a repeat order of standard-width cabinets. Many components share dimensions, material, thickness, and grain direction. The shop already has reliable drilling capacity and an edgebander that needs a steadier supply of sized parts.
Our production assessment: this is a strong reason to evaluate the Mayer first. Concentrating rectangular breakdown at the saw can support the existing division of work between cutting and machining.
The qualification is downstream capacity. A cart full of accurately sized panels is valuable only if those panels move toward completed cabinets. If the drilling station is already overloaded, additional saw output may increase the queue without increasing shipments.
Before committing, ask: What will consume the additional parts, and at what rate? Time the full route for a representative batch, including transfers and queues. Confirm whether larger cutting batches help scheduling or simply create more work in process.
When the Selexx Plus is the stronger production fit
Now consider a shop producing several custom kitchens or commercial interiors at once. Cabinet widths change, some panels need toe-kick notches, others need pockets or grooves, and repeated handling consumes skilled labor.
Our production assessment: the Selexx Plus deserves close attention when it can combine operations that currently require separate setups. Nesting is a process that combines panel cutting and boring on a solid-table machining center; the amount of work consolidated depends on the tools, programming, and part requirements. Read the manufacturer explanation of nesting.
Define the handoff accurately. A nested part may still require underside machining, edge drilling, edgebanding, or other processing. Confirm how those operations will be performed on the proposed configuration. A reduction in setups is useful only when the resulting parts meet the next station’s requirements.
Also establish how much machine time your parts demand. A layout with extensive pocketing is a different production load from a sheet containing mostly rectangular cutouts. Use your actual programs to determine whether the proposed Selexx configuration meets your shift target.
Material yield: compare actual layouts
Neither technology should receive an automatic win on sheet utilization. Compare both methods using the same order, sheet sizes, material grades, grain rules, and acceptable remnant policy.
For the saw, examine the cutting sequence and useful leftovers. For the router, examine cutter spacing, edge margins, workholding allowances, and the consequences of mixing parts from different jobs.
A tightly packed layout may look attractive while making sorting more difficult. A large remnant may look like waste while remaining useful for tomorrow’s order. Agree on what counts as recovered material before comparing yield.
Record purchased sheets, accepted parts, unusable scrap, and identified reusable remnants. That creates a more useful material comparison than a software percentage viewed in isolation.
Labor and downstream flow can decide the result
Count every touch between sheet storage and assembly: loading, moving, turning, labeling, sorting, transferring, and reworking parts. Include support time even when the machine operator is occupied elsewhere.
For the Mayer, ask which optimization, barcode labeling, and loading features are included. Felder describes optional labeling and available material-handling arrangements, but the quoted package should establish what will be installed. Review Mayer’s handling and software features.
For the Selexx, compare a manually handled configuration with the proposed loading or offloading package. Automation is most useful when the people and processes receiving the parts can keep pace.
Check the edgebander as well. Pre-drilled nested panels can require suitable tracing arrangements where holes lie near the edge. This is a downstream compatibility question to resolve during the production review. See the explanation of pre-drilled panel tracing.
Compare cost per acceptable part
A useful operating comparison is:
Cost per acceptable part = allocated material, labor, tooling, utilities, maintenance, software, and equipment costs ÷ acceptable parts produced.
Use the same accounting basis and production endpoint for both alternatives. Include all required stations and labor. If one route produces sized blanks and the other produces drilled and routed components, bring both to a common completion point before comparing them.
Keep equipment economics separate from the question of achievable demand. Extra capacity earns its keep when the shop has profitable work to fill it and can complete that work downstream.
Your investment review should include installation, extraction, electrical supply, compressed air, vacuum requirements where applicable, training, initial tooling, software integration, and material handling. Ask Centex to discuss financing and service needs alongside the machine configuration.
Bring three real jobs to the demonstration
Use a repeat production order, a typical mixed cabinet job, and a difficult job containing small parts or demanding machining. For each, establish the same quality standard and record:
-
Total elapsed time to the agreed completion point.
-
Staffed labor time across every required operation.
-
Accepted parts, rejects, and rework.
-
Sheets consumed and reusable remnants recovered.
-
Changeover, labeling, handling, and cleaning time.
-
Remaining downstream work and the queue it creates.
Do not translate saw-carriage speed or router rapid-traverse speed directly into production output. Neither figure includes the complete job.
For a larger plant, this evaluation may support both technologies: a saw for repeat rectangular work and a nesting router for components that benefit from flexible machining. That decision should follow the workload and capacity analysis.
