RazorGage | RazorOptimal Pocket Hole
Optimizing Saw System With Pocket Hole Drilling And Cabinet Face Frame Scribing

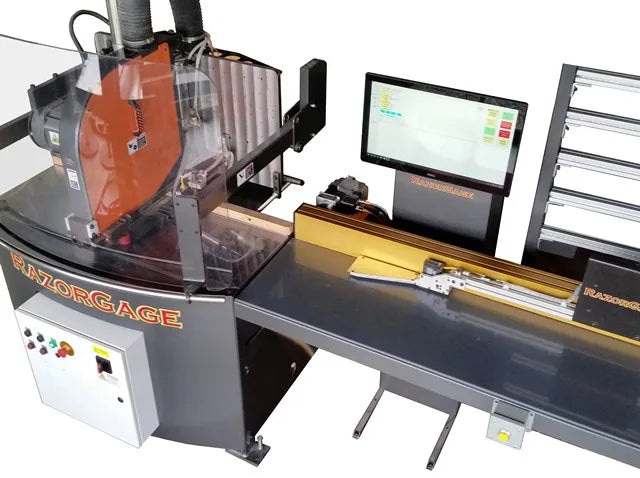

RazorGage produces both a standard RazorOptimal optimizing saw and an industrial pocket hole machine option. With the RazorOptimal pocket hole drilling saw, face frame parts come off the machine ready for assembly making this a great tool for cabinet making.
The RazorOptimal programmable saw system with the industrial pocket hole machine option is just one of our many professional woodworking tools. It is fully customizable and capable of transforming your cutting operation. With the precision of our RazorGage RG3 Automatic Saw Measuring System and the power of our pocket hole drilling down-cut saw, we created a highly accurate, optimizing saw system to streamline your processes unlike any other pocket hole drilling machine on the market.
The RazorOptimal pocket hole cutter features specialized crayon-defecting technology, enabling cut optimization and minimizing the amount of good stock going to waste while attempting to get rid of defective spots. First, the operator marks defects on the material. Then, the saw system scans the material for crayon marks and optimizes remaining parts to fit into the defect-free areas. This automatic defect detection feature means avoiding splits, knots and other wood defects without wasting quality materials.
Using the RazorOptimal Programmable Pocket Hole Drilling Machine
To begin using this optimizing saw with a pocket hole drill, the operator needs to import custom cutlists or use the RazorOptimal software to create cut settings. Once the appropriate cutlist is selected, the operator marks the defects with crayon and the automated pocket hole drilling saw does the rest!
The saw system scans the material for defects and automatically optimizes all cuts to fit within defect-free areas of your material, maximizing the usable area. Then, the pocket hole drilling saw system automatically advances, cuts lineal stock, drills pocket holes, scribes face frame layout lines and prints the part information directly on your material.
Making Cabinet Face Frames With The Razoroptimal
If you’re in the market for a cabinet saw, the RazorOptimal Pocket Hole is a wonderful option that can take your woodworking to the next level. It has easy-to-operate cutting systems that improve quality and productivity for cabinet manufacturing.
Pocket Hole Drilling and Face Frame Scribing With the RazorOptimal
Two main features set this RazorOptimal saw system apart from our standard RazorOptimal unit: pocket hole drilling and face frame layout scribing.
If you purchase the RazorOptimal with the pocket hole drilling option, the saw system will be equipped with a 3-spindle pocket hole drill gear drive spindle cartridge located to the left and right of the main saw blade. Drill up to 2 pocket holes at a time, depending on your needs. Unlike other standalone pocket hole drilling machines, this feature is built right into the main saw system, maximizing efficiency and saving you the cost of purchasing additional equipment.
Face frame layout scribing is another feature unique to the RazorOptimal with pocket hole drilling option. This optimizing pocket hole saw system can produce enough face frame parts for 30 face frames per hour.
Two days of installation and training are included with the purchase of all RazorOptimals (US or Canada only).
Additional RazorOptimal Pocket Hole Saw Features
- Windows Tower PC operation on a large, color hi-resolution touchscreen monitor.
- Easy to use software with room to store thousands of cutlists. Optimize and sort cutlists into thousands of groups according to multiple criteria.
- Optimized defect detection technology maximizes usable material between crayon marked defects
- Automatic top, left and right intelligent clamping
- Paper label printing or printing directly on material
- Part length accuracy varies with application but +/-.005" is possible
- Optional RazArray sorting light grid can be added to further improve operational efficiencies and reduce mistakes
Optimizing Your Pocket Hole Machine Software
Our industry-leading software is powered by Microsoft Windows, so networking and file sharing is seamless between the RazorOptimal software and other PCs in your office, home, or shop.
The RazorGage programmable pocket hole machine software is based on a rapid development platform, and we are constantly evolving and improving it to meet the needs of our customers. It is also customizable and can be adapted to suit a variety of applications and projects.
Specifications
RazorGage RazorOptimal Pocket Hole System — Frequently Asked Questions
1. What is the RazorGage RazorOptimal Pocket Hole System?
The RazorOptimal Pocket Hole System is a fully integrated optimization and cutting platform that processes cutlists, optimizes material yield, automatically cuts parts to length, marks components, and drills pocket holes for face frame production.
2. Where is the RazorOptimal system manufactured?
The system is proudly manufactured in America in Iowa by RazorGage.
3. What makes this system different from a standard chop saw setup?
Unlike manual cutting stations, the RazorOptimal system reads digital cutlists, optimizes board usage, performs automated cutting, marks parts, labels components, and drills pocket holes in a single integrated workflow.
4. What does “optimization” mean in this system?
The system analyzes incoming cutlists and calculates the most efficient cutting sequence to maximize material yield and minimize waste.
5. Can it detect material defects?
Yes. Operators can identify and mark defects in boards, and the optimization software adjusts cut placement to avoid those defect areas.
6. Does it process digital cutlists?
Yes. The system imports cutlists and automatically sequences cuts based on programmed optimization parameters.
7. Does the system automatically cut parts to length?
Yes. It integrates with RazorGage positioning and saw systems to automatically position material and execute precision length cuts.
8. Can it mark parts during processing?
Yes. The system can mark components for identification, assembly reference, or workflow tracking.
9. Does it label parts?
Yes. Integrated labeling capability allows parts to be tagged for downstream assembly and production tracking.
10. Can it drill pocket holes automatically?
Yes. The system integrates automated pocket hole boring for face frame components, eliminating separate manual drilling stations.
11. What types of parts is this system ideal for?
It is ideal for face frame components including rails and stiles used in cabinet manufacturing.
12. How does it improve face frame production efficiency?
By combining optimization, cutting, marking, labeling, and pocket hole boring into one process, it eliminates redundant handling and dramatically reduces labor time.
13. Does it reduce labor requirements?
Yes. Automation reduces manual measuring, marking, drilling, and sorting tasks.
14. Does it reduce material waste?
Yes. Advanced optimization software improves yield and reduces scrap.
15. Is the system scalable?
Yes. The RazorOptimal platform is modular and scalable within the RazorGage proprietary ecosystem.
16. Does it integrate with non-RazorGage systems?
No. RazorGage systems are designed to operate exclusively within the RazorGage ecosystem to ensure accuracy, compatibility, and reliability.
17. Is it suitable for high-volume cabinet shops?
Yes. It is designed for production cabinet shops seeking to automate and standardize face frame processing.
18. How does it improve consistency?
Automation ensures consistent cut lengths, pocket hole placement, labeling accuracy, and part identification.
19. Does it support lean manufacturing practices?
Yes. By consolidating multiple operations into one workflow, it reduces motion waste, minimizes rework, and improves production flow.
20. Is customer and technical support available?
Yes. Customer and technical support for RazorGage systems is available through Centex Automation. As with all equipment we sell, Centex Automation provides system consultation, installation guidance, application support, troubleshooting assistance, and long-term service partnership.
