RazorGage | RazorOptimal Cyclone
Optimizing Saw System OPTIMIZING SAW SYSTEM

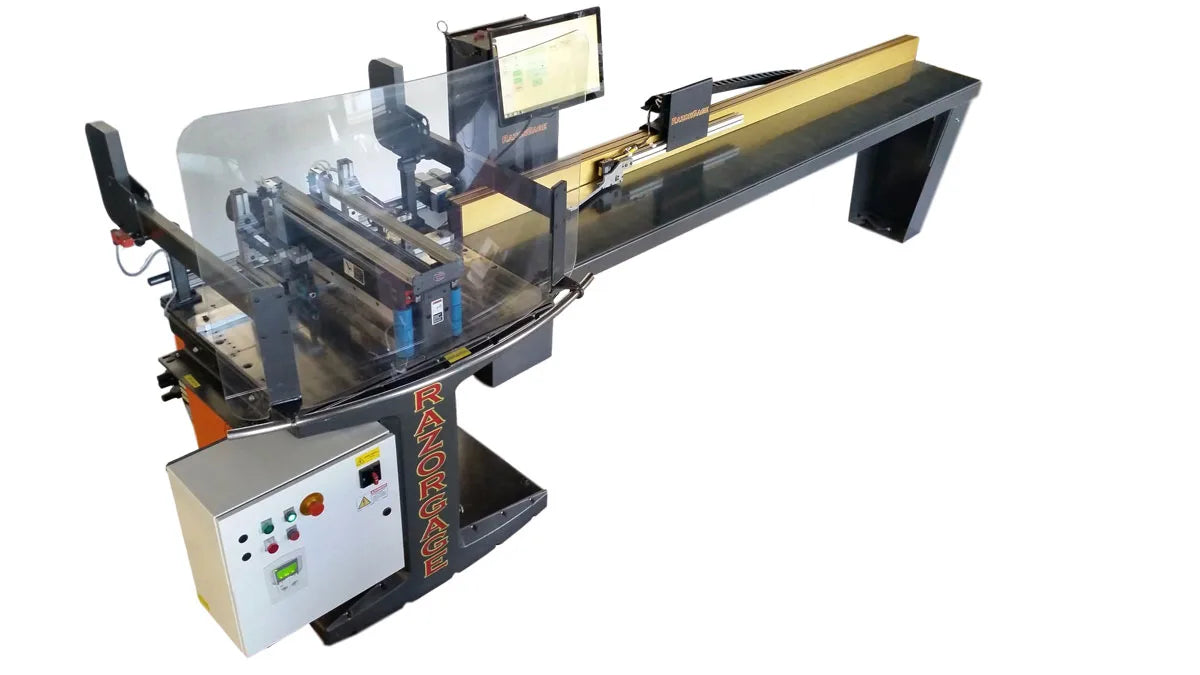

The RazorOptimal is a programmable optimizing saw system designed to make your manufacturing process faster, more accurate and more efficient. This powerful automated industrial woodworking tool is customizable and full of options that will revolutionize your cutting process. We combine the precision of our RazorGage RG3 Automatic Saw Measuring System with the power of our Cyclone 600 Upcut Saw, to create a highly accurate, automatic optimizing saw system at a great price point.
The RazorOptimal features specialized automated crayon-defecting technology. This industrial saw system scans the material for defects and optimizes remaining parts to fit into the defect-free areas. This automatic defect detection feature enables operators to quickly avoid splits, knots and other wood defects without wasting quality material.
Using the RazorOptimal Programmable Saw System
The operator simply imports premade cutlists or customizes cut settings using the optimizing saw software and marks any defects in the materials. The automated saw fence system does the rest!
This industrial saw system for woodworking scans the material for defects, optimizes remaining parts to fit into the defect-free areas, automatically advances, cuts lineal stock and prints the part information directly on your material. The optimizing saw software is designed to maximize usable space on materials so that you don’t end up with unnecessary waste.
The RazorOptimal Optimizing Saw System is unique in that it is available with either an upcut saw or it can be outfitted with our 18-inch down-cut precision saw, for customers wanting to automatically drill pocket holes and scribe face frame layout marks.
Two days installation and training are included with the purchase of all RazorOptimal programmable saw systems (US or Canada only).
RazorOptimal Industrial Saw System Features
- Windows Tower PC operation on a large, color hi-resolution touchscreen monitor
- Easy to use software with room to store thousands of cutlists.
- Optimize and sort cutlists into thousands of groups according to multiple criteria. Our software offers endless options and can accommodate your needs to successfully run your operation.
- Optimized material defect detection maximizes usable material between crayon marked defects
- Automatic top, left and right intelligent clamping
- Fitted with either a 500mm or 600mm blade
- Optional paper label printing or printing directly on material
- Part length accuracy varies with application but +/-.005" is possible
- Optional RazArray sorting light grid can be added to further improve operational efficiencies and reduce mistakes
Optimizing Saw Software
Our industry-leading software is powered by Microsoft Windows, so networking and file sharing is simple and seamless. Transfer files between your RazorOptimal programmable saw and any other PC in your office, home, or shop.
The RazorGage optimizing saw software is based on a rapid development platform, and it is constantly evolving to meet the needs of our customers. The software is robust and can be customized to suit a variety of operations and projects. When you purchase a RazorOptimal programmable saw fence system, our onsite installer will provide hands-on training for both hardware and software. Tutorials and other reference documents are available on our website. Soon after installation, you’ll be able to jump in and start using your new programmable saw to maximum effect.
Specifications
RazorGage RazorOptimal Cyclone — Frequently Asked Questions
1. What is the RazorGage RazorOptimal Cyclone?
The RazorOptimal Cyclone is a fully integrated cutlist optimization and automated length cutting system that combines RazorGage optimization software with the Cyclone upcut saw platform for high-precision production cutting.
2. Where is the RazorOptimal Cyclone manufactured?
The system is proudly manufactured in America in Iowa by RazorGage.
3. What does the RazorOptimal system do?
It processes digital cutlists, optimizes material yield, sequences cuts, positions material automatically, and executes precision cuts using the Cyclone upcut saw.
4. How does optimization improve production?
The system analyzes cutlists and calculates the most efficient cutting pattern to maximize board yield and minimize scrap.
5. Can the system account for material defects?
Yes. Operators can mark defects in incoming boards, and the optimization software adjusts cut placement to avoid those areas.
6. What is the benefit of pairing optimization with an upcut saw?
The Cyclone upcut saw provides stable, precise cutting while the RazorOptimal software ensures accurate positioning and sequencing for repeatable results.
7. What industries is the RazorOptimal Cyclone suited for?
It is ideal for cabinet shops, architectural millwork facilities, door and window manufacturers, and fabrication operations processing high volumes of linear stock.
8. What materials can it process?
The system is designed to cut wood, MDF, aluminum extrusions, and other linear materials commonly used in production environments.
9. Does it eliminate manual measuring?
Yes. Automated positioning replaces manual tape measuring, reducing variability and operator error.
10. Does it increase production speed?
Yes. Automated length positioning and optimized sequencing significantly increase throughput.
11. Does it reduce material waste?
Yes. Optimization software improves yield and reduces scrap compared to manual cutting methods.
12. Is it suitable for high-volume production?
Yes. The RazorOptimal Cyclone is engineered for continuous operation in demanding production environments.
13. Is the system scalable?
Yes. The RazorOptimal platform is modular and scalable within the RazorGage proprietary ecosystem.
14. Can it integrate with non-RazorGage automation systems?
No. RazorGage systems are proprietary and designed to operate exclusively within the RazorGage product line.
15. Does it support lean manufacturing initiatives?
Yes. By consolidating measuring, optimization, and cutting into one workflow, it reduces motion waste, rework, and downtime.
16. Does it improve part consistency?
Yes. Automated positioning and precision cutting improve dimensional repeatability across production batches.
17. Can it handle varying part lengths within a batch?
Yes. The system automatically adjusts positioning based on cutlist requirements without manual intervention.
18. Does it reduce labor requirements?
Yes. Automation reduces manual measuring, marking, and repositioning tasks.
19. Why choose RazorGage optimization systems?
RazorGage systems are American-made and engineered for precision, durability, and seamless integration within a unified measurement and cutting platform.
20. Is customer and technical support available?
Yes. Customer and technical support for RazorGage systems is available through Centex Automation. As with all equipment we sell, Centex Automation provides system consultation, installation guidance, application support, troubleshooting assistance, and long-term service partnership.
