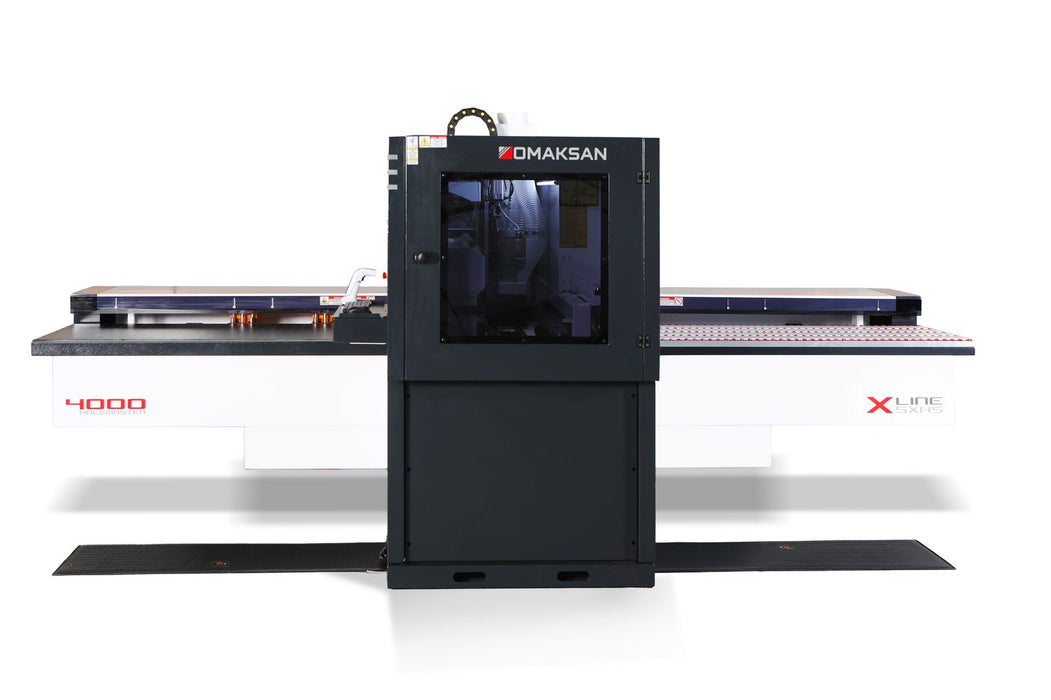

OMAKSAN HOLEMASTER | 4000 X Line HS

Mass-Production Drilling at a Price-Performance Benchmark

The Holemaster 4000 X Line HS is the entry point into Omaksan's 4000 series, engineered to eliminate downtime in furniture manufacturing. A high-performance drilling head with 8 vertical drills, 6 horizontal drills, and 1 saw blade, all driven by 3-axis servo technology, processes the top face and four edges with speed and precision. Automatic tool measurement and safety mat are standard.

Mass Production, Price-Performance Sweet Spot

The 4000 X Line HS is the entry point into the 4000 series, Omaksan's mass-production platform. The 1300 mm panel width handles full-size cabinet sides, modular furniture components, and most casework panels. The 3-axis servo drilling head processes the top face and all four edges with high speed and accuracy, while the 2.2 kW milling unit adds grooving and custom milling to the same operation.

Where the 1030 MC Plus is sized for compact shops, the 4000 X Line HS is built for shops where panels are larger and production volume is higher. Automatic tool measurement is standard, allowing the machine to measure each tool before use, eliminating manual tool offset entries and helping prevent operator-induced errors.

The safety mat is also standard. This pressure-sensitive floor mat pauses the machine if anyone steps into the work area, then resumes automatically when clear.

For furniture manufacturers stepping up from the 1030 MC Plus or moving from manual drilling to industrial CNC, the 4000 X Line HS hits the price-performance sweet spot of the Holemaster lineup.

The 4000 X Line HS is Right For You If…

• You work with panels up to 1300 mm wide regularly
• Your production volume needs the speed of 3-axis servo drilling
• You want automatic tool measurement to eliminate operator setup errors
• You don't need the extra milling power of the 4 kW Faster series
• Bottom-face drilling is rare or non-existent in your workflow

Features & Options

Standard Equipment and Available Options

The 4000 X Line HS ships with everything needed for mass-production drilling, grooving, and milling. Automatic tool measurement and safety mat are standard. Optional upgrades add ERP integration and Z-axis extension.

Standard Features

• Omaksan Works control software
• 3-axis servo-driven drilling head
• 8 vertical drilling spindles for top-face drilling
• 6 horizontal drilling spindles for edge drilling
• 1 saw blade for grooving operations
• 2.2 kW milling unit motor
• Automatic tool measurement to eliminate manual tool offset entries
• Safety mat with pressure-sensitive auto pause/resume
• Hardware compatibility: Minifix, Blum, hinges, shelf pins, dowels, rafix, Confirmat
• Unlimited panel length on the X-axis
• 1300 mm maximum panel width on the Y-axis
• Standard Z-axis: 40 mm, with 60 mm optional
• Top-face and 4-edge processing in a single setup

Available Options

• Z-axis extension from 40 mm to 60 mm
• Barcode reader for production integration with ERP and design software
