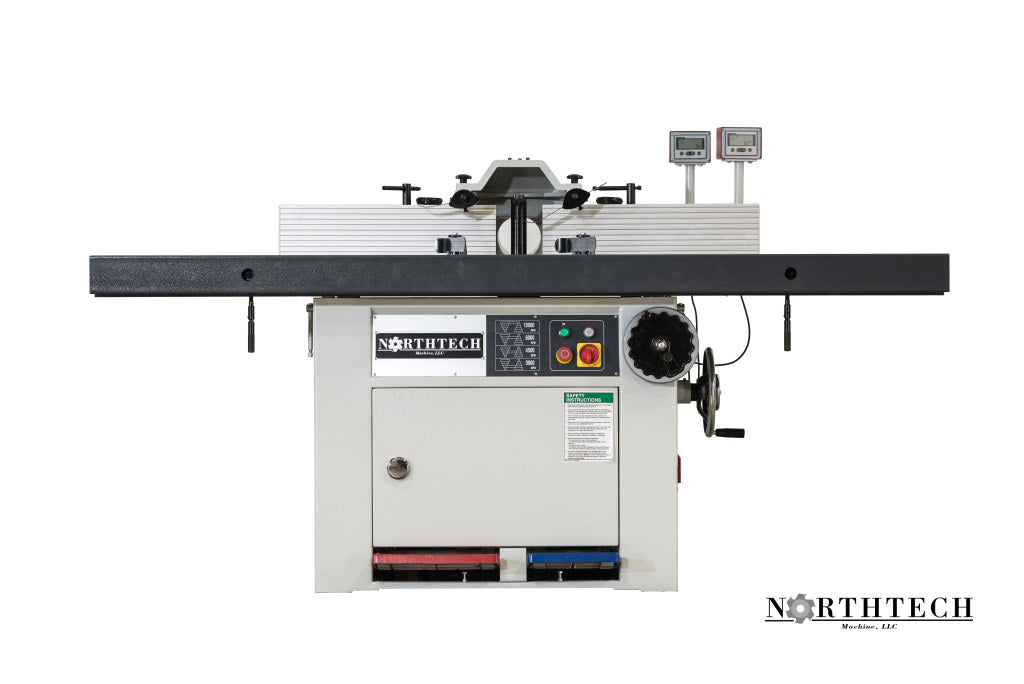

NORTHTECH MACHINE | NT-735LT SHAPER LONG BED WITH TILTING SPINDLE

The NT 735LT shaper is our heavy duty 735 series machine with an extended table. An excellent option when profiling longer product. The powerful 10hp interchangeable 4 speed spindle with a large stable base, foot operated brake for quick spindle stop and a foot operated lock for easy tool changes, provides excellent customer capability . The oversized precision ground table on solid steel cabinet provides stable vibration free milling.

MACHINE HP: 10 HP
VOLTAGE, FREQUENCY: 230/460 Volt 60Hz
PHASE: 3 Phase
AMP REQUIREMENT: 12/12.5 Amps
SPINDLE LENGTH: 6''
SPINDLE DIAMETER: 1-1/4''
SPINDLE RPM: 3000, 4500, 6000, 9500 RPM
ELEVATION STYLE: Manual Wheel Adjustment
ELEVATION SYSTEM: Quill Housing / Jack Screw
APPROVED ELECTRICAL PARTS: CE Approved Parts
DUAL VOLTAGE MOTORS: 230/460 Volt
CONTROL VOLTAGE: 110 Volt
PASS-LINE: 35''
VERTICAL TRAVEL: 6'' On Spindle
DUST COLLECTION REQUIREMENT: 681 CFM @ Extraction Points
