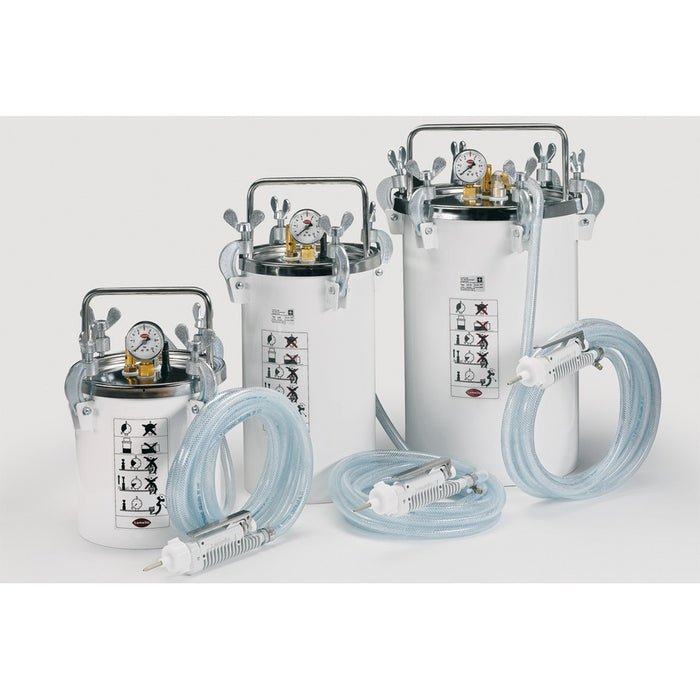

Lamello 530-692-002P-PK | LK-3P One shot glue system

The Lamello glueing-system combines ease of use and efficient glue application with minimal cleaning requirements.

The stainless steel pressure tank holds either 3, 5 or 10 kg of glue at a pressure of approximately 5 bars, or 72 p.s.i.. To start the glue application, you simply connect the desired nozzle to the glue pistol via the bayonet coupling. When finished, the nozzle can be flushed out in a shop sink and the front of the glue gun wiped clean. The LK glue applicators can be stored for weeks with the pressurized PVA glue in the system.

Benefits

• Stainless steel pressure tank guarantees long service life
• Minimal cleaning required; only pistol head and nozzles
• Only a single pump is required to expel the entire 3, 5 or 10 kg volume of glue, even over an extended period
• Multiple hose / pistol kits may be used on a single LK tank

Applications

• Fast glue application for biscuit or dowel connections
• Fast glue application to surfaces, edges, grooves or ridges
• Furniture and kitchen manufacturing, prefabrication, carpentry shops, mobile use on-site
• Complete and ready for use with standard scope of delivery
• Freely expandable

Size:

•  LK 3 285x340mm
• LK 5 285x465mm
• LK 10 360x530mm

Capacity:

• LK 3 3kg
• LK 5 5kg
• LK 10 10kg

Operating Pressure:

• 1 - 5 Bar
