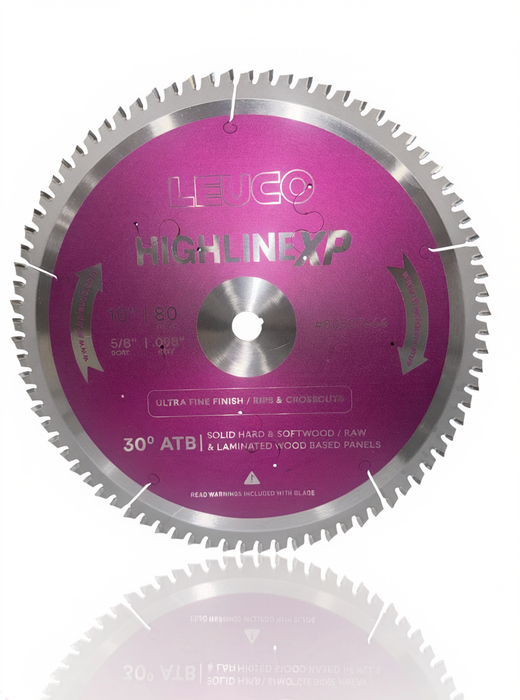

HighlineXP Carbide Sawblade for Ultra Fine Finish / Rips & Crosscuts
The HighlineXP Carbide Sawblade is your go-to everyday blade for clean, smooth cuts across fine finishes, ripping, and crosscutting. Built with premium carbide teeth and optimized tooth geometry, it delivers consistent performance, reduced tear-out, and long blade life.
Ideal for: hardwoods, softwoods, raw and laminated wood-based panels.
Why it works: smooth cuts, low vibration, and reliable performance for professional results — cut after cut. Fully re-sharpenable up to 8–10 times.
Product Details
| Applications | Ultra Fine Finish, Rips & Crosscuts |
|---|---|
| Cutting Edge | Carbide Grade HLB 06 |
| Machine Types | Table Saw, Miter Saw, Sliding Compound Miter Saw, Radial Arm Saw |
| Material Types | Solid Hard & Softwood, Raw & Laminated Wood-Based Panels |
Specifications
| Outer Diameter | 10" |
|---|---|
| Body Thickness (b) | 1.8mm |
| Bore Diameter (Ø d) | 5/8" |
| Cut Width (B) | 2.5mm |
| Number Of Teeth (Z) | 80 |
| Tooth Shape-Style | 30 degree ATB |
Specifications
Leuco HighlineXP Carbide Sawblade – Frequently Asked Questions
What is the Leuco HighlineXP Carbide Sawblade?
The HighlineXP is a Leuco carbide-tipped circular saw blade engineered for fine-finish ripping and crosscutting on woodworking saws.
What is this saw blade used for?
It is used for clean, splinter-controlled rip cuts and crosscuts in hardwoods, softwoods, and wood-based panel materials such as MDF, plywood, and melamine.
Who is this blade designed for?
It is designed for cabinet shops, millwork shops, custom woodworkers, and production facilities that require a high-quality finish on their saw cuts.
Is this a complete saw, or just the blade?
This is the saw blade only. It is a tooling component installed on a compatible saw; it does not include a saw, arbor, scoring blade, or accessories.
What types of saws is it compatible with?
It is intended for use on standard table saws, sliding table saws, panel saws, and similar woodworking saws that match the blade’s diameter, arbor, and recommended RPM. Confirm machine specifications before purchase to ensure correct fit.
Can this blade cut aluminum or non-ferrous metals?
No. The HighlineXP is engineered for wood and wood-based panels. Cutting aluminum or other non-ferrous materials requires a blade specifically designed for non-ferrous use, with a triple-chip tooth grind and appropriate hook angle.
Why does fine-finish geometry matter?
Fine-finish geometry produces cleaner edges, reduces tear-out and splintering, and minimizes the need for secondary sanding or trimming, which improves throughput and finished part quality.
What materials does it cut best?
It performs best on hardwoods, softwoods, plywood, MDF, particleboard, and melamine-faced panels.
What is included with this product?
The product includes the saw blade only. Mounting hardware, bushings, stiffeners, scoring blades, and saw machines are not included unless specifically listed in the product details.
What is not included?
Saws, arbor adapters, scoring blades, dado sets, blade stabilizers, sharpening services, and accessories are not included.
Can it be used as a replacement blade for an existing saw?
Yes, when the saw’s diameter, arbor size, kerf clearance, and RPM rating match the blade’s specifications. Verify the saw manufacturer’s recommendations before installation.
How should it be installed?
Install per the saw manufacturer’s instructions. Verify direction of rotation, ensure the blade is fully seated against the arbor flange, and torque the arbor nut to the saw maker’s spec. Always disconnect power before changing blades.
How do I extend blade life?
Use the correct feed speed and RPM for the material, keep the blade clean of pitch and resin, avoid cutting nails or staples, and have the blade sharpened by a qualified service when performance drops. Centex Industrial Tool can support resharpening and tooling service.
What are the benefits of choosing a genuine Leuco HighlineXP blade?
Leuco tooling is engineered for consistent finish quality, predictable life between sharpenings, and reliable performance on production woodworking equipment, which protects throughput and finish quality.
Does Centex Automation support this blade after purchase?
Yes. Centex Automation supports product selection, application guidance, replacement, and Centex Industrial Tool services such as sharpening and tooling support for compatible blades.
