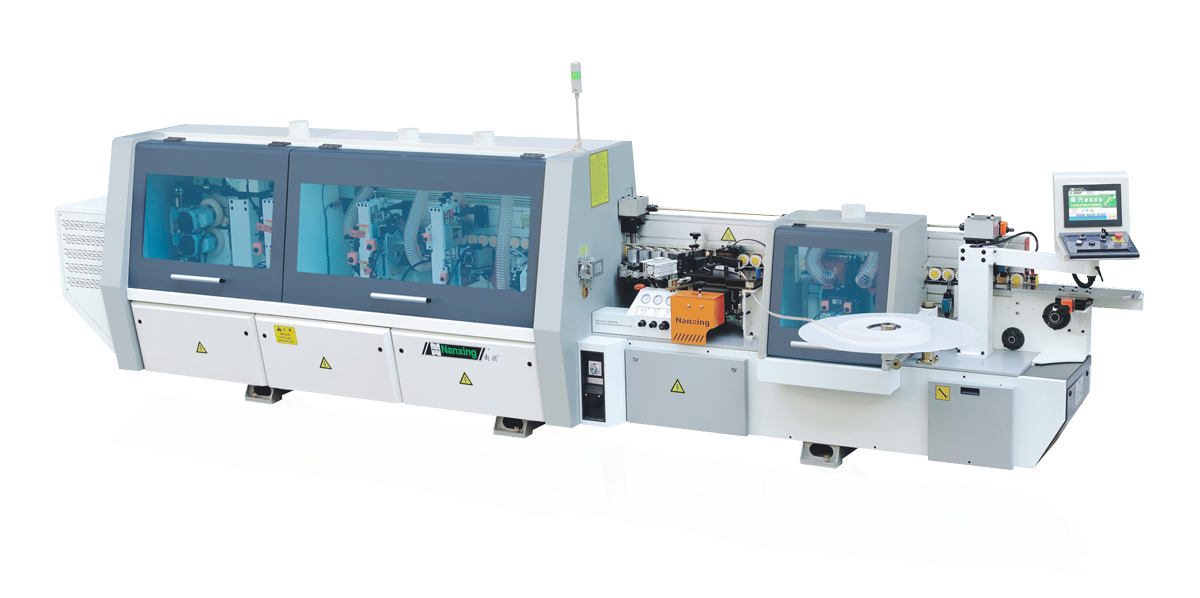

Giben | NB6J
Maximize Productivity ◼ Reliable ◼ Versatile
A heavy-duty edge bander made for production shops. A solid steel structure along with thick steel plate going from front to back of the machine that the stations mount too.
Speeds ranging from 16-24 m/min to produce parts when needed on time.
Stations included on the edge bander are: pre-mill, pre-heat, pre-melt glue pot, end trim, rough trim, fine trim, profile scraping, and buffing.
PC controlled with bar code reading capability and diagnostic monitoring system.
Stand-by mode when not in use to allow for quick restart.
|Panel Length||≥ 120 mm|
|Panel Width||≥ 80 mm|
|Min. Panel Size||120 x 80 mm|
|Panel Thickness||10-60 mm|
|Tape Thickness||0.4-3 mm|
|Feeding Speed||16/20/24 m/min|
|Power Supply||380 v; 50Hz|
|Air Pressure Required||0.7MPa|
|Operation System||7” Touch screen|
|Dust Collector||Φ 125mm x 4|
|Total Power||18 Kw|
|Approx. Weight||5,400 lbs|
|Overall Dimension||21’ x 4.75’ x 5.4’|
