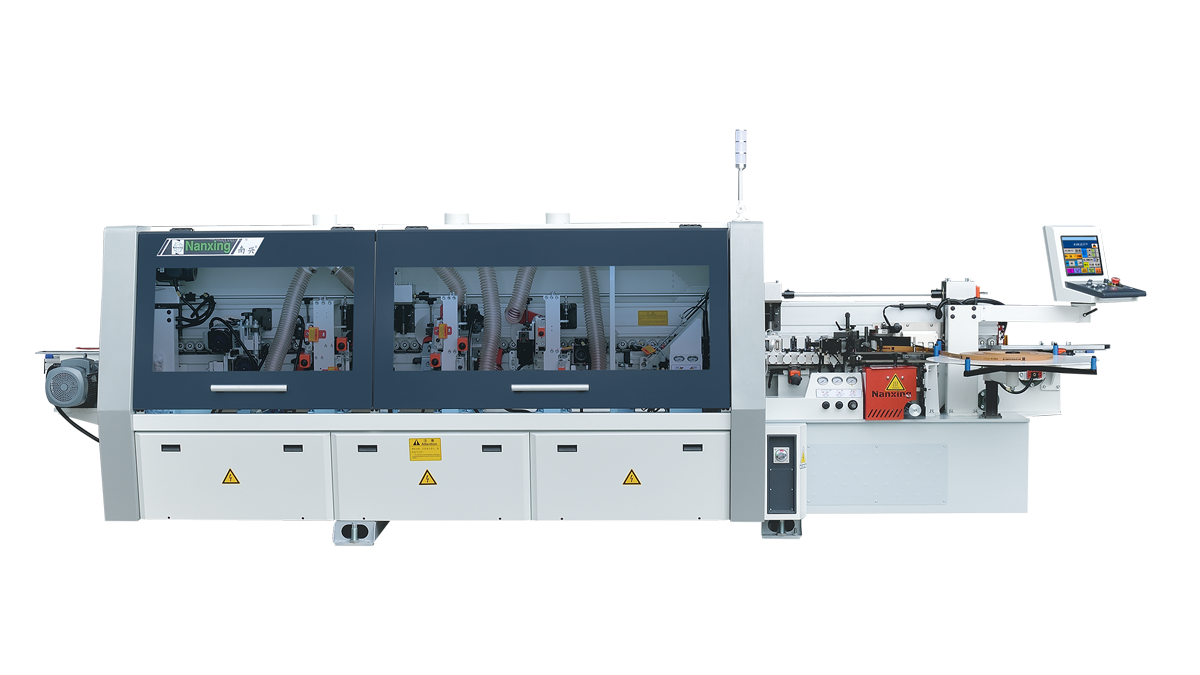

Giben | NB5J
Maximize Productivity ◼ Reliable ◼ Versatile
A heavy-duty edge bander made for production shops. A solid steel structure along with thick steel plate going from front to back of the machine that the stations mount too. Speeds ranging from 16-20 m/min to produce parts when needed on time.
Parts width as small as 30mm, allowing for the widest variety of parts.
Stations included on the edge bander are: pre-heat, glue pot, end trimming (rough & fine), buffing, and PC controlled bar code reading diagnostic monitoring system w/ stand-by mode capabilities.
|Panel Length||≥ 120 mm|
|Panel Width||≥ 80 mm|
|Min. Panel Size||120 x 80 mm|
|Panel Thickness||10-60 mm|
|Tape Thickness||0.4-3 mm|
|Feeding Speed||16/20/24 m/min|
|Power Supply||380 v; 50Hz|
|Air Pressure Required||0.7MPa|
|Operation System||7” Touch screen|
|Dust Collector||Φ 125mm x 4|
|Total Power||18 Kw|
|Approx. Weight||5,400 lbs|
|Overall Dimension||21’ x 4.75’ x 5.4’|
