CANTEK | S431 43" Wide Belt Sander
Dependable, consistent sanding results at an affordable price.
The Cantek S431 43″ Widebelt Sander is compact and versatile with a combination sanding unit for calibration and final sanding. The robust sanding unit and best of class design ensures optimum sanding results. Equipped with motorized thickness adjustment with digital thickness control for fast and accurate table adjustment.
Why Cantek S431 43″ Widebelt Sander?

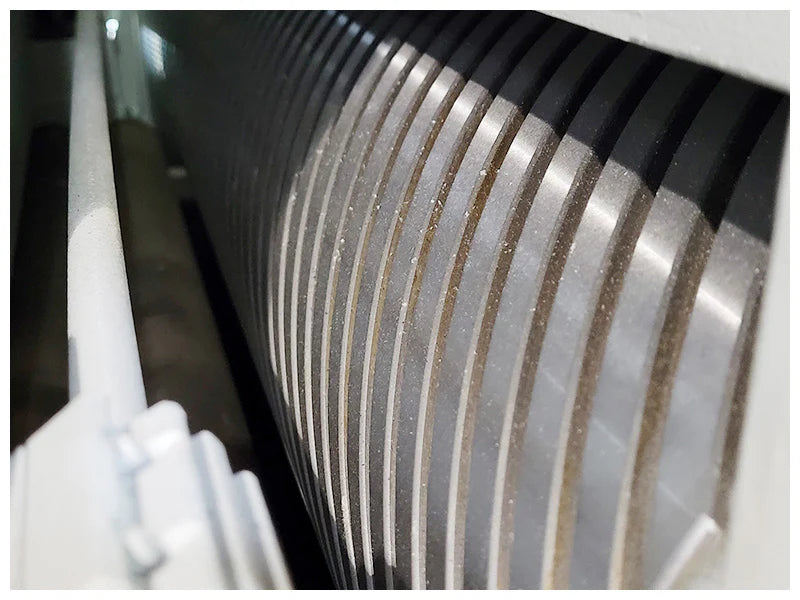

- Combination sanding unit with 5″ rubber contact drum and 2″ wide adjustable sanding platen for a wide range of sanding applications.
- Accurate digital thickness control with both Inch and Metric settings allows the operator to key in the desired thickness, and the table will automatically move into position
- Small footprint
- Variable feed speed for optimal sanding results
Key Advantages

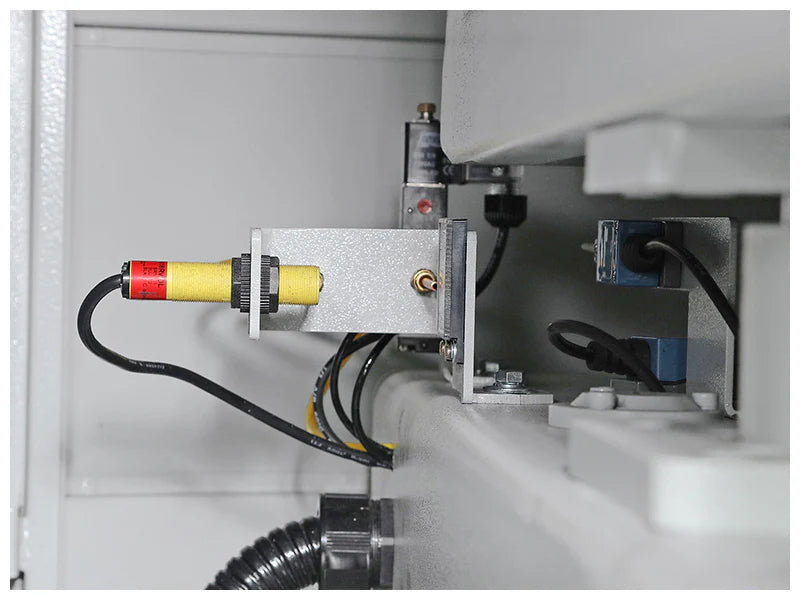

- Electronic belt tracking for optimum belt life and sanding results.
- Ammeter for load monitoring to ensure the proper amount of material is removed according to the selected grit.

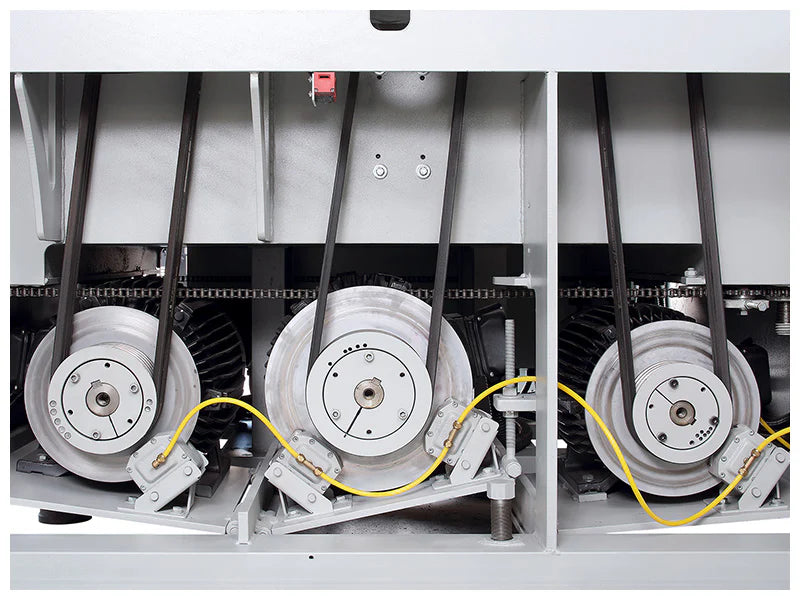

- Disc brake on the main motor allows for faster belt changes.
- Pneumatic belt tensioning with quick-release outboard support to facilitate fast belt changes.

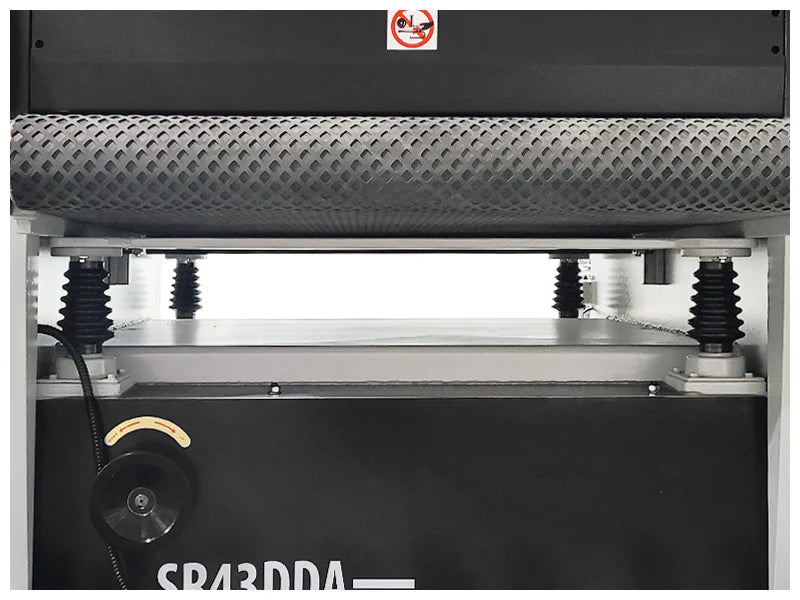

- Table raising jackscrews.
- Interlocks are located on all access doors.
Specifications
INCH |
METRIC |
|
Abrasive belt size |
43” x 60” |
1100 x 1524 mm |
Main motor |
20 HP |
|
Feed motor |
2 HP |
|
Table rise/fall motor |
0.25 HP |
|
Working width |
43″ |
1066 mm |
Minimum part length |
12.5″ |
320 mm |
Maximum thickness opening |
5.9″ |
150 mm |
Feed speed: variable |
15 to 60 FPM |
4 to 18 m/min |
Dust outlet |
4 @ 5” |
4 @ 125 mm |
Compressed air pressure |
PSI 60 |
3 Kg/cm2 |
Compressed air volume |
7 CFM |
0.2M3/Min |
Dust collection requirements |
2118 CFM |
3600 M3/HR |
Net weight |
2,288 lbs |
1,310 kgs |
Machine dimensions |
60” X 50” X 64” |
1525 x 1270 x 1630 mm |
Shipping weight |
3,328 lbs |
1,510 kgs |
Shipping dimensions |
52” X 64” X 76” |
1330 x 1640 x 1940 mm |
Specifications
INCH | METRIC | |
Abrasive belt size | 37” x 60” | 939 X 1524 mm |
Main motor | 15 HP | |
Feed motor | 1HP | |
Table rise/fall motor | 0.25 HP | |
Working width | 37″ | 930 mm |
Minimum part length | 12.5″ | 320 mm |
Maximum thickness opening | 5″ | 150 mm |
Feed speed: variable | 15 to 49 FPM | 4 to 15 m/min |
Pass line height | 37″ | 950 mm |
Dust outlet | 3 @ 4” | 3 @ 101 mm |
Compressed air pressure | PSI 60 | 4 Kg/cm2 |
Compressed air volume | 7 CFM | 0.2M3/Min |
Dust collection requirements | 1236 CFM | 2100 M3/HR |
Net weight | 1609 lbs | 730 kgs |
Machine dimensions | 50” X 52” X 66” | 1270 x 1335 x 1680 mm |
Shipping weight | 1829lbs | 830 kgs |
Shipping dimensions | 52” X 57” X 76” | 1330 x 1460 x 1940 mm |
Electrical requirements | 230/3/60 = 47 amps | |
CANTEK S431 43″ Wide Belt Sander – Frequently Asked Questions
1. What is the CANTEK S431 43″ Wide Belt Sander?
The CANTEK S431 is a 43″ (1100 mm) wide belt sander designed for high-capacity sanding of panels, doors, and flat stock in woodworking operations. It provides surface finishing and thickness control with production-oriented features.
2. What industries benefit most from the S431?
This machine is ideal for cabinet and casework shops, custom furniture manufacturers, millwork facilities, and panel processors requiring consistent surface preparation and thickness sanding.
3. What is the maximum sanding width on the S431?
The maximum sanding width is 43″ (1100 mm), accommodating standard panel widths used in cabinetry, casework, and commercial millwork.
4. What materials can be sanded on the S431?
The S431 is suitable for sanding plywood, MDF, particleboard, HPL/laminate surfaces, veneered panels, solid wood panels, and composite sheet goods.
5. Can the S431 sand solid wood panels?
Yes. The machine is capable of sanding solid wood, though feed speed and abrasive selection should be matched to the wood species and desired finish.
6. What is the sanding belt configuration?
The S431 typically uses a single abrasive belt system with adjustable speed and contact pressure designed for surface finish and thickness consistency.
7. What is the conveyor feed system like?

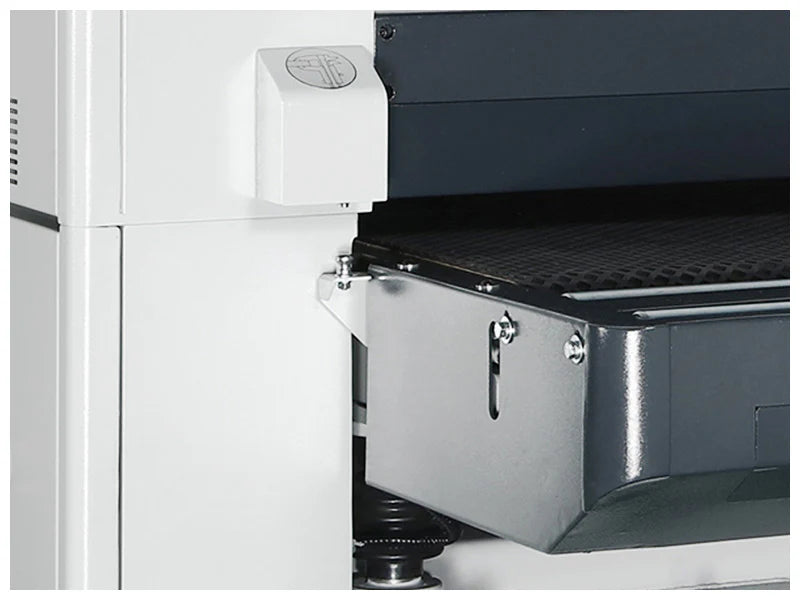

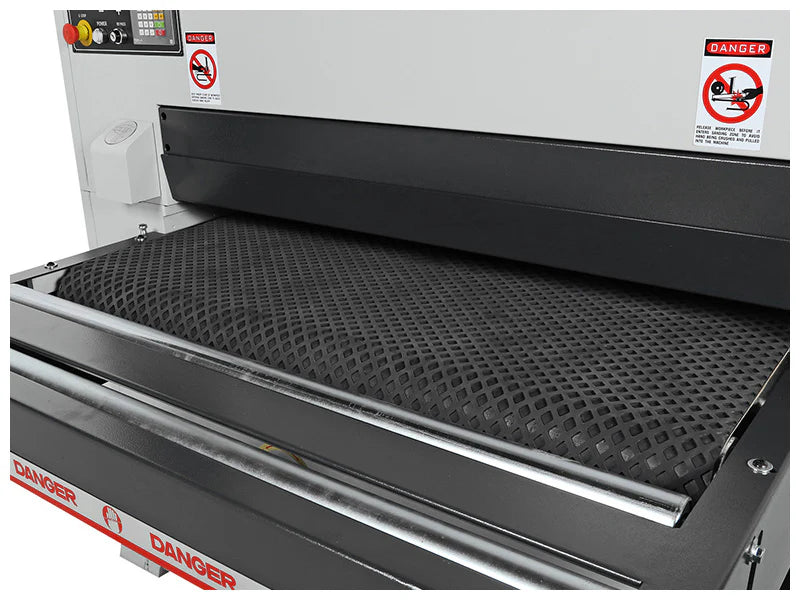

The S431 features a powered conveyor belt that feeds panels through the sanding head, supporting consistent speed and smooth material travel for uniform finish results.
8. How does the machine control feed speed?
Feed speed is adjustable via variable speed controls, allowing operators to dial in the preferred surface finish and removal rate for different materials.
9. Does the S431 have automatic tracking for the abrasive belt?
Yes. Automatic belt tracking helps ensure the abrasive stays centered on the platen, reducing maintenance and downtime.
10. What thickness range can the S431 handle?
The CS431 accommodates standard panel thicknesses found in cabinet, furniture, and millwork production — typically from thin sheet goods up through thicker substrate panels; exact minimum/maximum thickness depends on configuration.
11. How is dust collection handled?
The S431 includes dust hoods and ports designed to connect to central dust extraction systems, ensuring a cleaner work environment and better abrasive life.
12. What controls does the operator use?

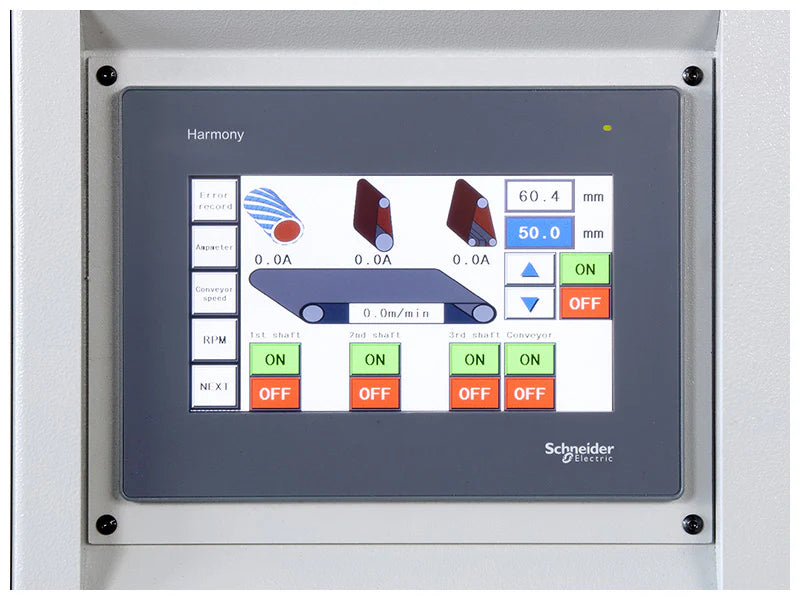

The S431 is equipped with an operator panel for feed speed, sanding pressure adjustments, belt tracking, and start/stop functions, making it suitable for front-line production use.
13. How does the S431 improve surface quality?
By allowing controlled feed speed, adjustable pressure, and consistent contact with the sanding belt, the machine delivers uniform surface abrasion, reducing finishing time downstream.
14. Is the S431 suitable for high-volume production?
Yes. The 43″ width and industrial construction make it well suited for high-volume sanding operations in commercial cabinetry and millwork environments.
15. Can the machine sand curved or profiled work?
Wide belt sanders like the S431 are designed for flat panels. They are not intended for three-dimensional profiling or curved edge sanding; those applications require specialty sanders or spindle sanders.
16. How does the S431 compare to narrower wide belt sanders?
With a 43″ (1100 mm) platen, the S431 handles larger panel sizes and increases throughput compared to narrower models, reducing the need for multiple passes on wide panels.
17. What safety features are included?
The S431 includes emergency stop controls, safer access guards, and standardized electrical safety components that align with industrial woodworking safety guidelines.
18. What power requirements does the machine need?
The S431 requires an industrial power supply (typically 3-phase 230/460 V), with exact requirements dependent on local electrical standards and optional configurations.
19. How do abrasive belts get changed?
Sandpaper belts on the S431 are changed via a manual belt tension/release mechanism with access doors designed for ergonomics and cleaner maintenance.
20. Is service and support available for the S431?
Yes. CANTEK equipment is supported by Centex Automation and authorized service partners, providing installation, training, spare parts, and long-term maintenance support.
