CANTEK | P30 5' Sliding Table Saw

Original price $8,500.00 - Original price $8,500.00
Original price
$8,500.00 - $8,500.00
Current price $8,500.00

Powerful features in a small footprint sliding panel saw.

The Cantek P30 5′ Sliding Table Saw is the ideal solution for customers looking for the precision and convenience of a sliding table saw but have limited floor space and smaller cutting requirements. The P30 has a precision sliding table which runs on ball bearings and hardened steel guide strips. It is equipped with individual motors for the main saw blade (5 HP) and scoring blade (¾ HP). The blade height and tilt is manually adjusted by means of individual handwheels. The angle of the blade is displayed by a linear scale for added operator convenience. The rip fence runs on a round hardened rail and is manually adjusted up to 51”. Equipped with a crosscut miter fence and (2) flip stops.

Why Cantek P30 5′ Sliding Table Saw?

  • Precision anodized aluminum sliding table with ball bearing guide system for smooth table movement
  • Powerful 5 HP main motor with ¾ HP scoring motor

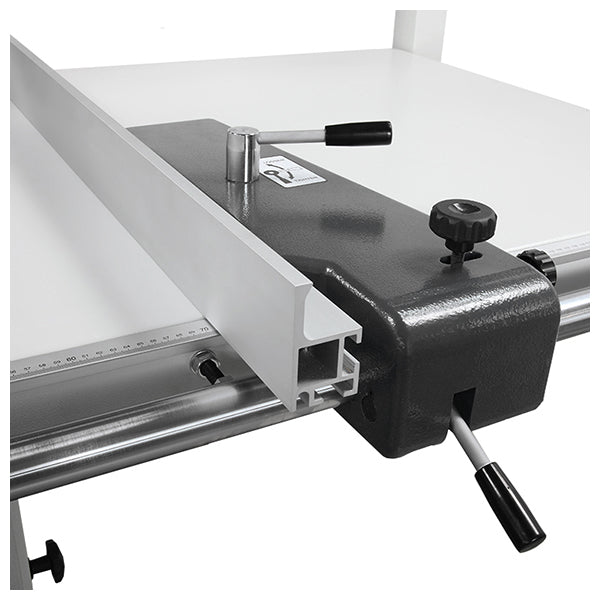

  • Heavy duty cast-iron rip fence with 51” cutting capacity
  • Aluminum crosscut miter fence with (2) flip stops
  • Manual rise/fall the main saw blade
  • Manual tilting of the saw blades with angle indicator conveniently located by adjustment handwheel
  • Overarm blade guard with build in dust port

Key Advantages

  • Solid cast iron main table which is ground and polished
  • Heavy-duty outrigger for strong support of workpiece during cutting operations
  • Solid rip fence with manual fine adjustment and locking lever
  • Easy to access external scoring adjustment
  • Extension table at side and back of main table
  • Optional Equipment Included:
    • Eccentric hold down clamp
    • CE Overarm Guard with Dust Port
    • Wedge for Solid Wood Ripping

Sliding table dimension
63″ x 12.4″
1600 x 315mm
Cast Iron table
21 ½” x 35 ¼”
Extension table (rear)
18″ x 17 ½”
Extension table (front)
12 ½” x 32 ½”
Table size
39 ½” x 68″
Main saw blade (Max.)
Main saw bore
Max. cutting height at 90° (355mm)
Max. cutting height at 45° (355mm)
Main motor power
5 HP
Main blade speed
4000 RPM
Scoring saw blade
Scoring saw blade bore
Scoring blade motor power(optional)
3/4 HP
Scoring blade speed
8000 RPM
Cutting width – ripping
Cutting width adjustment
Crosscutting width (Maximum)
Main saw blade tilting adjustment
Manual (0°~ 45°)
Main saw height adjustment
Scoring saw height adjustment
Saw guard
CE Guard Included
Dust collection ports
(1) 4” / (1) 2.3”
(1) 100mm / (1) 60mm
Machine weight
984 lbs
447 kgs
Shipping weight
1151 lbs
523 kgs
Shipping dimensions
83” x 46” x 44”
2110 x 1150 x 1160mm
230/1/60 = 34.9 Full Load Amps
230/3/60 = 18.4 Full Load Amps
575/3/60 = 7.4 Full Load Amps
