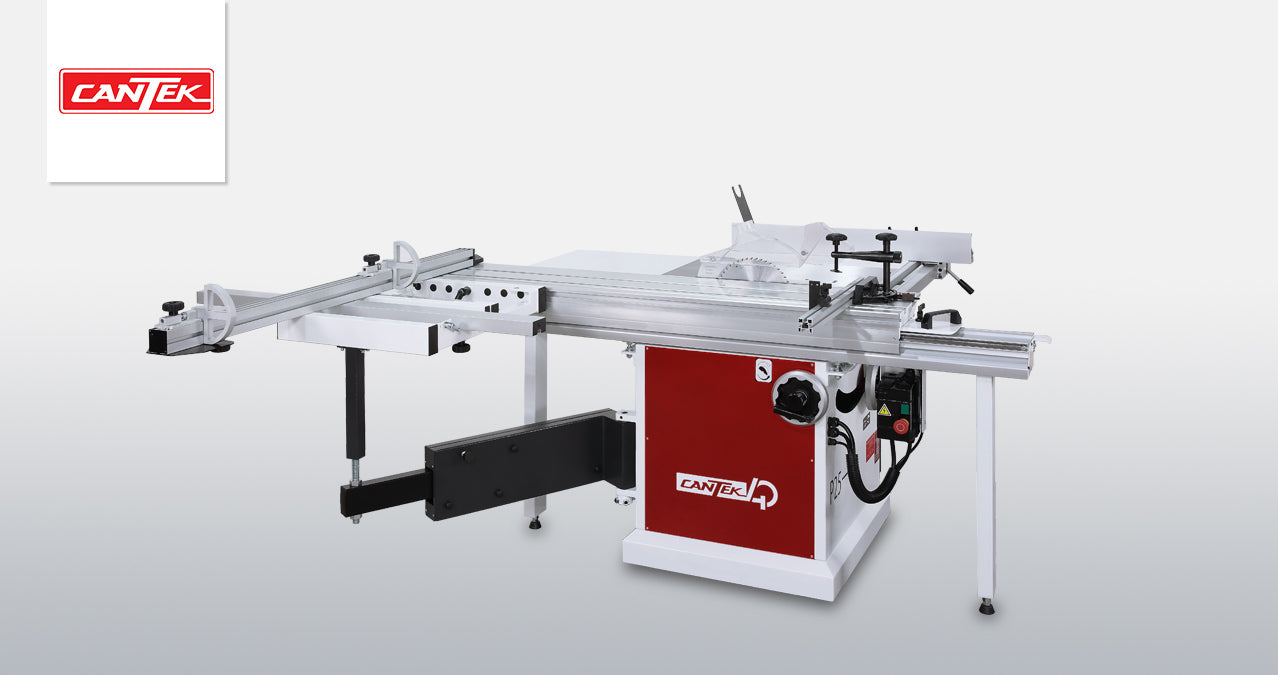

CANTEK | P25 5' Sliding Table Saw
Powerful features in a small footprint sliding panel saw.
The Cantek P25 10″ Sliding Table Saw delivers exceptional accuracy and performance in a compact, easy-to-use design. It combines the versatility of a traditional table saw with the precision and efficiency of a sliding table saw—perfect for cabinet shops and custom woodworkers alike. The P25 provides full-sheet crosscut and mitering capacity, along with an impressive 33″ rip capacity for larger panels. A built-in scoring blade ensures a chip-free finish on coated panels by pre-scoring the surface before the main 10″ blade completes the cut. The result is a smooth, professional edge every time. The heavy-duty aluminum sliding table (12-1/4″ x 63″) glides effortlessly on precision ball-bearing guides for consistent, accurate cuts. The integrated 2-1/2″ dust port, mounted directly to the riving knife assembly, provides effective dust extraction to keep the cutting area clean. The robust crosscut fence extends up to 78-3/4″ for superior workpiece support and allows crosscuts up to 63″ wide. For miters, the fence easily pivots and locks at any angle, providing precise cuts up to 48″ wide at 45°. Built for accuracy, reliability, and long-term performance, the Cantek P25 is the perfect solution for shops looking to maximize cutting precision and productivity.
Why Cantek P25 5′ Sliding Table Saw?
- Precision anodized aluminum sliding table with ball bearing guide system for smooth table movement.
- Powerful 5 HP motor

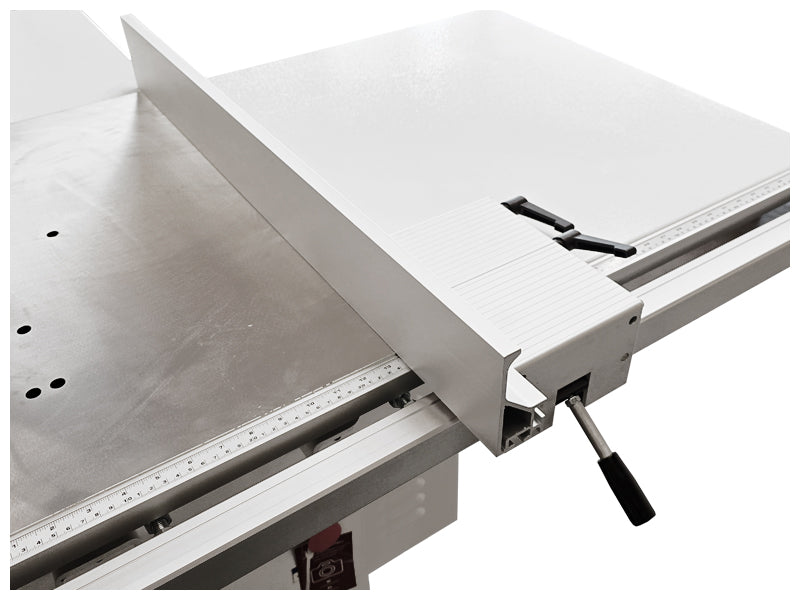

- Fast locking rip fence with 33″ width cutting capacity.

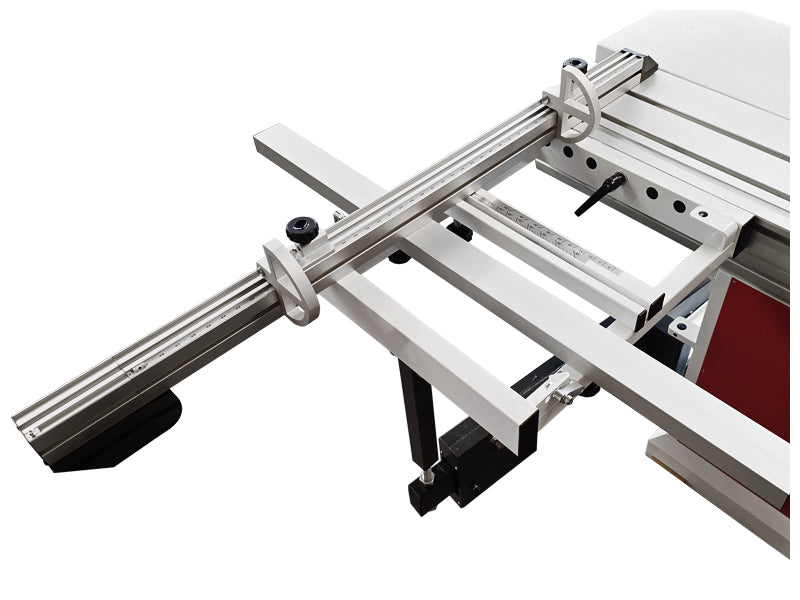

- Aluminum crosscut miter fence with (2) flip stops.
- Manual rise/fall of the main saw blade.
- Manual tilting of the saw blades with angle indicator.
Key Advantages
- Solid cast iron main table, which is ground and polished.
- Precise outrigger for strong support of workpiece during cutting operations.
- Fine scoring adjustment for tateral and vertical positioning of the scoring blades for chip free cutting
- Extension tables at side and back of the main table.
- Miter gauge fence with material hold-down clamp.
- Clear blade guard with dust extraction port is mounted to a steel riving knife.

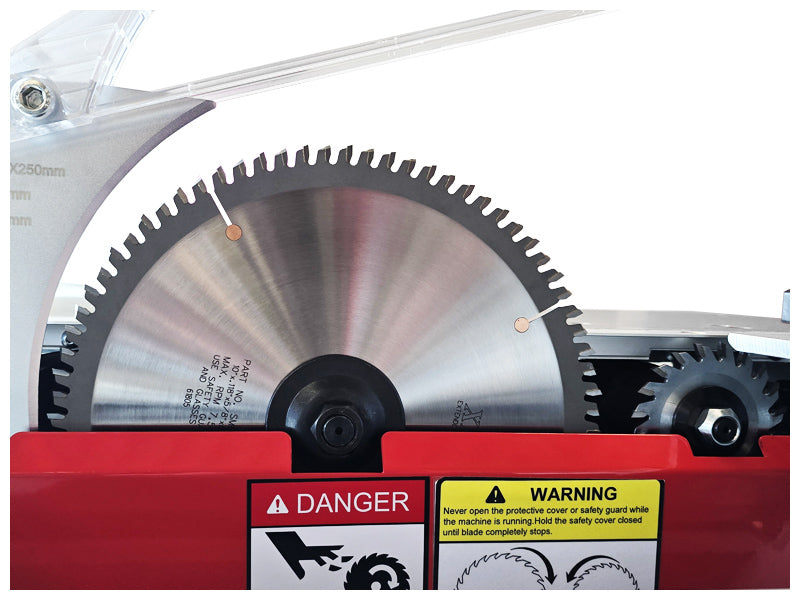

- Comes with a set of sawblades: (1) 10” (254mm) diameter main blade; (1) 3 1/8” (80mm) scoring blade
Specifications
| | INCH | METRIC |
Saw motor | 5 HP | |
Main saw blade diameter | 10” | 254mm |
Main saw blade bore diameter | 5/8” | |
Main saw blade speed | 4000 RPM | |
Saw blade tilt | 0 ~ 45o | |
Scoring saw blade diameter | 3 1/8” | 80mm |
Scoring saw bore diameter | 7/8” | 22mm |
Scoring saw blade speed | 8000 RPM | |
Maximum cutting height @ 90o | 3 1/8” | 80mm |
Maximum cutting height @ 45o | 2 ¼” | 57mm |
Maximum dado width capacity | 13/16” | 20.65mm |
Maximum rip width | 33” | 837mm |
Maximum crosscut length | 78 ¾” | 2000mm |
Cast Iron table | 27” x 14 3/8” | 686 x 365mm |
Table size with extensions (LxW) | 47” x 40” | 1194 x 1016mm |
Table height from floor | 33 5/8” | 854mm |
Dust ports | (1) 4”, (1) 2.3” | (1) 100mm, (1) 60mm |
Machine weight | 532 lbs | 242 kgs |
Saw floor space requirement | 148” x 100” | 3750 x 2538mm |
Shipping weight (Total) | 645 lbs | 293 kgs |
Shipping dimensions | Machine: 42” x 45” x 41” | Machine: 1060x1150x1050mm |
Electrical requirements | 230/1/60 = 19 Full Load Amps | |
