CANTEK | MT37DD 36″ Two Head Metal Widebelt Sander
Compact Metal Wide Belt Sander for increased efficiency during oxidation and slag removal.
The Cantek MT37DD 36” Two Head Metal Widebelt Sander is designed to be easy to use and durable for the removal of oxidation, deburring, and slag. It comes equipped with two rubber contact drums with superior material removal capabilities. The dual sanding units allow for the use of different grits in a single pass which cuts down on the overall sanding time. The precision digital thickness control allows the operator to accurately enter the desired thickness which moves the table precisely in to position for repeatable results. The industrial welded steel frame and powerful features all come in a compact package making the MT37DD ideal for smaller to midsized shops.
Why Cantek MT37DD 36” Two Head Metal Widebelt Sander?

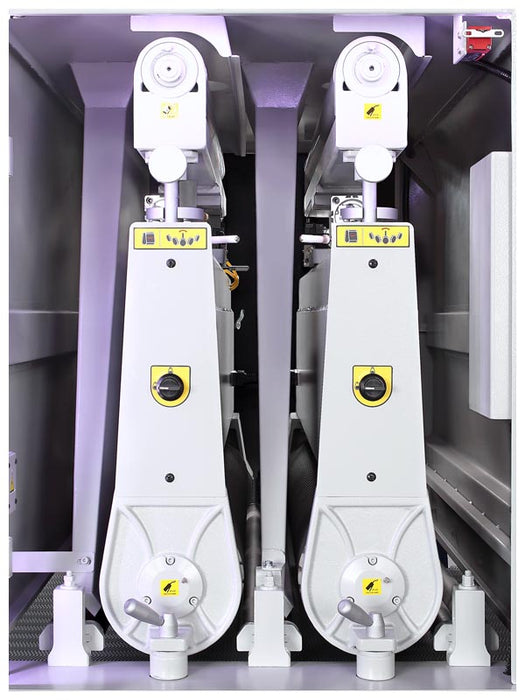

- Two sanding units each with a 8″ diameter rubber contact drum for superior material removal

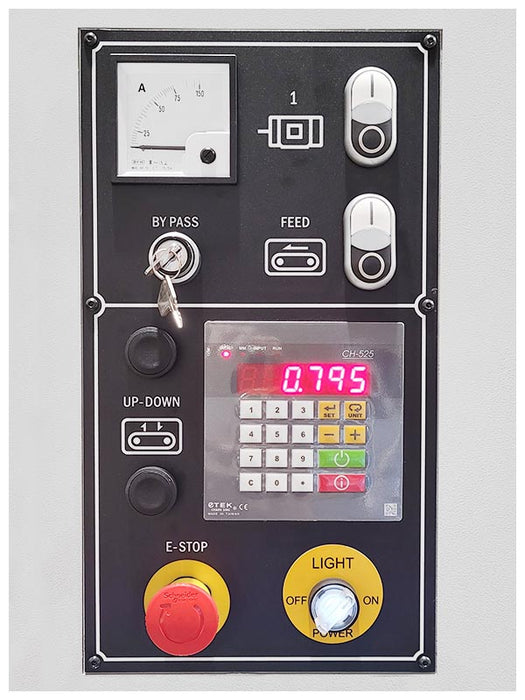

- Accurate digital thickness control with both Inch & Metric settings allows the operator to key in the desired thickness, and the table will automatically move into position.

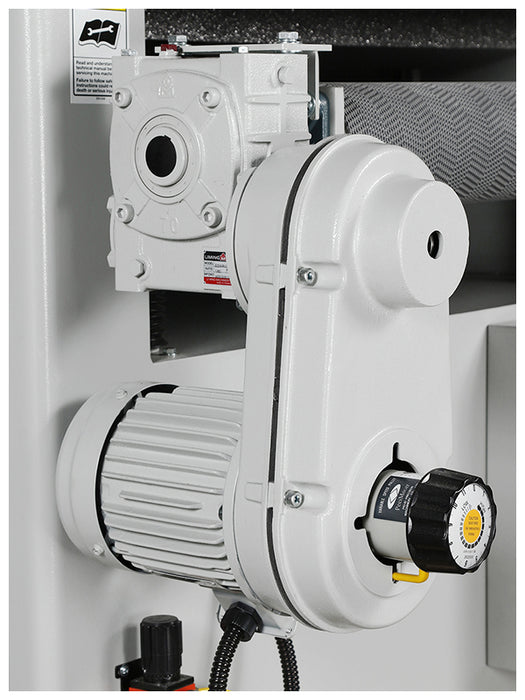

- Variable feed speed for optimal feed rate control for premium sanding results
- Industrial welded steel frame
- Small footprint takes up less valuable floor space
Key Advantages

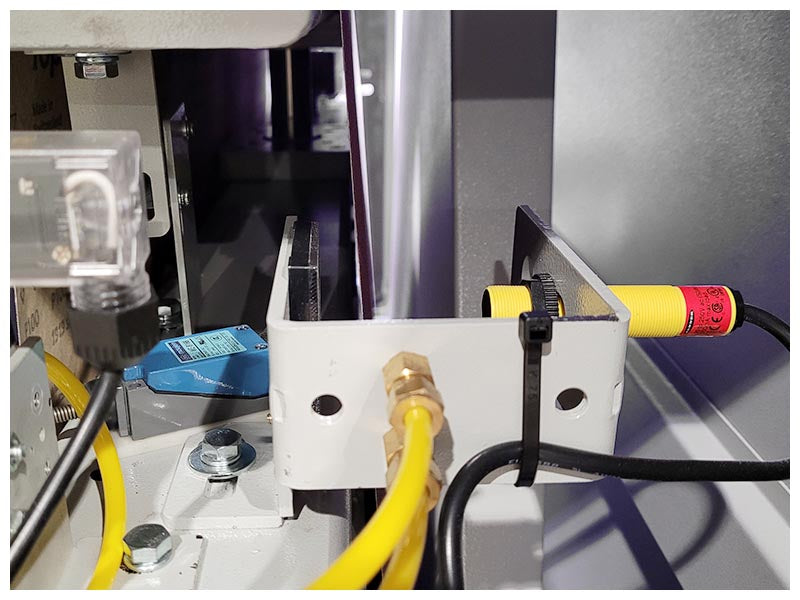

- Electronic belt tracking for optimum belt life and sanding results.
- Ammeter for load monitoring to ensure the proper amount of material is removed according to the selected grit.

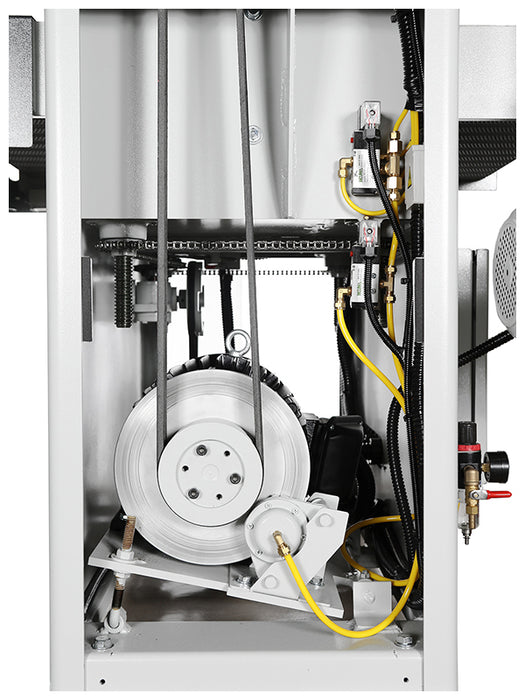

- Disc brake on the main motor allows for faster belt changes.
- Pneumatic belt tensioning with quick-release outboard support to facilitate fast belt changes.

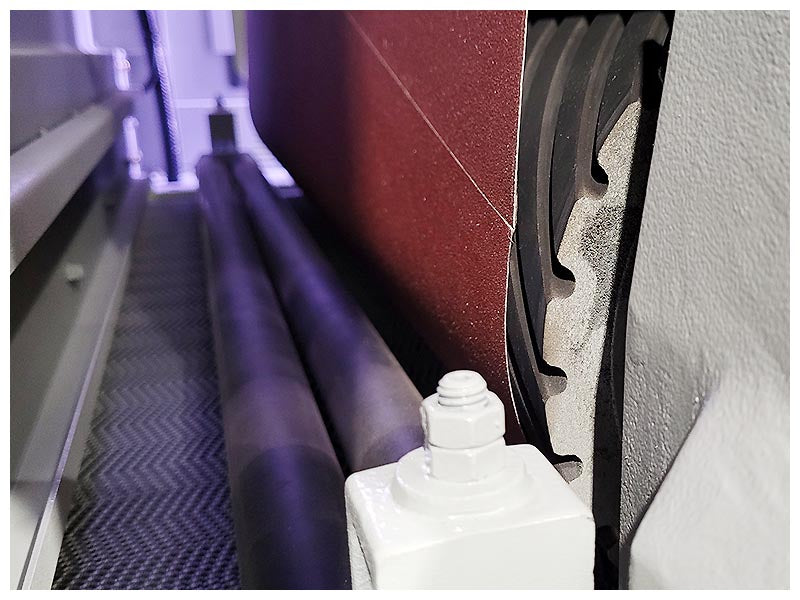

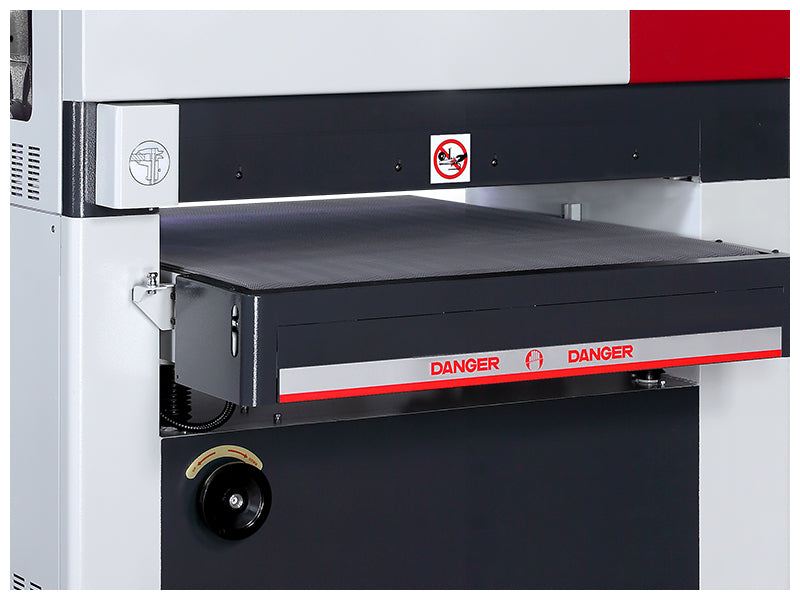

- Dual infeed, outfeed, and intermediate pressure rolls for superior part hold down.
- Four table raising jackscrews.
- Material over-height limit switch.
- Interlocks are located on all access doors.

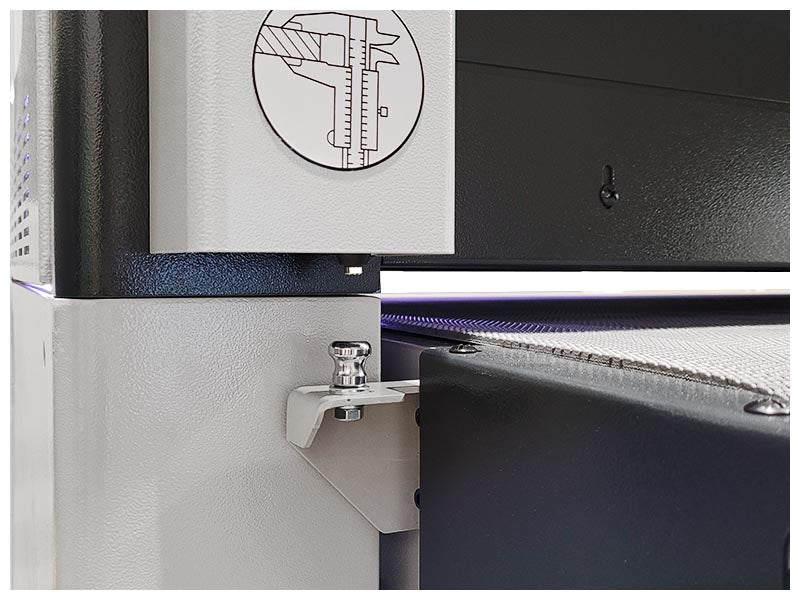

- Caliper thickness device for quick measurement of material.
Specifications
INCH |
METRIC |
|
Abrasive belt size |
37” x 60” |
939 x 1905 mm |
Main motor, shared |
20 HP |
|
Feed motor |
1HP |
|
Table rise/fall motor |
½ HP |
|
Maximum width stock |
36″ |
910 mm |
Minimum part length |
13″ |
330 mm |
Maximum thickness opening |
5″ |
127 mm |
Feed speed: variable |
13 to 52 FPM |
4 to 16 m/min |
Passline height |
33″- 38″ |
838 – 965 mm |
Infeed table |
11 ½” |
292 mm |
Dust outlet |
1 @ 5” |
1 @ 127 mm |
Compressed air usage |
2 CFM @ 90 PSI |
2 CFM @ 90 PSI |
Shipping weight |
2530 lbs |
1150 kgs |
Shipping dimensions |
52” X 57” X 86” |
1320 x 1447 x 2184 mm |
Electrical requirements |
230/3/60 = 70 amps |
|
Specifications
What is the Cantek MT37DD Metal Widebelt Sander?
The Cantek MT37DD is a 36 inch two-head metal widebelt sander for oxidation, deburring, and slag removal, built as a compact package for smaller to midsized shops.
How does two-head design help?
Dual sanding units allow different grits in a single pass, which can cut overall sanding time versus repeated single-grit passes.
What drum setup is listed?
Two sanding units each with an 8 inch diameter rubber contact drum are described for material removal.
How is thickness set?
Digital thickness control with inch and metric settings lets the operator key a thickness so the table moves into position for repeatable results.
Is feed speed adjustable?
Variable feed speed is described for feed rate control aimed at premium sanding results.
What frame is used?
An industrial welded steel frame is described as part of the durable compact package.
Who should consider MT37DD over MT37D?
Shops that want two grit stages in one pass for metal finishing may prefer the MT37DD. Centex Automation can help compare both.
How is pricing handled?
Request a Quote from Centex Automation. Quote machines do not use a placeholder dollar amount as a real price.
Can Centex assist with abrasive planning?
Yes. Centex Automation can discuss grit sequencing at a high level based on your metal process goals when you Request a Quote.
Are install packages included by default?
Install, training, service, or financing may be available. Confirm inclusions on your quote.
What details speed up quoting?
Share max part width, oxidation or slag load, and whether you need one or two grit stages in a pass.
Is this machine for wood panels?
This page focuses on metal widebelt work. Use Cantek wood widebelt pages for panel sanding inquiries.
What brand promise applies here?
Centex Automation — Built by People Who Know the Shop Floor — supports selection and quoting for Cantek metal sanders.
Should I invent unpublished specs in planning?
No. Stay with listed features and Request a Quote for any additional technical confirmation.
How do I proceed?
Contact Centex Automation to Request a Quote on the Cantek MT37DD.
