CANTEK | GT635ARD-8 25" X 8" Double Surfacer

Original price $36,200.00 - Original price $36,200.00
Original price
$36,200.00
$36,200.00 - $36,200.00
Current price $36,200.00

Plane your material efficiently in a single pass.

The Cantek GT635ARD 25″ double surface planer has a robust cast-iron body for industrial planing day in and day out. The spiral insert knife cutterheads produce a smooth planed finish with maximum stock removal. The material is passed over the bottom head with a spring-loaded pin feed system allowing it to act like a jointer to flatten the board prior to being planed to an accurate thickness with the top head.

Why Cantek GT635ARD 25″ Double Surface Planer?

  • Spring loaded conveyor pin system ensures material is passed over the bottom cutterhead to resulting in a flat and uniform board prior to planing to thickness on the top head
  • Spiral insert knife cutterheads with two-sided solid carbide knives produce a smooth finish with increased stock removal capacity and extremely quiet operation
  • Heavy-duty cast-iron machine body and table for vibration free cutting
  • Digital electronic thickness adjustment in INCH and MM (Inch = 0.001” / mm = 0.01mm resolution) for precise thickness control

Key Advantages

  • 25″ x 8″ capacity as standard with optional 16″, 20″, 24″ thickness capacity
  • Cutterheads are spiral insert type with six (6) rows of carbide inserts
  • (2) driven and (1) idle bed roll for superior feeding of even difficult material

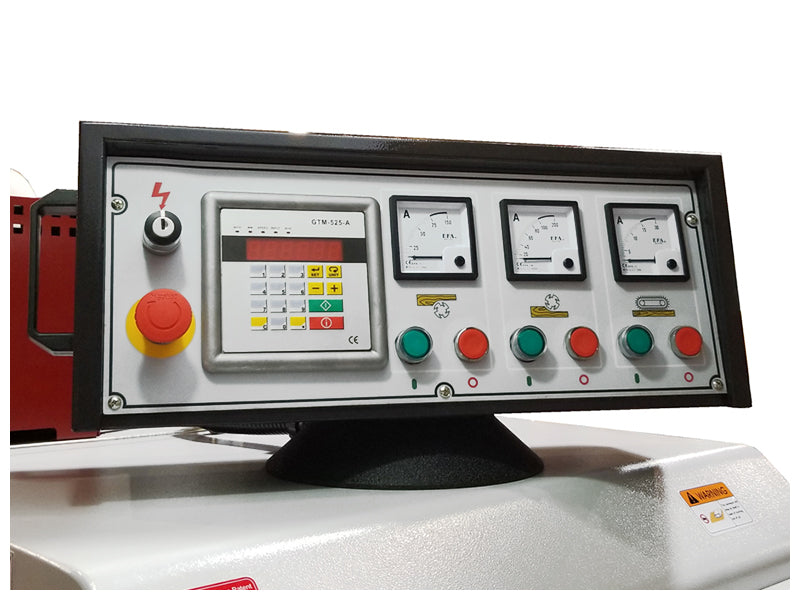

  • Swiveling control panel for more ergonomic access to machine controls
  • Inverter variable speed control with feed speeds from 26 to 80 FPM
  • Easy to access external handwheel adjustment of infeed bed
  • Hard chromed worktable for high wear resistance

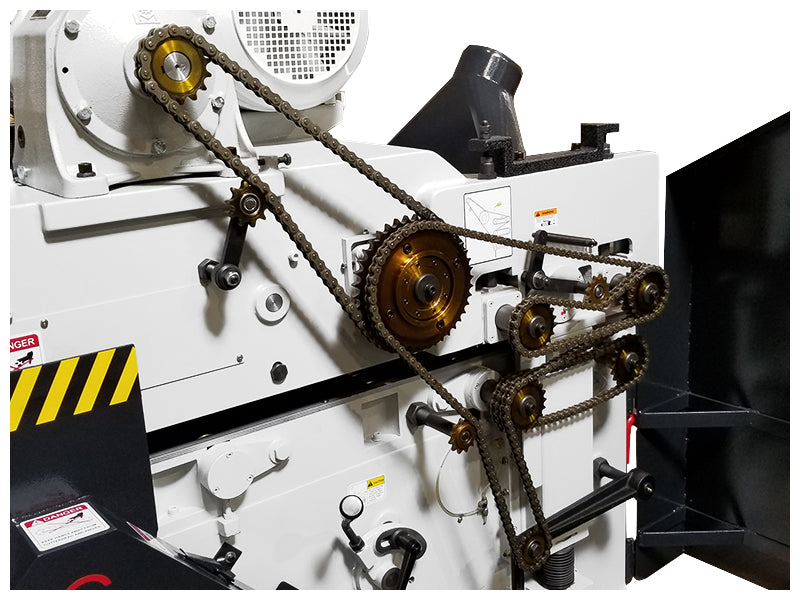

  • Auto lubrication to conveyor chain, central lubrication for dovetail elevation guideways
  • Section chipbreaker and sectional feed roller before top cutterhead
  • Rubber outfeed top roller to prevent chip marking
  • Over thickness safety shut-off bar across infeed.
  • Ammeter for each motor on control panel to monitor motor load
Specifications

Maximum working width
25″
Maximum working thickness
8″ (16″, 20″, 24″ optional, please inquire)
Minimum working thickness
0.315″
Minimum workpiece length
12.2″
Bottom head motor
20 HP
Top planing head motor
25 HP
Feed motor
5 HP
Table elevation motor
1/2 HP
Cutterhead diameter
4″
Knife dimensions
30mm x 12mm x 1.5mm w/ bevels (96 pcs per head)
Cutterhead speed
5400 RPM
Feed speed (variable)
26-80 FPM
Dust ports
2 @ 6”
Table dimensions
27″ x 103″ (32″ from the floor)
Machine voltage
460/3/60 = 69.7 amps
575/3/60 = 56 amps
Machine dimensions (LxWxH)
105″ x 45.1″ x 67.7″
Net weight
6600 lbs
Packaging dimensions
109″ x 49″ x 74″
Gross weight
7700 lbs
