CANTEK | D405M-10 10' Sliding Table Saw

Original price $12,700.00 - Original price $12,700.00
Original price
$12,700.00 - $12,700.00
Current price $12,700.00

Industrial manually operated sliding table saw.

The Cantek D405M-10 10′ Sliding Table Saw is the ideal panel cutting solution for kitchen cabinet shops, millwork companies, and furniture shops who need a precision saw but only require manual adjustments. The D405M-10 combines a heavy-duty construction with cast iron main table, cast iron saw carriage, and precision sliding table resulting in precise panel sizing with high accuracy and repeatability time after time. The double roller sliding table runs effortlessly and smoothly and the crosscut miter fence can be easily and accurately adjusted for optimum results

Why Cantek D405M-10 10′ Sliding Table Saw?

  • Precision anodized aluminum sliding table with prismatic rollers running on precision ground steel guides for smooth and effortless table movement
  • Crosscut miter fence with (2) flip stops for accurate panel sizing and angular cuts
  • Manual blade rise, fall, and tilting with convenient pointer for blade angle display
  • Heavy duty rip fence runs on round cylindrical solid steel guide with manual adjustment and micro adjustment knob
  • Overarm safety guard with quick change system for changing between straight and bevel cutting guards

Key Advantages

  • Powerful 7 ½ HP main motor for 3 Phase or 5HP main motor for Single Phase, with separate 1HP scoring motor
  • Manual saw blade rise/fall & tilting, conveniently located on the operator side of the machine
  • Heavy-duty outrigger for strong support of workpiece during cutting operations
  • Dual inch and metric scales for both rip and crosscut fences
  • Manual lateral and vertical scoring adjustment by externally mounted handles for operator convenience
  • Eccentric hold down clamp, table return handle, and wedge for solid wood ripping included

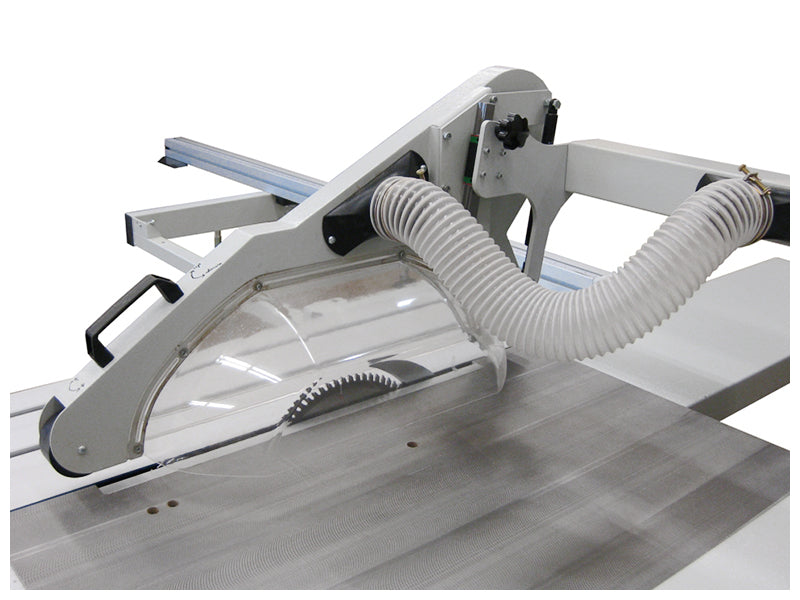

  • Overhead saw blade guard with built in dust port included (CE-type)

Sliding table dimension
126″ x 14.9″
3200 x 378 mm
Cast iron table
21.6″ x 35.3″
548 x 896 mm
Extension table (rear)
37.5″ x 35.3″
952 x 896 mm
Extension table (front)
12.6″ x 32.7″
320x 830 mm
Table size
59″ x 68″
1500 x 1726 mm
Round rail
Maximum main saw blade dia.
400 mm (16″)
Main saw bore
Max. cutting height at 90° (355mm)
105 mm
Max. cutting height at 45° (355mm)
Main motor power
7.5 HP (3ph) / 5HP (1ph)
5.5 kW (3ph) /3.7 kW (1ph)
Main blade speed (3)
3000/4000/5000 RPM
Scoring saw blade
120 mm
Scoring saw blade bore
Scoring blade motor power
1 HP
0.75 kW
Scoring blade speed
8000 RPM
Cutting width
1300 mm
Cutting width adjustment
Main saw blade tilting adjustment
Manual (0°~45°)
Main saw height adjustment
Scoring saw adjustment
Dust ports (machine / guard)
4.72″ / 2.5″
120mm / 64 mm
Machine total weight
1612 lbs.
733 kgs
Machine shipping details
1428 lbs (83″x46″x44″)
649 kgs (2110x1150x1120mm)
Sliding table shipping details
380 lbs (137″x20″x15″)
173 kgs (3480x490x370mm)
Overhead guard shipping details
80 lbs (40″x36″x6″)
36 kgs (1000x900x140mm)
230/3/60 = 26.2 Full Load
230/1/60 = 36 Full Load Amps
