CANTEK | C14RS 14" Straight Line Ripsaw

Original price $27,800.00 - Original price $27,800.00
Original price
$27,800.00 - $27,800.00
Current price $27,800.00

Large capacity glue line ripsaw with precision straight line results.

The Cantek C14RS Straight Line Ripsaw is a single-blade ripsaw is geared towards the shop looking to increase efficiency in their ripping operations but cannot justify a multi-blade ripsaw. With its precision cast iron chain and track assembly, and extended pressure section, the C14RS can produce a glue joint finish ready for panel glue-up right out of the saw.

Why Cantek C14RS Straight Line Ripsaw?

  • Produces a guaranteed glue joint finish to 15′, which eliminates the need to joint the material after ripping
  • Precision straight line feeding for parallel and accurate rip cuts
  • Eight hold down rollers over six rows ensure material is firmly held during cutting operations for a longer period resulting in a straighter, more precise cut
  • Powerful 20HP saw motor for even the most demanding rip applications
  • Maintenance-free chain track with the use of a reliable mechanical lubrication system

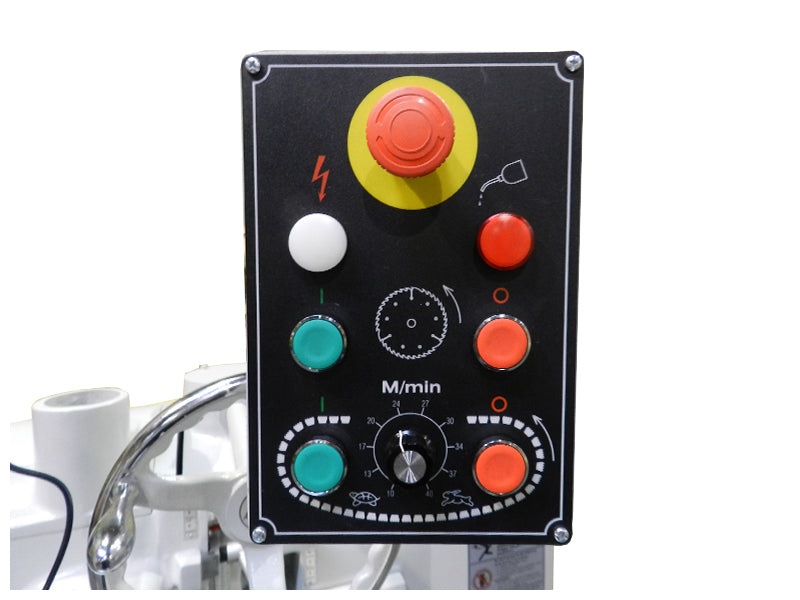

  • Variable feed speed by frequency inverter for optimum cutting results

Key Advantages

  • Cast iron saw assembly, column, and table with superior vibration damping properties for optimum cutting results while ensuring long bearing and machine life.
  • Very rigid machine body with a welded steel frame
  • Absolute straight line feeding with glue joint to 15 ft.

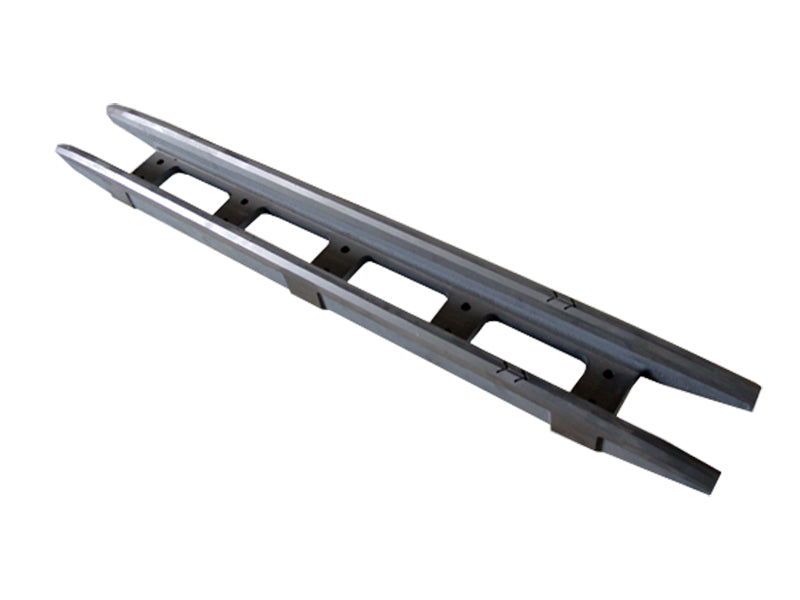

  • FC35 cast iron chain track with double-V design ensures precision straight-line ripping with a long wear life
  • Precision Built Saw Arbor constructed of nickel-chrome steel, large diameter, accurately ground and dynamically balanced.
  • Arbor runs in precision angular contact type ball bearings (eliminates any radial run-out & axial thrust) – V Belt driven from below.
  • Mechanical operation chain oiler provides consistent lubrication to the chain track and automatically adjusts to your feed speed.
  • When oil runs low, a warning light will come on, and when it gets too low, the machine track stops running to avoid damage to the track.
  • Cast iron rip fence is mounted to a large diameter round guide rail with a quick-locking lever for effortless and accurate adjustment.

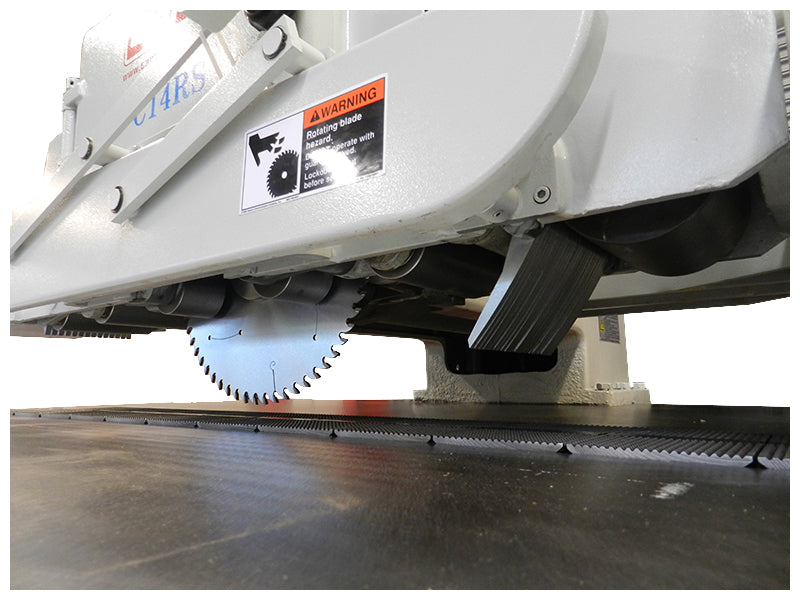

  • 3 sets of anti-kickback fingers: 2 top and 1 set in the table for added operator safety.
  • Soft start – Star Delta starter reduces the amp draw on startup.
  • Optional laser light to project the cutting line to achieve maximum material yield.

Saw blade diameter
12″ ~ 15″
300 ~ 380mm
Saw arbor diameter
Saw arbor speed
3500 RPM
Feed speeds variable
33 ~ 98 FPM
10 ~ 30 m/min
Max. cutting thickness: 12″ blade
Max. cutting thickness: 13″ blade
Max. cutting thickness: 14″ blade
Max. cutting thickness: 15″ blade
Minimum workpiece length
Distance between saw and column
Arbor motor
20 HP
Feed motor
2 HP
Table size
50″ x 75″
1270 x 1905mm
Table height
Dust port size
Net weight
3410 lbs
1550 kgs
Machine dimensions
89″ x 57″ x 57″
2269 x 1448x 1449mm
Shipping weight
3960 lbs
1800 kgs
Shipping dimensions
83″ x 63″ x 67″
2108 x 1600 x 1702mm
Electrical requirements
230/3/60 = 60.8 amps
460/3/60 = 30.4 amps
575/3/60 = 24.1 amps
