CANTEK | C12RSH 12" Straight Line Ripsaw

Original price $19,400.00 - Original price $19,400.00
Original price
$19,400.00 - $19,400.00
Current price $19,400.00

Save time and speed up production in your glue-up and ripping operations.

The Cantek C12RSH Straight Line Ripsaw is a single-blade ripsaw geared towards the shop looking to increase efficiency in their ripping operations but can not justify a multi-blade ripsaw. With its precision cast iron chain and track assembly, and extended pressure section, the C12RSH can produce a glue joint finish ready for panel glue-up right out of the saw.

Why Cantek C12RSH Straight Line Ripsaw?

  • Produces a guaranteed glue joint finish to 10′, which eliminates the need to joint the material after ripping
  • Precision straight line feeding for parallel and accurate rip cuts

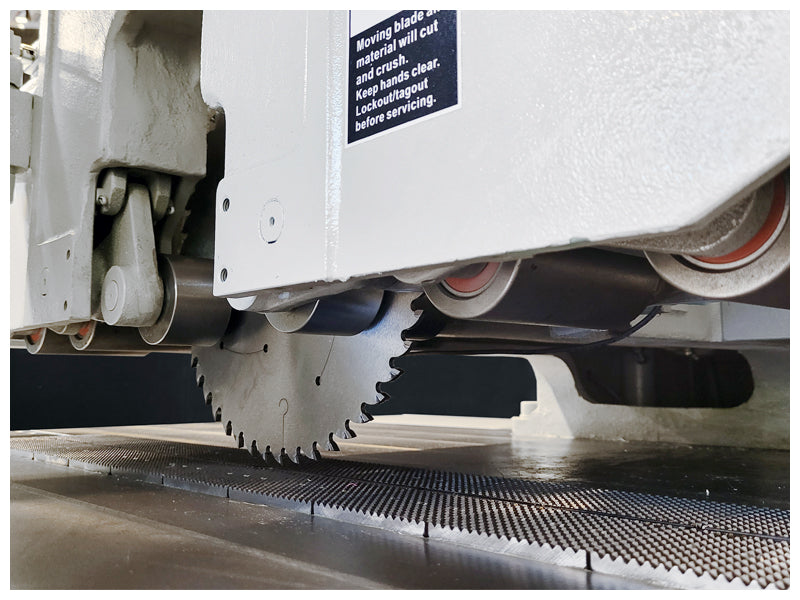

  • Eight hold down rollers over six rows ensure material is firmly held during cutting operations for a longer period resulting in a straighter, more precise cut.
  • Maintenance-free chain track with the use of a reliable mechanical lubrication system.

Key Advantages

  • Cast iron saw assembly, column, and table with superior vibration damping properties for optimum cutting results while ensuring long bearing and machine life.
  • Rigid machine body consists of a thick welded steel frame.

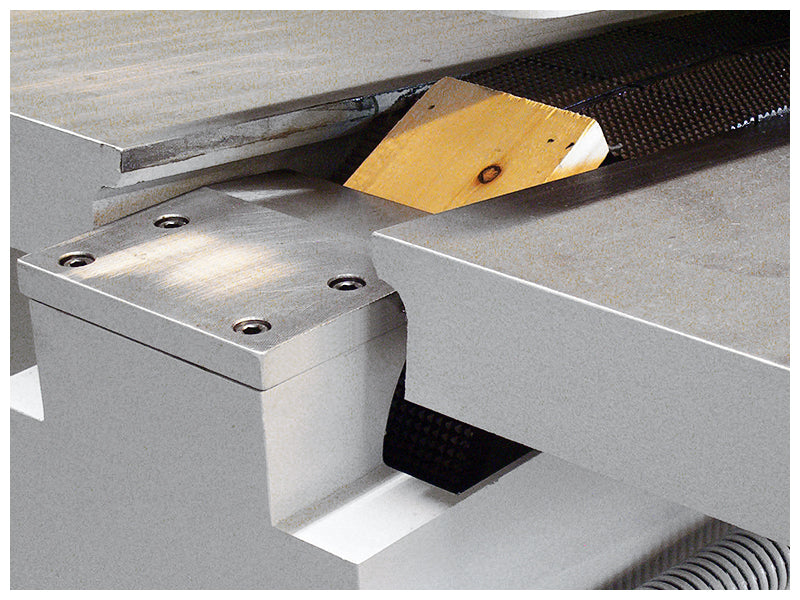

  • FC35 cast iron chain track with double-V design ensures precision straight-line ripping with a long wear life.

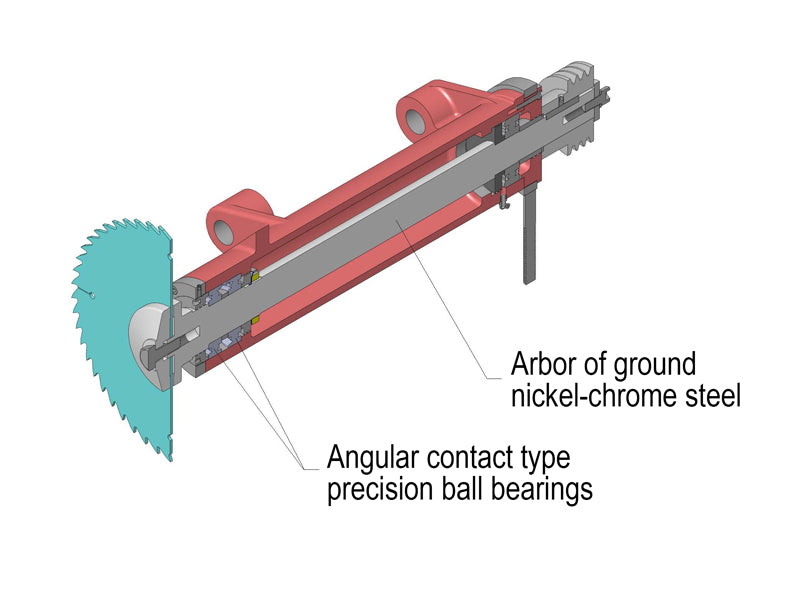

  • Precision Built Saw Arbor constructed of nickel-chrome steel, large diameter, accurately ground and dynamically balanced.
  • Arbor runs in precision angular contact type ball bearings (eliminates any radial run-out & axial thrust) – V Belt driven from below.

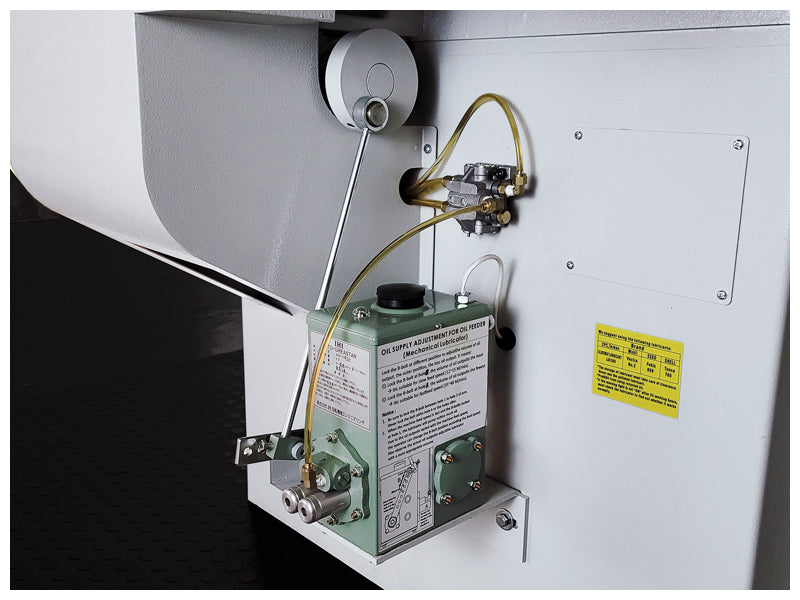

  • Mechanical operation Chain Oiler provides consistent lubrication to the chain track and automatically adjusts to your feed speed.
  • When oil runs low, a warning light will come on, and when it gets too low, the machine track stops running to avoid damage to the track.

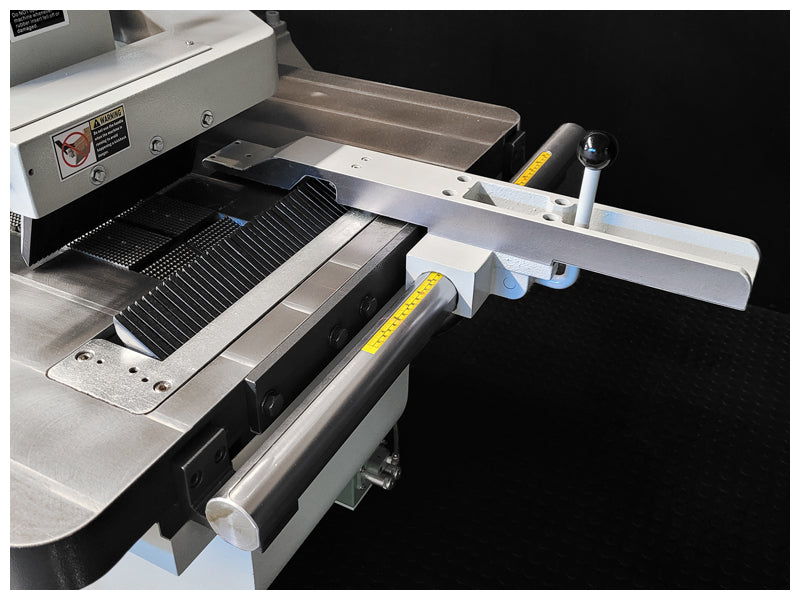

  • Cast iron rip fence is mounted to a large diameter round guide rail with a quick-locking lever for effortless and accurate adjustment.

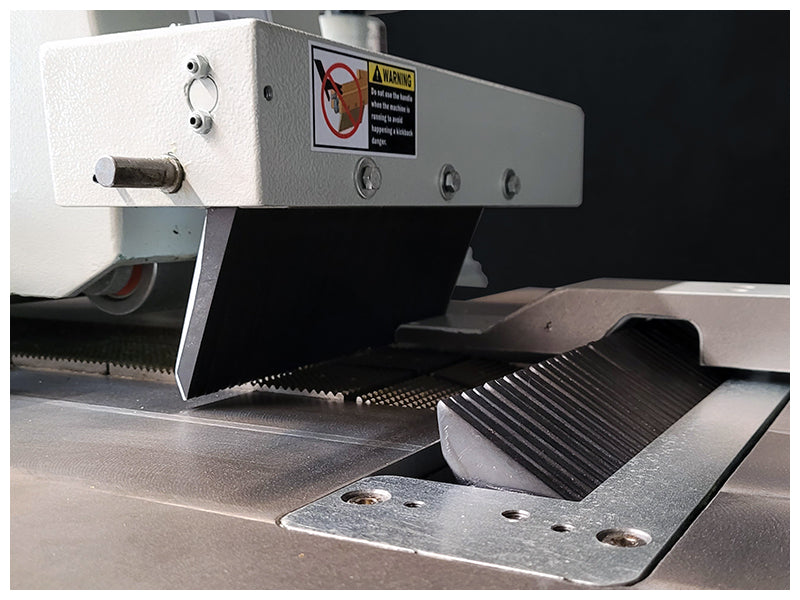

  • 3 sets of anti-kickback fingers. 2 top and 1 set in the table for added operator safety.

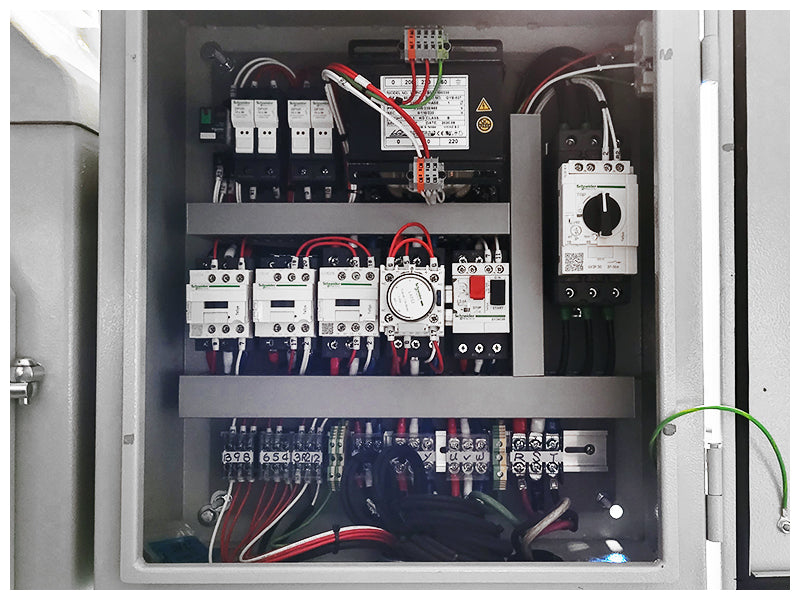

  • Soft start – Star Delta starter reduces the amp draw on startup.
  • Optional laser light to project the cutting line to achieve maximum material yield.

Saw arbor diameter
Saw blade diameter
10 – 12″
Saw arbor speed
4500 rpm
Feed Speeds – variable
50 to 120 FPM
Maximum workpiece thickness
3.34″ (12″ blade)
Minimum workpiece length
Glue line guarantee
10’ (+/- 0.0098” or 0.25mm)
Distance between saw and column
Arbor motor
15 HP
Feed motor
1 HP
46 amps (230V); 23 amps (460V)
Table size
39″ x 57″
Table height
Dust port size
Net weight
2,090 lbs
Machine dimensions
68” x 46” x 62”
Shipping weight
2,530 Lbs
Shipping dimensions
65″ x 55″ x 60″
