ALTENDORF | WA 80 Sliding Table Saw
Fascinating performance
The WA 80 enables you to successfully take on any material challenge: no matter whether you are working with wood or plastic. With its well thought-out design and robust build quality, it makes light work of simple but precise squaring cuts through complex angles. Completely developed and assembled in Germany, the machine sets a new benchmark for sliding table saws in terms of price and quality. It will guarantee the success of your business.
This is what makes the WA 80 so special
An overview of the key features.
Control panel on the machine frame
You can control the height and tilt adjustment of the main saw blade at the press of a button. The tilt angle is shown on the digital display.
Rip fence with precise manual adjustment
Setting the fence is easy; the precise adjustment facilitates great accuracy. The rip fence drops down clear of the machine table level to free up extra space for dividing large panels.

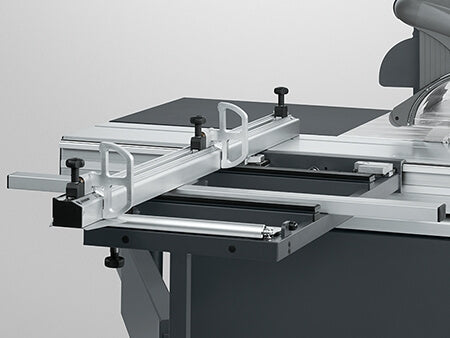

Crosscut fence with fixed 90° angle
Stops to 3,200 mm
The crosscut fence with fixed 90° angle earns its keep every day by helping with precision cuts on workpieces of different lengths and formats. The fence can be easily slid from front to back without lifting. Adjustment using graduated scale.
Sliding table
Table length 3,000 mm
The large dumbbell rollers guide the moving table with absolute precision between the hard-chromed guide bars. Robust though it is, the table responds even to a light touch, gliding smoothly and securely as if it were on rails. And it retains this ease of movement even after decades of hard work, dust and dirt.
Uniquely reliable
Roll up your sleeves and get to work. The WA 80 is always ready.
Individually configurable
Design your machinery with your exact needs in mind.
Tough, low-maintenance machines
We guarantee that your production operation will run smoothly and your cost estimation will hit the mark.
Guaranteed value stability
An Altendorf is always an investment in the future.
The Altendorf WA 80
Uncompromisingly strong, precise and reliable. The WA 80 stands for unique stability and the highest level of production safety. These qualities make the WA 80 the ideal partner for your successful projects.
- Max. cutting length 4,300 mm
- Max. cutting height 150 mm
- Max. cutting width 1,300 mm
Specifications
Basic Configuration
Control panel on the machine frame
All functions are easily accessed on the control panel on the machine frame. You can control the rise/fall and tilt of the main saw blade at the touch of a button. The tilt angle is shown on the digital display.
Saw blade projection
The saw blade projection of the WA 80 is 150 mm (saw blade diameter 450 mm).
Rip fence with precise manual adjustment
Cutting width 1,000 mm
Setting the fence is easy; the precise adjustment facilitates great accuracy. The rip fence drops down clear of the machine table level to free up extra space for dividing large panels.
Crosscut fence with fixed 90° angle
Stops to 3,200 mm
The crosscut fence with fixed 90° angle earns its keep every day by helping with precision cuts on workpieces of different lengths and formats. The fence can be easily slid from front to back without lifting. Adjustment using graduated scale.
Sliding table
Table length 3,000 mm
The large dumbbell rollers guide the moving table with absolute precision between the hard-chromed guide bars. Robust though it is, the table responds even to a light touch, gliding smoothly and securely as if it were on rails. And it retains this ease of movement even after decades of hard work, dust and dirt.
Motor rating
4 kW (5.5 HP) with single speed (4,000 rpm)
Powerful and smooth-running The saw is a powerhouse produced with the latest manufacturing technology. The saw shaft runs incredibly smoothly because it is electronically balanced as a fully assembled unit and extensive use is made of cast components. The high-precision vertical movement of the unit is linear with maintenance-free guide bearings. The robust tilt quadrants incorporate the traditional Altendorf tongue and groove connection system, which allows the whole unit to tilt easily and precisely to exactly the correct angle.
Dimensions
A – Trolley length + 290 mm
B – Trolley length + 360 mm
C – Angle stop, lengths up to 2500 mm: 1500 – max. 2630 mm
C – Angle stop, lengths up to 3200 mm: 1890 – max. 3420 mm
C – Angle mitre stop, lengths up to 3500 mm: 1960 – max. 3690 mm
D – Cutting width + 310 mm
Machine Weight – from 1000 kg
Working table height – 910 mm
