ALTENDORF | F 45 Sliding Table Saw
The essence of technology and design
We know how important reliable machinery is to your daily business operation. This is why our F 45 represents the essence of reliability and sets both technical and optical standards. And it does so to ensure your success.
Our masterpiece for your success
An overview of the F 45’s key features.

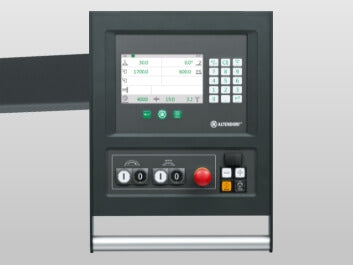

ElmoDrive
The F 45 ElmoDrive incorporates the most advanced and comprehensive control technology available for sliding table saws. The operating concept employs a huge 12” touchscreen that enables you to select the axes and the software functions.

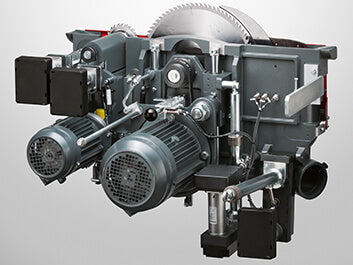

Motor rating 5.5 kW (7.5 HP)
The motors are manufactured specially to Altendorf’s specifications and have been optimised for use in sliding table saws. They provide up to 20 % more torque than conventional electric motors without increasing power consumption.

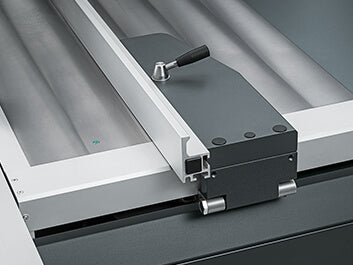

CNC rip fence
The CNC rip fence has a traverse speed of 250 mm/s and an accuracy of ±1/10 mm. The high-precision five-point recirculating ball spindle system needs little maintenance and, along with the motor, is well protected by its integration into the aluminium profile.

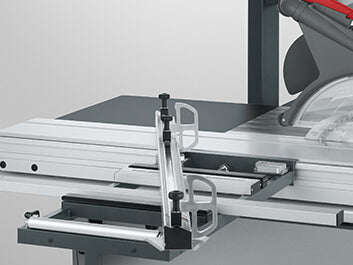

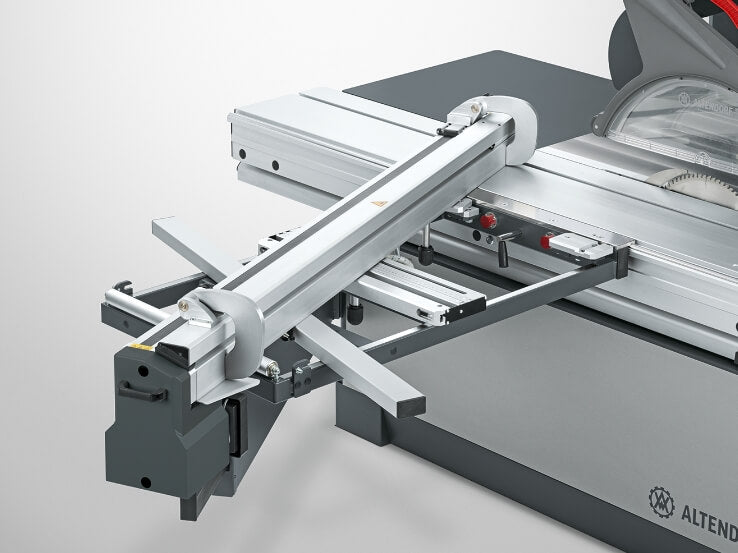

CNC crosscut fence
This patented Altendorf fence, with integral length compensation, makes it easier to perform bevel cuts and mitre cuts precisely in one function. The set angle can be adjusted continuously over a range of 49° with a graduated scale.
Expect the best.
This is why successful companies rely on the F 45
Individually configurable
Design your machinery with your exact needs in mind.
Tough, low-maintenance machines
We guarantee that your production operation will run smoothly and your cost estimation will hit the mark.
Guaranteed value stability
An Altendorf is always an investment in the future.

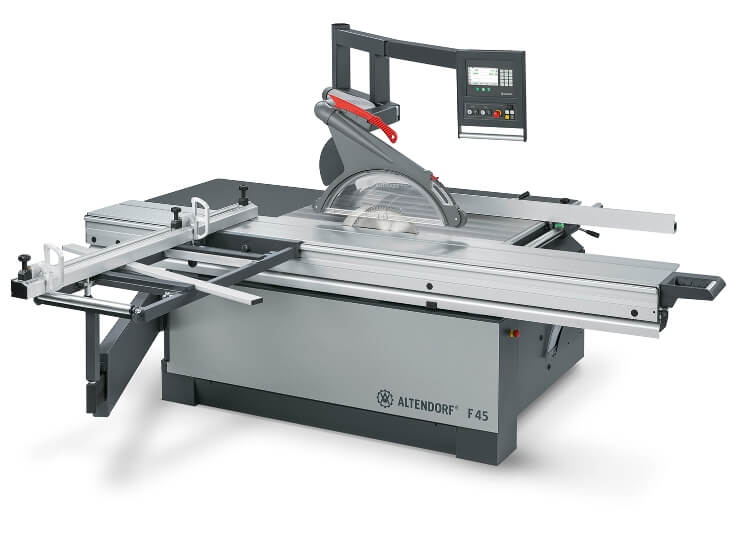

The Altendorf F 45
The F 45 is a real all-rounder. With its wide range of configuration options, the F 45 can take on just about any job you have. It also cuts nearly every material cleanly and precisely. Send us a sample of your material. We will test it and determine whether the F 45 is the right choice for your job.
- Max. cutting length 5,000 mm
- Max. cutting height 204 mm
- Max. cutting width 1,600 mm
Specifications
Basic Configuration
- Motorised rise/fall and tilt adjustment (0 – 46°) for the main saw blade with automatic cutting height correction when the saw blade is tilted
- Rip fence, manual adjustment using graduated scale, includes fine adjustment, cutting width 1,000 mm
- Eye-level control unit, swivelling
- Crosscut fence with fixed 90° angle, manual adjustment using graduated scale up to 3,200 mm
- AKE tool clamping system for the main saw blade
- Motor rating 5.5 kW (7.5 HP), three speeds (3,000/4,000/5,000 rpm), manual adjustment
- Sliding table, table length 3,000 mm
- Maximum saw blade projection 154 mm, maximum saw blade diameter 450 mm
- Working height 91 cm
Dimensions
A – manual adjustment: Cutting width + 280 mm
Motorised adjustment: Cutting width + 360 mm
B – Table length + 360 mm
C – Table length + 290 mm
D – Sliding table length: 1890 – max. 3,420 mm
D – Crosscut mitre fence and parallelogram cross slides: 1960 – max. 3,690 mm
D – CNC crosscut fence UNO / DUO: 2200 – max. 3,670 mm
D – Machine weight starting at 1,170 kg, depending on configuration
D – Working height 910 mm, 880 mm or 850 mm
Safety System
RIP FENCE SECURITY – THE HIGHEST LEVEL OF PRECISION AND SAFETY
Our safety system for motorised rip fences enables you to work even more precisely and safely. The intelligent sensor system is capable of recognising workpieces starting at a width of just 115 mm. It determines the exact point in time when the workpiece was completely cut through and moves the rip fence by 4 mm in order to expose the workpiece. Cutting marks and kick-back effect farewell!
HAND GUARD – THE FIRST OPTICAL SAFETY SYSTEM
HAND GUARD will warn you about potential dangers by flashing an optical signal. As a result, it does not interfere with your work style or constrain you as you work. Should a potentially dangerous situation occur nonetheless, the safety system will react within seconds: The entire saw unit quickly slows down, and the saw blade abruptly stops. After the system has been activated, the machine can immediately go back to work. No damage to the machine or saw blade occurs – the productivity of operations remains intact:
Three control units for countless options
Depending on your individual needs, you can select from three different control units for your Altendorf F 45. This service is unique! You can choose from the following control units when you configure your F 45 sliding table saw.
ProDrive control unit
The swivel-mounted control unit sets new standards in terms of ease of use, clarity, safety and convenience.
EvoDrive control unit
The F 45 EvoDrive comes with a 7” touchscreen that has a separate keyboard that can be used to enter numerical dimension specifications
ElmoDrive control unit
The F 45 ElmoDrive incorporates the most advanced and comprehensive control technology in existence for sliding table saws.
