ALTENDORF | F 25 Sliding Table Saw

Precision. Power. Potential.

You can’t go wrong when you count on quality. We are talking about things like equipping your first workshop with original saws made by Altendorf. Or adding a compact second machine to it. As you know, industrial production boils down to high unit numbers and the highest level of productivity – the F 25 is your dependable partner for all jobs.

Reliability in the closest of quarters

An overview of the optional extras offered by the F 25.

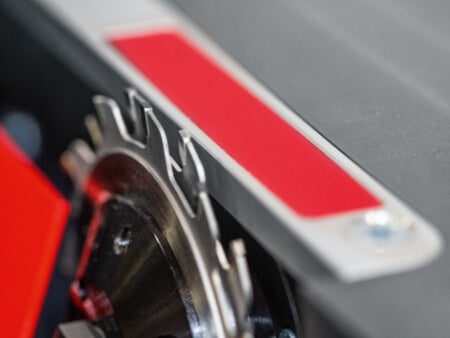

Scorer

Our basic scorer always produces chip-free edges during sawing operations. LED illumination in the danger zone of the scorer unit enhances the safety of work with the scorer.

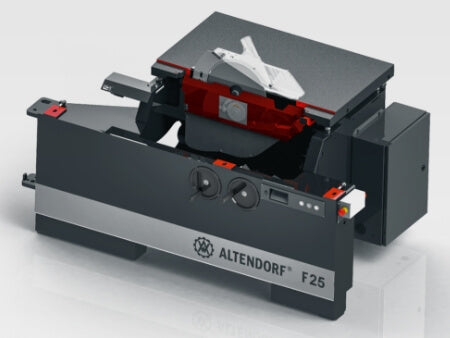

Motor rating

5.5 kW (7.5 HP) with two speeds

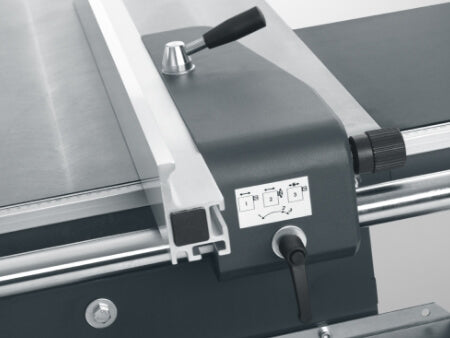

Rip fence

With precise adjustment, cutting width 1,410 mm
With DIGIT X, cutting width 1,000 mm
With DIGIT X, cutting width 1,410 mm

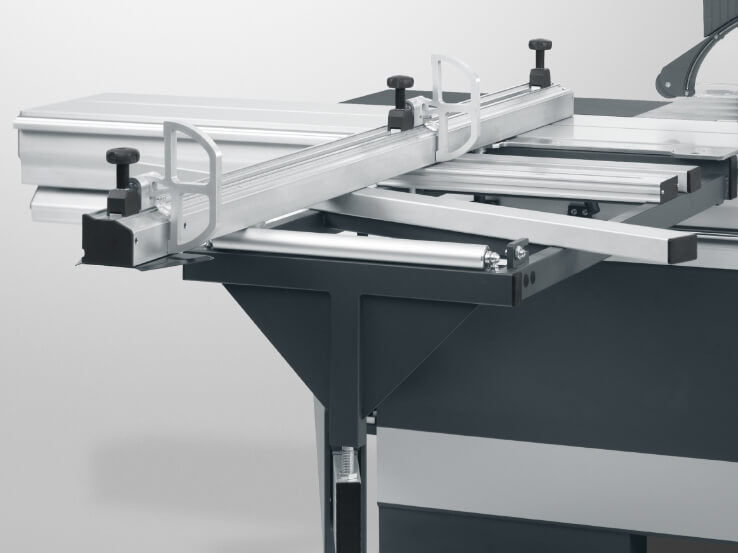

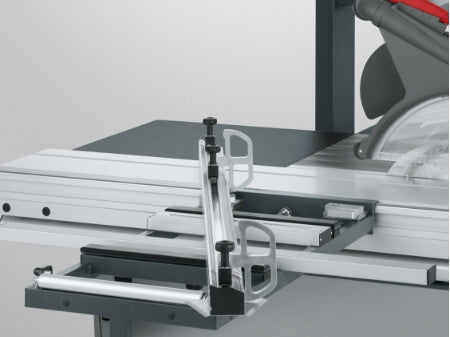

Crosscut mitre fence

Stops to 3,450 mm

Compactness meets expertise

The F 25 offers Altendorf quality to beginners and seasoned pros.

Individually configurable

Design your machinery with your exact needs in mind.

Tough, low-maintenance machines

We guarantee that your production operation will run smoothly and your cost estimation will hit the mark.

Guaranteed value stability

An Altendorf is always an investment in the future.

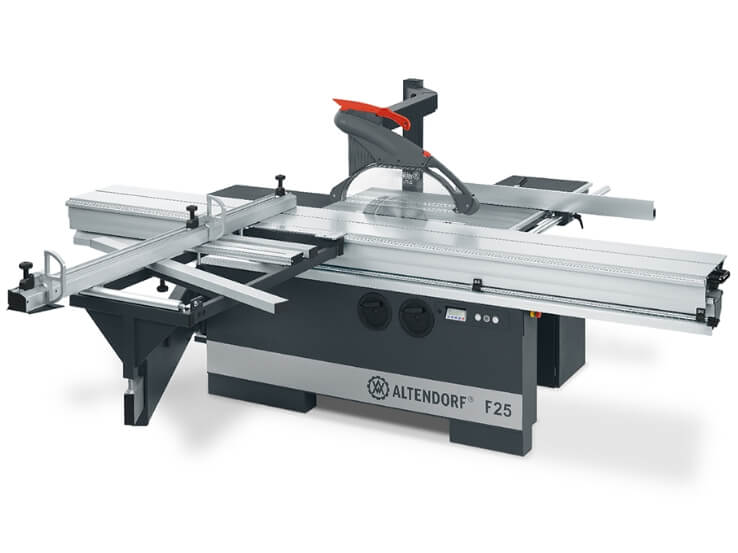

The Altendorf F 25

The Altendorf F 25 does everything a sliding table saw needs to do in very little space. And it delivers Altendorf’s uncompromising quality in the process. Materials such as wood-board materials, solid wood, wood-like materials or extruded profiles can be easily processed thanks to the best precision, simple handling and excellent cutting quality. The saw unit can be tilted on one side to facilitate angular cutting.

The smooth-running sliding table is based on the Altendorf system and, like the digital height and tilt display, is part of the standard design.

• Max. cutting length 3,800 mm
• Max. cutting height 104 mm
• Max. cutting width 1,410 mm

The configuration

Basic configuration

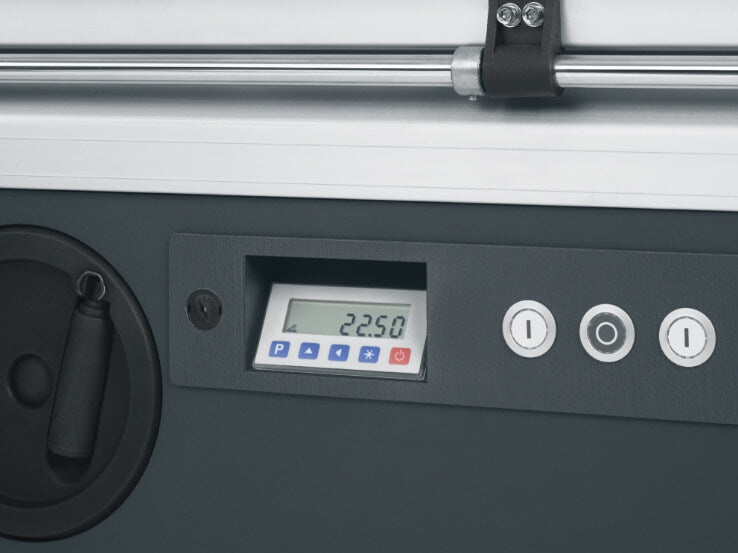

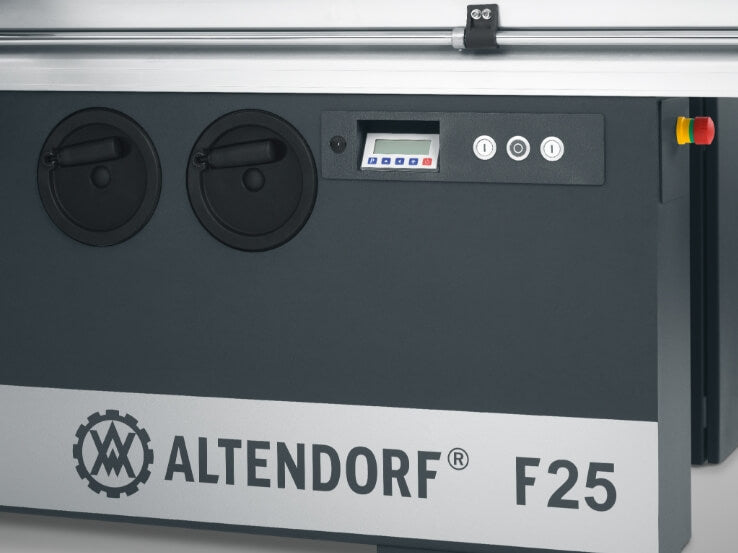

• Manual height and tilt adjustment 0 – 46° of the saw blade with a digital display
• Motor rating 4 kW (5.5 HP) with 4200 U/min.
• Sliding table, table length 3,200 mm
• Rip fence incl. manual precise adjustment, cutting width 1,000 mm
• Crosscut mitre fence, stops to 3,450 mm
• Preparation for subsequent installation of a scoring unit
• Saw blade diameter max. 315 mm, saw blade projection max. 104 mm
• Cutting height 100 mm, 70 mm at 45
• Working height 88 cm

Configuration options

Scorer

• Basic scorer
• RAPIDO scorer system
• LED illumination in the hazard area around the scorer

Sliding table

• Sliding table, table length 3,800 mm

Rip fence

• Rip fence with manual precise adjustment, cutting width 1,410 mm
• Rip fence with DIGIT X, cutting width 1,000 mm
• Rip fence with DIGIT X, cutting width 1,410 mm

Other accessories

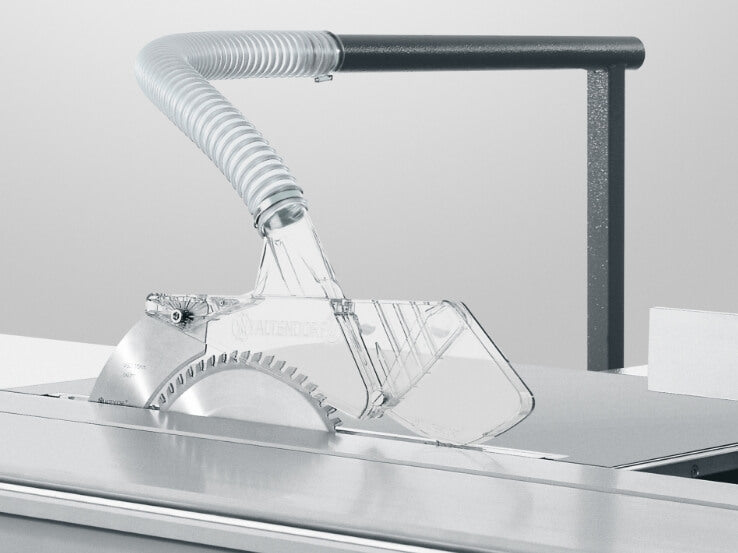

• Large extraction hood (PSV)

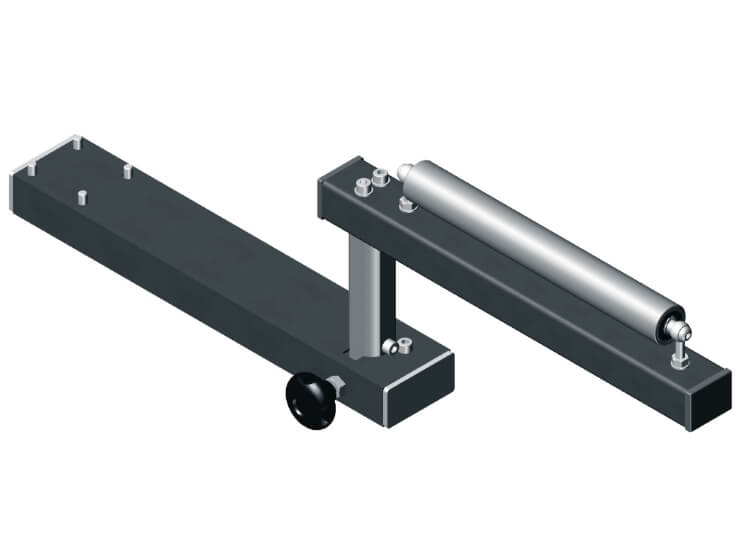

• Front support roller
