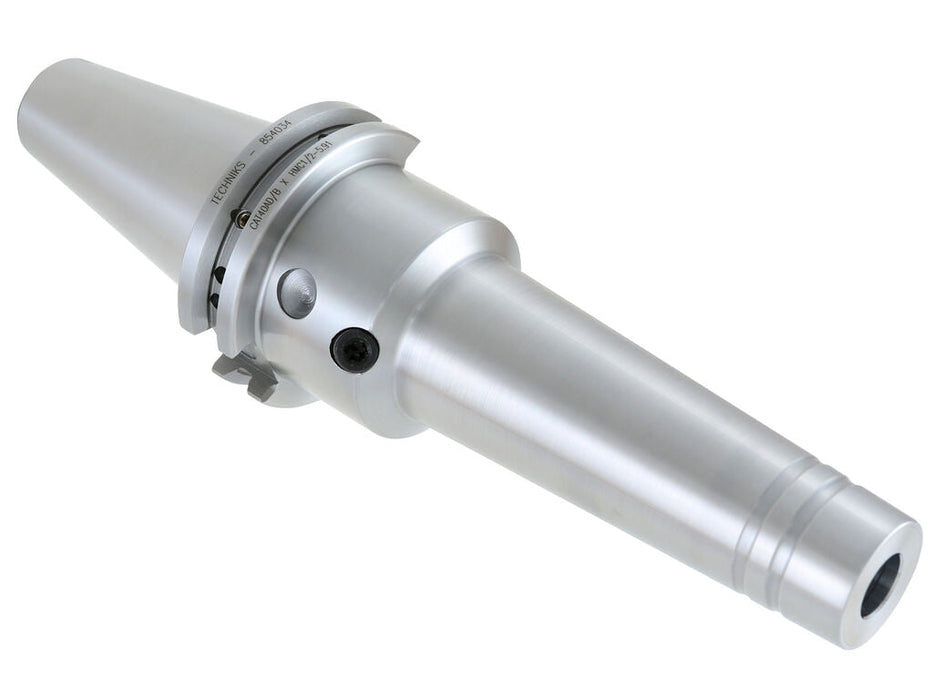

854024 : CAT 40 AD/B x HMC 1/4 - 5.91"
Specifications
| Item Number | 854024 |
|---|---|
| Item Description | CAT40 Extended Hydraulic Holder x 1/4" bore - 5.91" projection |
| Taper | CAT40 |
| Features | Extended |
| Overall Length | 8.6" |
| Body Dia | 1.97" |
| Overall Dia | 1.75" |
| Weight | 3.6 |
| Nose dia | 0.79" |
| Bore Size | 1/4" |
| Nose Length | 3.94" |
| Bore Depth | 1.06" |
| Projection Length | 5.91" |
Overview
**All images are representative images. Verify specifications before placing orders.** All Techniks hydraulic chucks are precision balanced to 25,000 RPM @ G2.5 making them an excellent choice for machining with small diameter tools. CAT40 Hydraulic Holders SLIM line features narrower nose diameters for machining in tight areas such as mold & die work or whenever necessary to machine around obstructions such as workholding fixtures. SLIM chucks are available in a wide selection of on-size bores. The extended hydraulic bladder provides very stable clamping along the tool shank at have a repeatable accuracy of less than 0.0001” run-out making them an excellent choice for precision drilling and reaming applications. The EXTENDED line features longer gage lengths when long reach applications require the ultimate accuracy and stability such as when machining on horizontal machining centers. Narrow body design for better clearance Maximum T.IR. of 0.0001” at 3X diameter AD/B CoolFLEX coolant delivery standard
Specifications
What is 854024 : CAT 40 AD/B x HMC 1/4 - 5.91"?
854024 : CAT 40 AD/B x HMC 1/4 - 5.91" is listed by Centex Automation. Verify specifications before placing orders.** All Techniks hydraulic chucks are precision balanced to 25,000 RPM @ G2.5 making them an excellent choice for machining with small diameter tools.
What does the product page describe?
CAT40 Hydraulic Holders SLIM line features narrower nose diameters for machining in tight areas such as mold & die work or whenever necessary to machine around obstructions such as workholding fixtures.
What additional detail is listed?
SLIM chucks are available in a wide selection of on-size bores.
Are features or technical data listed?
Yes. Feature and/or technical data sections appear on the product page. Use those listed values only; do not invent unlisted specs.
How do I get pricing?
Contact Centex Automation for current price, freight, and lead time, or use live storefront pricing when shown.
What brand support applies?
Centex Automation - Built by People Who Know the Shop Floor - helps shops select the right machinery, tooling, and consumables.
Is install, training, or service included?
Setup, training, or service may be available; do not assume they are included. Ask Centex Automation.
Who typically looks at 854024 : CAT 40 AD/B x HMC 1/4 - 5.91"?
Shops evaluating 854024 : CAT 40 AD/B x HMC 1/4 - 5.91" for woodworking or related production use. Confirm fit with Centex Automation.
What should I confirm before ordering?
Confirm model fit, options, lead time, and whether the listing is web-buy or quote-only with Centex Automation.
Should I invent specs not on the page?
No. Use only facts stated on the live product page or ask Centex Automation.
What else does the listing mention?
The extended hydraulic bladder provides very stable clamping along the tool shank at have a repeatable accuracy of less than 0.0001" run-out making them an excellent choice for precision drilling and reaming applications.
Any further description points?
The EXTENDED line features longer gage lengths when long reach applications require the ultimate accuracy and stability such as when machining on horizontal machining centers.
