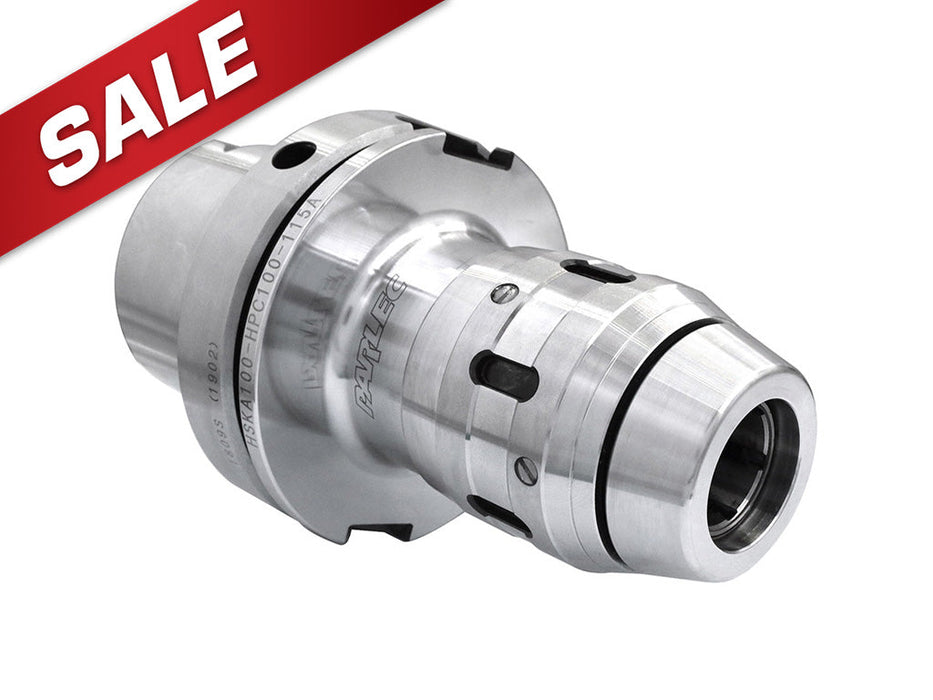

74401043 : HSKA100-HPC075-110A *EO*
by Techniks USA
Original price
$247.50
-
Original price
$247.50
Original price
$247.50
$247.50
-
$247.50
Current price
$247.50
Specifications
| Item Number | 74401043 |
|---|---|
| Item Description | HSK100A Micron Milling Chuck 3/4" bore - 4.33" projection |
| Taper | HSK100A |
| Overall Dia | 2.20" |
| Weight | 5.5 |
| Bore Size | 3/4" |
| Projection Length | 4.33" |
Overview
**All images are representative images. Verify specifications before placing orders.** Extreme accuracy of 5 microns at 3xD enhances cutting performance and tool life Thrust-Ring System delivers exceptional holding power Use reducing sleeves to hold virtually any shank size Unique Thrust-Ring System creates even clamping pressure along entire shank of the cutting tool Thrust-Ring has positive stop against tool body eliminating potential to over-tighten Balanced to 10,000 RPM @ G2.5 Simulfit: Available in officially licensed Big-Plus® configurations Simultaneous face & taper contact creates extremely rigid assembly reducing vibration and enhancing cutting performance and tool life
