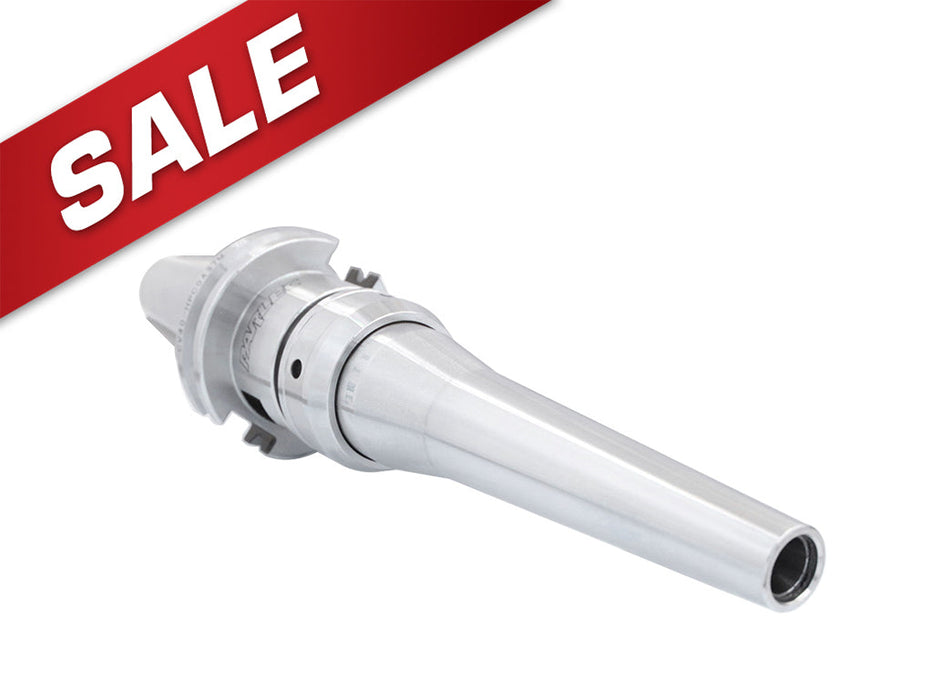

74304022 : CV40-HPC0187M-200 *EO*
by Techniks USA
Original price
$247.50
-
Original price
$247.50
Original price
$247.50
$247.50
-
$247.50
Current price
$247.50
Specifications
| Item Number | 74304022 |
|---|---|
| Item Description | CAT40 M-Style Milling Chuck 3/16" bore - 7.87" projection |
| Taper | CAT40 |
| Overall Dia | .86" |
| Weight | 3.6 |
| Nose dia | .43" |
| Bore Size | 3/16" |
| Projection Length | 7.87" |
Overview
**All images are representative images. Verify specifications before placing orders.** Narrow nose design allows for deep, hard-to-reach machining Max. T.I.R. of 5 microns at 3xD enhances performance and tool life Balanced to 15,000 RPM @ G2.5 Simple setup requires only a hook wrench
