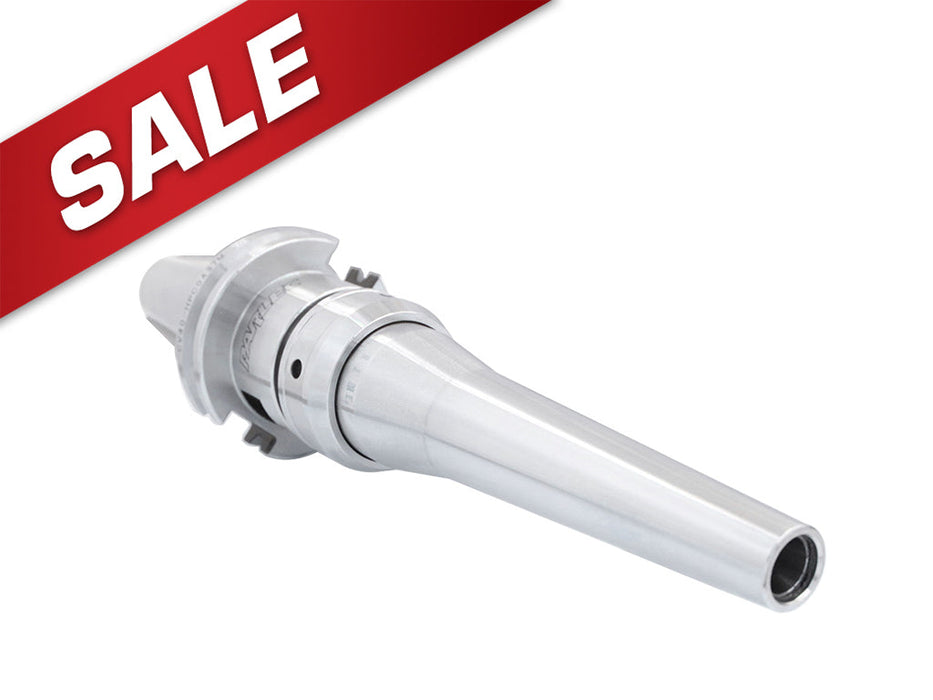

74204135 : BT40-HPC0125M-135 *EO*
by Techniks USA
Original price
$275.00
-
Original price
$275.00
Original price
$275.00
$275.00
-
$275.00
Current price
$275.00
Specifications
| Item Number | 74204135 |
|---|---|
| Item Description | BT40 M-Style Milling Chuck 1/8" bore - 5.31" projection |
| Taper | BT40 |
| Overall Dia | .63" |
| Weight | 4.2 |
| Nose dia | .35" |
| Bore Size | 1/8" |
| Projection Length | 5.31" |
Overview
**All images are representative images. Verify specifications before placing orders.** Narrow nose design allows for deep, hard-to-reach machining Max. T.I.R. of 5 microns at 3xD enhances performance and tool life Balanced to 15,000 RPM @ G2.5 Simple setup requires only a hook wrench
