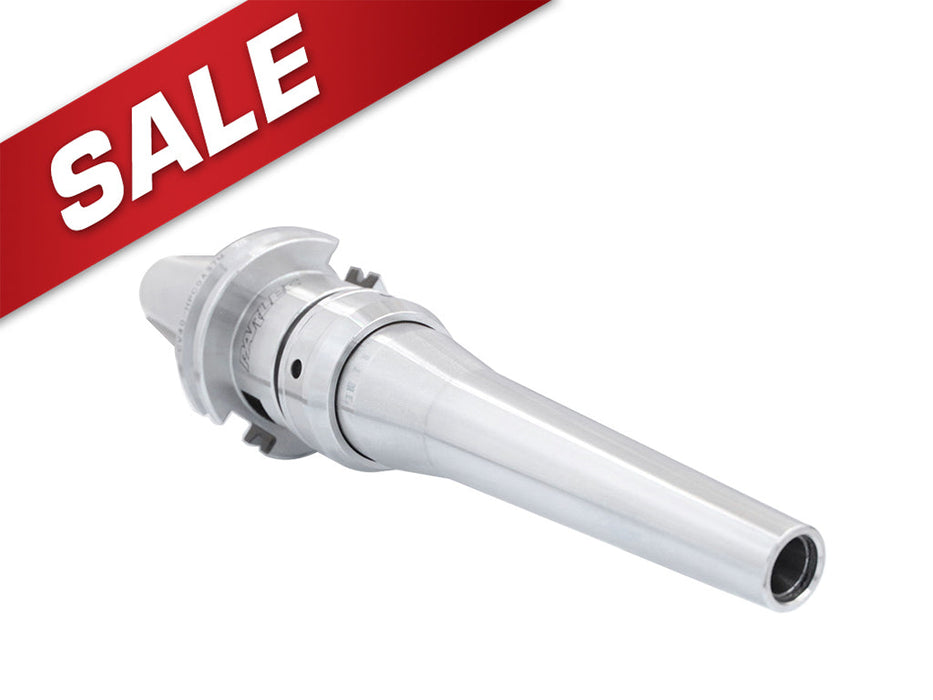

74204010 : BT40-HPC0125M-185 *EO*
by Techniks USA
Original price
$262.50
-
Original price
$262.50
Original price
$262.50
$262.50
-
$262.50
Current price
$262.50
Specifications
| Item Number | 74204010 |
|---|---|
| Item Description | BT40 M-Style Milling Chuck 1/8" bore - 7.28" projection |
| Taper | BT40 |
| Overall Dia | .70" |
| Weight | 4.9 |
| Nose dia | .35" |
| Bore Size | 1/8" |
| Projection Length | 7.28" |
Overview
**All images are representative images. Verify specifications before placing orders.** Narrow nose design allows for deep, hard-to-reach machining Max. T.I.R. of 5 microns at 3xD enhances performance and tool life Balanced to 15,000 RPM @ G2.5 Simple setup requires only a hook wrench
