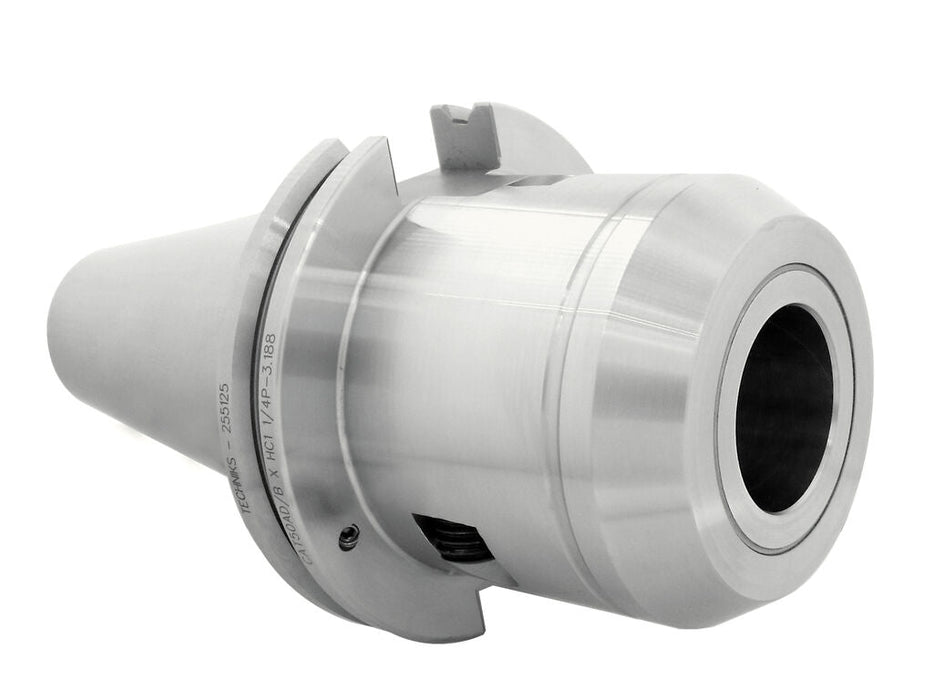

255032 : CAT 50 x 32 - 81 Triton Chuck
Specifications
| Item Number | 255032 |
|---|---|
| Item Description | CAT50 Triton Hydraulic Holder x 32mm bore - 81mm projection |
| Taper | CAT50 |
| Overall Length | 182.6mm |
| Body Dia | 72mm |
| Overall Dia | 69.85mm |
| Weight | 6.9 |
| Nose dia | 72mm |
| Bore Size | 32mm |
| Nose Length | 61.9mm |
| Bore Depth | 48mm |
| Projection Length | 81mm |
Overview
**All images are representative images. Verify specifications before placing orders.** All Techniks hydraulic chucks are precision balanced to 25,000 RPM @ G2.5 making them an excellent choice for machining with small diameter tools. The NEW Triton Chucks by Techniks harness the full power of hydraulic technology to provide unmatched holding power and accuracy! Triton chucks are charged with hydraulic fluid in a vacuum chamber to eliminate air and gas from the system. Coupled with a redesigned oil sealing system, Triton chucks are built to provide maximum holding power for years! Use reduction sleeves to hold any shank diameter. Our H-LOCKED reduction sleeves are manufactured with patented TTG-594 for unmatched holding power. Newly designed hydraulic system provides 3.5X clamping force of standard hydraulic chucks Bore wall thickness increased 25% vs. standard hydraulic holders for improved rigidity in heavy stock removal applications Excellent vibration damping properties enhances surface finishes and extends tool life
