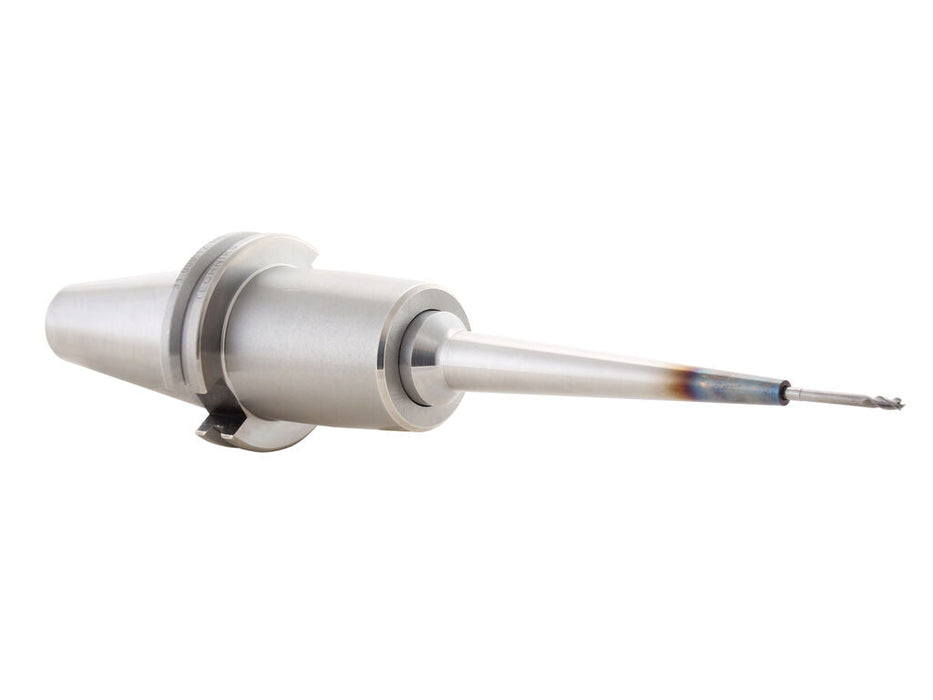

10.780.12.035 : BT 30 x SFS 12 - 35 (1.38") with T20
Specifications
| Item Number | 10.780.12.035 |
|---|---|
| Item Description | BT30 SFS Shrinkfit Holder x 26mm bore - 35mm projection |
| Taper | BT30 |
| Features | SFS |
| Overall Length | 83.4mm |
| Body Dia | 31.75mm |
| Overall Dia | 46mm |
| Weight | 1.9 |
| Nose dia | 38.1mm |
| Bore Size | 26mm |
| Taper Dia | 31.75mm |
| Nose Length | 12mm |
| Projection Length | 35mm |
Overview
**All images are representative images. Verify specifications before placing orders.** Techniks Shrink Fit Holders are made from H13 steel to provide reliable performance through thousands of tool change cycles and for compatibility with fast induction shrinkfit machines such as Techniks ShrinkSTATION and ShrinkPRO units. Shrink Fit Holders are precision balanced to 25,000 RPM @G2.5 making them an excellent choice for high speed applications such as when machining with small diameter tools. All Techniks Shrink Fit Holders are manufactured to provide repeatable accuracy of less than 0.0001” runout to maximize tool life and performance. Extended gage lengths are available for long reach applications such as machining on horizontal machining centers. DualDRIVE Shrink Fit Holders are designed to work with dual-contact spindles to provide superior rigidity under heavy side loads. SlimPRO Shrink Fit Holders have a very narrow nose diameter for machining in tight areas such as mold and die machining, medical parts manufacturing, or whenever needing to machine around obstructions such as workholding fixtures. ShrinkFIT holders are also available in our exclusive ShrinkLOCKED configuration to eliminate tool slippage or pullout without needing to modify the tool shank. ShrinkLOCKED shrink fit holders have the bore treated with a special abrasive compound, TTG-594, adding millions of microscopic teeth to the cutting tool connection producing the highest gripping force of any shrink fit tool holder. ShrinkLOCKED is an excellent choice when it is necessary to machine at high material removal rates such as machining titanium or other high temp alloys. Maximum T.I.R. only 0.0001" Balanced 25,000 RPM at G2.5 Coolant-thru stop screw included Dualdrive: DualDRIVE for dual-contact spindles increases rigidity and accuracy
Specifications
What is 10.780.12.035 : BT 30 x SFS 12 - 35 (1.38") with T20?
10.780.12.035 : BT 30 x SFS 12 - 35 (1.38") with T20 is listed by Centex Automation. Shrink Fit Holders are precision balanced to 25,000 RPM @G2.5 making them an excellent choice for high speed applications such as when machining with small diameter tools.
What does the product page describe?
All Techniks Shrink Fit Holders are manufactured to provide repeatable accuracy of less than 0.0001" runout to maximize tool life and performance.
What additional detail is listed?
Extended gage lengths are available for long reach applications such as machining on horizontal machining centers.
What technical figures are stated on the page?
The page lists: 26mm; 35mm; 83.4mm; 31.75mm; 46mm; 38.1mm. Confirm application fit with Centex Automation.
Are features or technical data listed?
Yes. Feature and/or technical data sections appear on the product page. Use those listed values only; do not invent unlisted specs.
How do I get pricing?
Contact Centex Automation for current price, freight, and lead time, or use live storefront pricing when shown.
What brand support applies?
Centex Automation - Built by People Who Know the Shop Floor - helps shops select the right machinery, tooling, and consumables.
Is install, training, or service included?
Setup, training, or service may be available; do not assume they are included. Ask Centex Automation.
Who typically looks at 10.780.12.035 : BT 30 x SFS 12 - 35 (1.38") with T20?
Shops evaluating 10.780.12.035 : BT 30 x SFS 12 - 35 (1.38") with T20 for woodworking or related production use. Confirm fit with Centex Automation.
What should I confirm before ordering?
Confirm model fit, options, lead time, and whether the listing is web-buy or quote-only with Centex Automation.
Should I invent specs not on the page?
No. Use only facts stated on the live product page or ask Centex Automation.
What else does the listing mention?
DualDRIVE Shrink Fit Holders are designed to work with dual-contact spindles to provide superior rigidity under heavy side loads.
Any further description points?
SlimPRO Shrink Fit Holders have a very narrow nose diameter for machining in tight areas such as mold and die machining, medical parts manufacturing, or whenever needing to machine around obstructions such as workholding fixtures.
