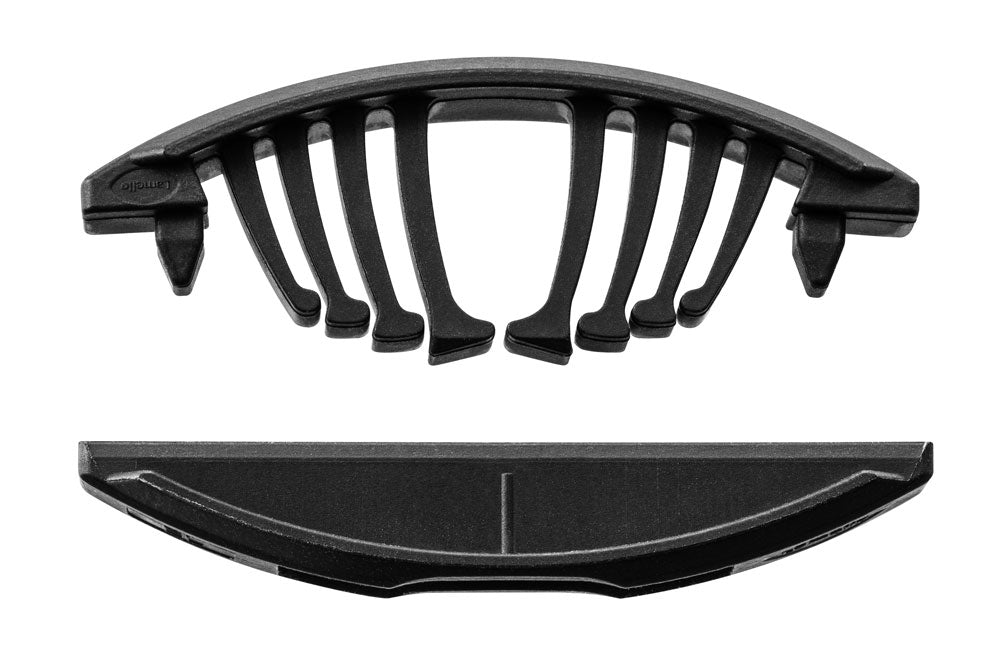

Lamello | Tenso P-10
The Tenso P-10 is a unique gluing aid, which eliminates the need for clamps or presses.
Developed for miters (45°) from a material thickness of 15 mm or butt joints (90°) from a panel thickness of 12 mm, the Tenso P-10 is ideal for glued furniture, components, small shelving units, door frames, trim, false edges, cubbies, plate racks, etc.
The preload clip enables the Tenso P to be preloaded anually in one simple step prior to gluing. The force required to join workpieces is reduced significantly thanks to the use of preloaded connectors. This is ideal for larger components with several joining elements, bulky parts or special angles. The preload clip is included with the Tenso P-10.
Benefits of The Tenso P-10
- For thin materials
- Concealed, self-clamping connector
- High level of clamping force
- For all angles
- Extremely fast, tool-free installation of connectors
- Stackable for transport, despite integrated connector
- Lateral tolerance for efficient installation with the Zeta P2 profile groove biscuit joiner or a CNC machine
Applications
- Self-clamping gluing aid for glued furniture, components, small shelving units, door frames, trim, false edges, cubbies, plate racks, etc.
- Clamping Connector for concealed corner joints
- Simpler and faster alternative to pipe and bar clamps
- Faster gluing process; work pieces may be stacked directly after gluing
- Application, adjustments and assembly are also possible on site
Specifications
Size: 52 x × 19 × 9.7 mm
Cutter: Ø 100.4 × 7 × 22
Shell material: Fiberglass reinforced plastic
Installation tolerance: Lateral ± 1 mm
Tightening force / clamping force: 22 lbs. / connector
Specifications
What is Lamello | Tenso P-10?
Lamello | Tenso P-10 is a unique gluing aid that eliminates the need for clamps or presses, developed for thin-material joints.
What thickness themes are listed?
Miters (45 degree) from 15 mm material thickness, or butt joints (90 degree) from 12 mm panel thickness.
Is the preload clip included?
Yes. The preload clip is included with the Tenso P-10.
What clamping force is listed?
Tightening force / clamping force of 22 lbs per connector is listed.
What size and cutter are listed?
Size about 52 x 19 x 9.7 mm; cutter about 100.4 x 7 x 22; shell fiberglass reinforced plastic; lateral tolerance about 1 mm.
How do I get pricing?
Contact Centex Automation for current price, freight, and lead time, or use live storefront pricing when shown.
What brand support applies?
Centex Automation - Built by People Who Know the Shop Floor - helps shops select Lamello connectors and accessories.
Is install training included?
Tenso P-10 setup, training, or service may be available; do not assume they are included. Ask Centex Automation.
What applications are listed?
Glued furniture, components, small shelving units, door frames, trim, false edges, cubbies, plate racks, concealed corner joints, and on-site assembly.
How does preload help?
Preloading prior to gluing reduces the force required to join workpieces, ideal for larger components, bulky parts, or special angles.
What should I confirm before ordering?
Confirm Tenso P-10 vs P-14 for your thickness, whether you need the separate insertion tool (145400), and Zeta P2 or CNC capability.
Should I invent pair counts?
No pair counts are stated. Ask Centex Automation for pack options.
Is it concealed?
Yes. Concealed, self-clamping connector is listed.
Can parts stack after gluing?
Yes. Work pieces may be stacked directly after gluing is listed.
