Lamello | Clamex P-10

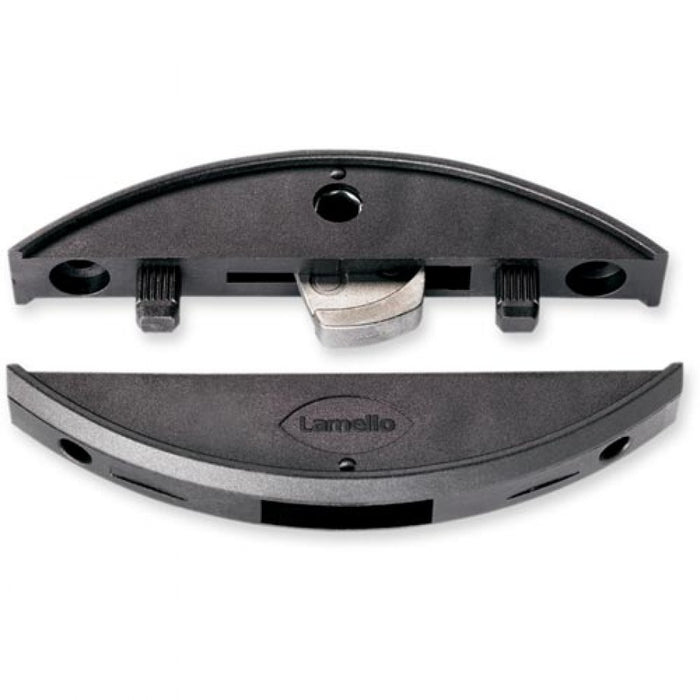

Clamex P-10 is a detachable, two-part connector with an internal cam lock which is engaged with a lever. Compared to Clamex P-14, Clamex P-10 has a shallower installation depth of just 10 mm and is therefore may be used in thinner material. The design of the connector is enhanced by two torsion tabs, which offer strong dimensional stability.
The form-locking P-System enables strong connections in the workpiece without the need for tools in just seconds. Clamex P does not require glue or screws, and offers numerous benefits in the manufacturing process while also distinguishing itself from standard connecting hardware.
Zeta P2 depth setting 10.
Benefits of Clamex P-10
- Minimal installation depth for material as thin as 13 mm (1/2") for surface or corner joints
- Detachable miter connector for 30-180° angles in material thickness of at least 15 mm (9/16")
- Nearly invisible with its 6 mm tool opening
- Fast tool-free installation of connectors
- Stackable for transport with connectors pre-installed
- High clamping force for gluing components at all angles
- Lateral tolerance for efficient installation with the Zeta P2 biscuit joiner or a CNC machine
Applications
Due to its small size, the Clamex P-10 can be used in 13 mm materials such as plywood, solid surface or HPL as well as for miter joints in 16 mm thick materials.
- Ideal for miter joints in 16 mm panels for furniture making, shop fitting or kitchen manufacturing
- Detachable or fixed connecting fitting for toilet partition systems or caravan interiors using thin 13 mm materials
- Glueing aid for miters and angle joints ranging from 30-180°
- Aesthetic alternative to standard connecting fittings
- Rapid prototype construction before starting new furniture range
- On-site adjustments and assembly
Specifications
Size: 52 × 19 × 9.7 mm
Cutter: Ø 100.4 × 7 × 22
Shell material: Fiberglass reinforced plastic
Lever material: Zinc die cast
Installation tolerance: Longitudinal ± 0.5 mm
Tensile strength:
Particle board: ~ 600 N
Beech: ~ 900 N
Specifications
What is Lamello | Clamex P-10?
Lamello | Clamex P-10 is a detachable, two-part connector with an internal cam lock engaged with a lever. Compared to Clamex P-14 it has a shallower 10 mm installation depth for thinner material.
What material thickness themes are listed?
Minimal installation depth for material as thin as 13 mm (1/2 inch) for surface or corner joints; detachable miter for 30-180 degree angles in at least 15 mm (9/16 inch).
What Zeta P2 depth setting is listed?
Zeta P2 depth setting 10.
What size and materials are listed?
Size about 52 x 19 x 9.7 mm; cutter about 100.4 x 7 x 22; shell fiberglass reinforced plastic; lever zinc die cast; longitudinal tolerance about 0.5 mm.
How do I get pricing?
Contact Centex Automation for current price, freight, and lead time, or use live storefront pricing when shown.
What brand support applies?
Centex Automation - Built by People Who Know the Shop Floor - helps shops select Lamello connectors and accessories.
Is install training included?
Clamex P-10 setup, training, or service may be available; do not assume they are included. Ask Centex Automation.
What tensile strengths are listed?
Particle board about 600 N; beech about 900 N.
What should I confirm before ordering?
Confirm Clamex P-10 vs P-14 for your panel thickness, miter needs, and Zeta P2 or CNC groove capability.
How do I contact Centex Automation?
Use the storefront contact path or your Centex Automation sales contact for selection help, price, and lead time.
