Lamello | Clamex P-14
The top reasons to use Clamex P-14 as a standard connector:
1. High-quality aesthetic solution: Nearly invisible, secure connections with high clamping strength
2. Saves time: Process advantages in production, transport and assembly
3. Versatile with a range of applications: One connector for all connection applications and angles. For detachable or glued connections

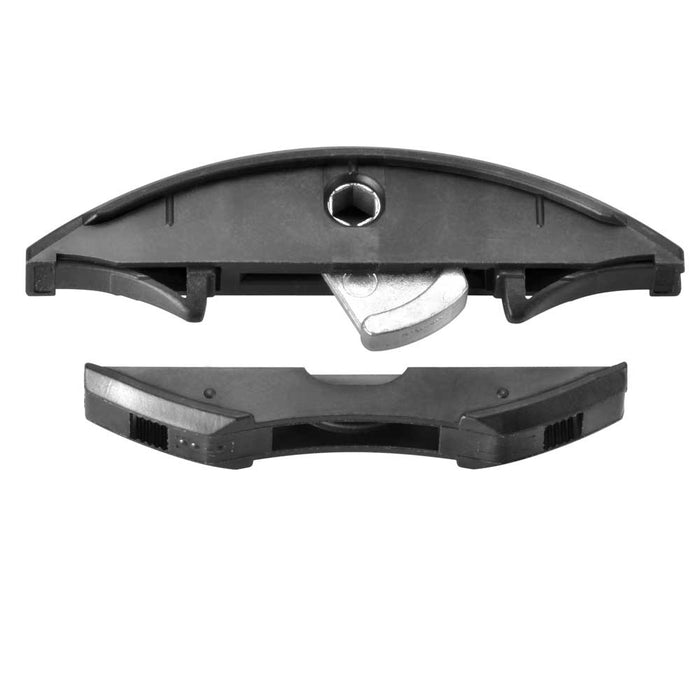

Clamex P-14 is a detachable, two-part connector with an internal cam lock, which is engaged with a lever. Clamex P-14 offers an exceptionally fast and powerful anchorage in the workpiece without tools. Clamex P needs neither glue nor screws, providing the woodworker with numerous advantages in the production process and in the differentiation from standard connecting hardware.
Clamex P-14 has a very small installation depth of 14 mm and may be used in a variety of materials with a minimum thickness of 16 mm (5/8").
Use Zeta P2 depth setting of 14.
Benefits of The Clamex P-14
- Practically wear-free knock-down fitting
- Detachable miter connector for 22.5-180° angles and all butt joints
- Minimal tool opening of just 6 mm
- Extremely rapid, tool-free installation of connectors
- Stackable components for transport with connectors pre-installed
- High clamping force of 200 lbs. for joinery at all angles
- Lateral tolerance for efficient installation with the Zeta P2 biscuit joiner or a CNC machine
Applications
Clamex P can be used in furniture serial production or in individual pieces as well as for interior fitting, shop fitting or trade booths.
The connecting fitting is a popular solution for open shelf units, large pieces of furniture and angled counters, while also being used as a general glueing aid. It is frequently employed as an aesthetic, high-quality connection for premium products.
- Knock down fitting for furniture, shelf units, fitted wardrobes, kitchen manufacturing etc.
- Glueing aid for mitres and unusual angles
- Connecting fitting for detachable elements in shop fitting and booth construction
- Powerful alternative to standard connecting fittings
- Rapid prototype construction before starting new furniture range
- On-site adjustments and assembly
Specifications
Size: 66 × 27 × 9.7 mm
Cutter: Ø 100.4 × 7 × 22
Shell material: Fiber glass reinforced plastic
Lever material: Zinc die cast
Installation tolerance: Longitudinal ± 1 mm
Tensile strength:
Particle board: ~ 800 N ≈ 80 kg
Beech: ~ 1000 N ≈ 100 kg
Specifications
What is Lamello | Clamex P-14?
Lamello | Clamex P-14 is a detachable, two-part connector with an internal cam lock engaged with a lever. It needs neither glue nor screws.
What installation depth and material thickness are listed?
Installation depth of 14 mm; minimum material thickness of 16 mm (5/8 inch). Use Zeta P2 depth setting of 14.
What clamping force and tool opening are listed?
High clamping force of 200 lbs for joinery at all angles; minimal tool opening of just 6 mm.
What angle range is listed for miters?
Detachable miter connector for 22.5-180 degree angles and all butt joints is listed.
How do I get pricing?
Contact Centex Automation for current price, freight, and lead time, or use live storefront pricing when shown.
What brand support applies?
Centex Automation - Built by People Who Know the Shop Floor - helps shops select Lamello connectors and accessories.
Is install training included?
Clamex P-14 setup, training, or service may be available; do not assume they are included. Ask Centex Automation.
What size and materials are listed?
Size about 66 x 27 x 9.7 mm; cutter about 100.4 x 7 x 22; shell fiber glass reinforced plastic; lever zinc die cast; longitudinal installation tolerance about 1 mm.
What tensile strengths are listed?
Particle board about 800 N / 80 kg; beech about 1000 N / 100 kg.
How do I contact Centex Automation?
Use the storefront contact path or your Centex Automation sales contact for selection help, price, and lead time.
