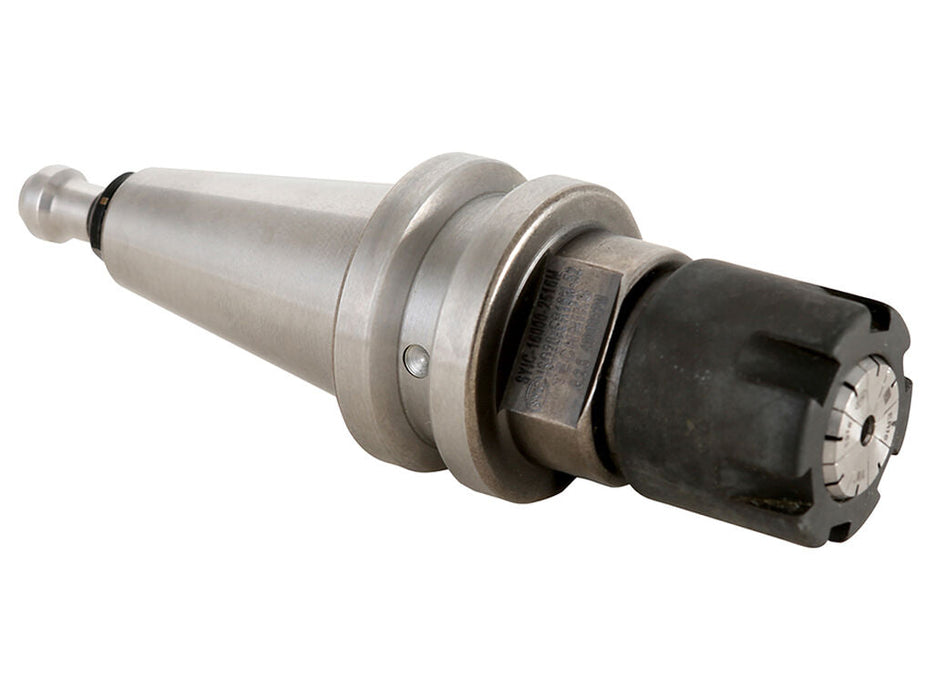

SYIC-16000-2520 N : ISO 20 x ER 20 - 52 with 46120 Nut
by Techniks USA
Original price
$231.30
-
Original price
$231.30
Original price
$231.30
$231.30
-
$231.30
Current price
$231.30
Specifications
| Item Number | SYIC-16000-2520 N |
|---|---|
| Item Description | ISO20 Collet Chuck x ER20 - 40.5mm projection |
| Taper | ISO20 |
| Body Dia | 30mm |
| Overall Dia | 34mm |
| Shank Size | 30mm |
| Weight | 1 |
| Collet series | ER20 |
| Taper length | 33.4mm |
| Nose dia | 35mm |
| Thread | M25x1.5 |
| Projection Length | 40.5mm |
Overview
**All images are representative images. Verify specifications before placing orders.** Techniks Tool Group Collet Chucks are designed to deliver excellent performance in a wide range of machining applications including milling,drilling,and tapping. Our exclusive PowerCOAT nuts come standard on all ER and TG Collet Chuck providing 75% more holding power on the tool shank vs. standard collet nuts for improved safety and reduce the potential of tool slippage. Both through-spindle and CoolFLEX AD+B flange coolant delivery are available. Balanced to 25,000 RPM at G2.5 Maximum 0.0001" T.I.R. measured from taper to collet pocket PowerCOAT Nut increases holding power by 75%
