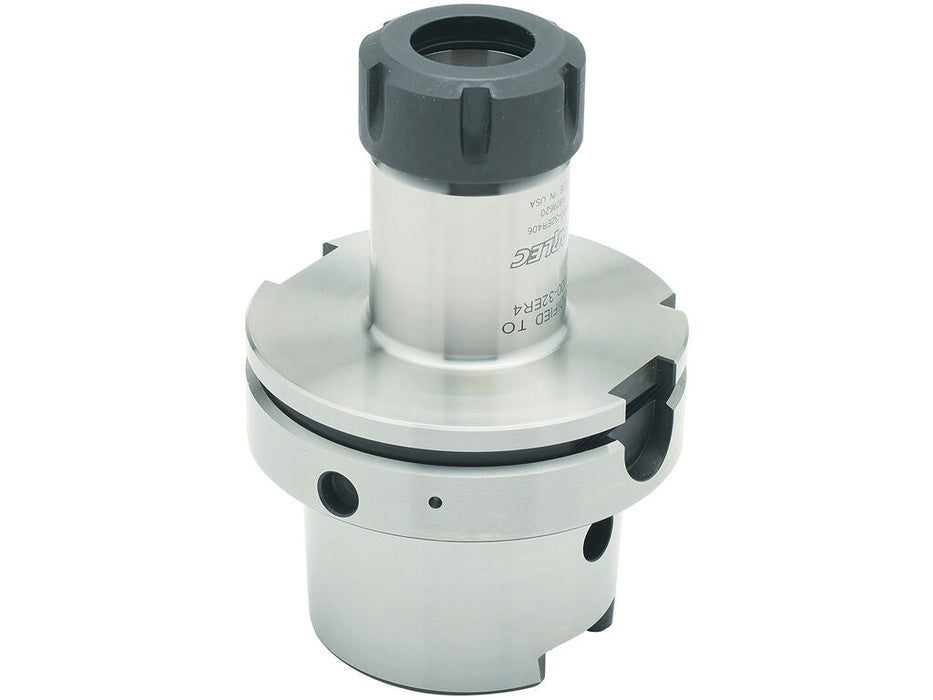

H100-20ERF630 : ER 20 Chuck Flush Nut x 6.30" HSK100A
by Techniks USA
Original price
$550.80
-
Original price
$550.80
Original price
$550.80
$550.80
-
$550.80
Current price
$550.80
Specifications
| Item Number | H100-20ERF630 |
|---|---|
| Item Description | HSK100A ER Collet Chuck x ER20 - 6.3" projection with flush nut |
| Taper | HSK100A |
| Features | Flush nut |
| Overall Length | 8.27" |
| Body Dia | 2.95" |
| Shank Size | 3.94" |
| Weight | 5.8 |
| Collet series | ER20 |
| Nose dia | 1.26" |
| Made in the USA | Yes |
| Projection Length | 6.3" |
Overview
**All images are representative images. Verify specifications before placing orders.** Techniks Tool Group Collet Chucks are designed to deliver excellent performance in a wide range of machining applications including milling, drilling, and tapping. Our exclusive PowerCOAT nuts come standard on all ER and TG Collet Chuck providing 75% more holding power on the tool shank vs. standard collet nuts for improved safety and reduce the potential of tool slippage. Both through-spindle and CoolFLEX AD+B flange coolant delivery are available. Collet seat taper T.I.R. ≤ .0002” Accepts DIN 6499 collets Balanced to G2.5 Constructed of alloy steel for long, durable service life Hardened to Rc: 52-56 to avoid damaging collet chuck treads
