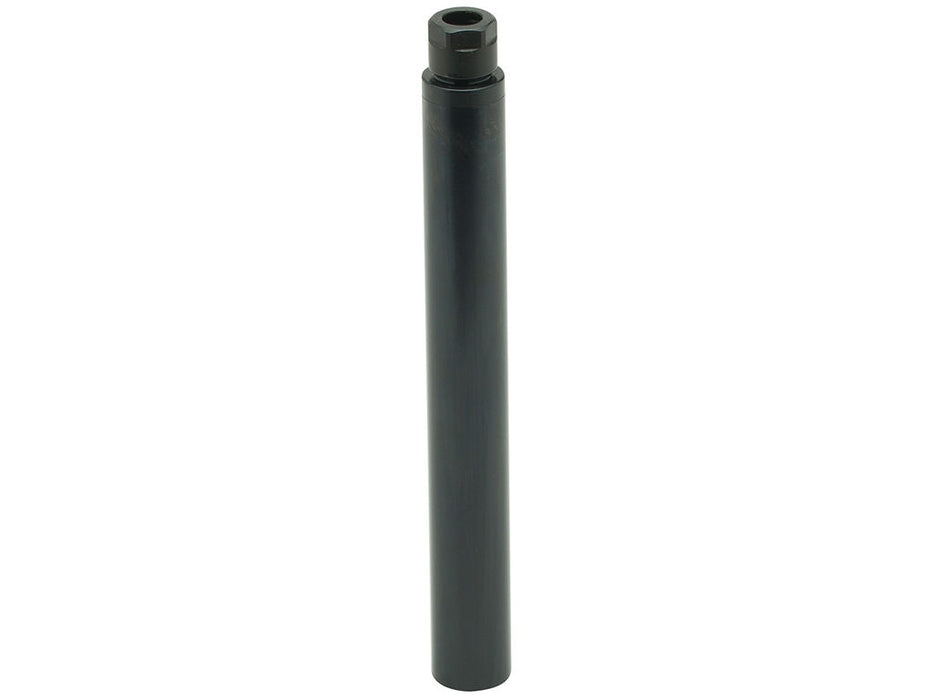

ER40-125-2 : ER 40 Extension 1.25" x 2"
by Techniks USA
Original price
$320.40
-
Original price
$320.40
Original price
$320.40
$320.40
-
$320.40
Current price
$320.40
Specifications
| Item Number | ER40-125-2 |
|---|---|
| Item Description | Straight Shank Extension x ER40 - 4.75" overall length with flush nut |
| Taper | STRSHK |
| Features | Flush nut |
| Overall Length | 4.75" |
| Body Dia | 1.25" |
| Shank Size | 1.25" |
| Weight | 2 |
| Collet series | ER40 |
| Nose dia | 2.47" |
| Made in the USA | Yes |
| Projection Length | 4.75" |
Overview
**All images are representative images. Verify specifications before placing orders.** Techniks Tool Group Collet Chucks are designed to deliver excellent performance in a wide range of machining applications including milling, drilling, and tapping. Our exclusive PowerCOAT nuts come standard on all ER and TG Collet Chuck providing 75% more holding power on the tool shank vs. standard collet nuts for improved safety and reduce the potential of tool slippage. Both through-spindle and CoolFLEX AD+B flange coolant delivery are available. Balanced to 25,000 RPM at G2.5 Maximum 0.0001" T.I.R. measured from taper to collet pocket
