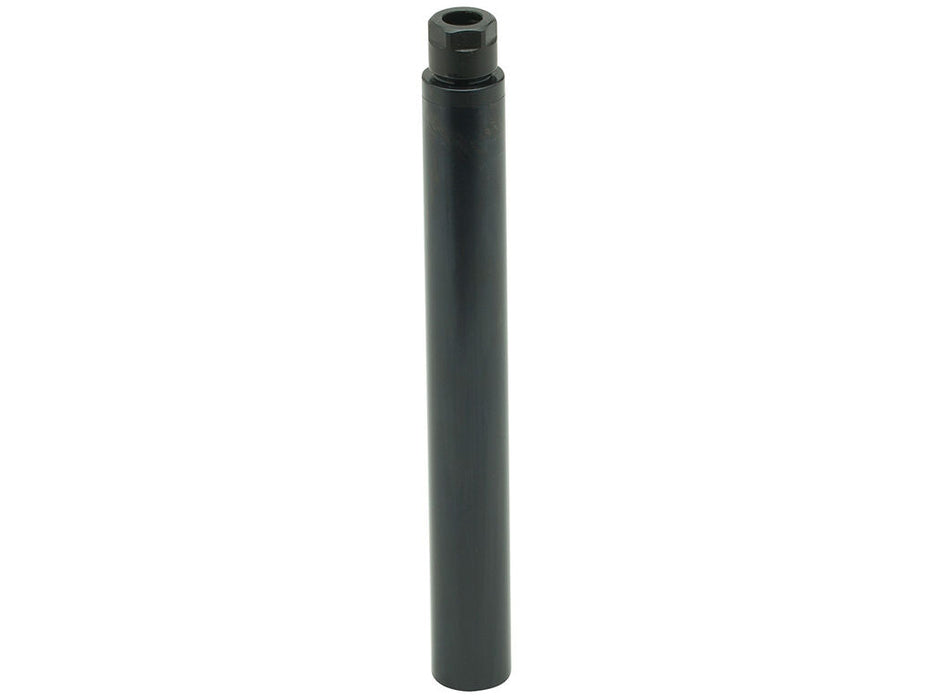

ER25-750-531 : Extension ER 25 3/4 X 5.31
by Techniks USA
Original price
$318.60
-
Original price
$318.60
Original price
$318.60
$318.60
-
$318.60
Current price
$318.60
Specifications
| Item Number | ER25-750-531 |
|---|---|
| Item Description | Straight Shank Extension x ER25 - 5.31" overall length with flush nut |
| Taper | STRSHK |
| Features | Flush nut |
| Overall Length | 5.31" |
| Body Dia | .75" |
| Shank Size | .75" |
| Weight | 1 |
| Collet series | ER25 |
| Nose dia | 1.65" |
| Made in the USA | Yes |
| Projection Length | 5.31" |
Overview
**All images are representative images. Verify specifications before placing orders.** Techniks Tool Group Collet Chucks are designed to deliver excellent performance in a wide range of machining applications including milling, drilling, and tapping. Our exclusive PowerCOAT nuts come standard on all ER and TG Collet Chuck providing 75% more holding power on the tool shank vs. standard collet nuts for improved safety and reduce the potential of tool slippage. Both through-spindle and CoolFLEX AD+B flange coolant delivery are available. Balanced to 25,000 RPM at G2.5 Maximum 0.0001" T.I.R. measured from taper to collet pocket
