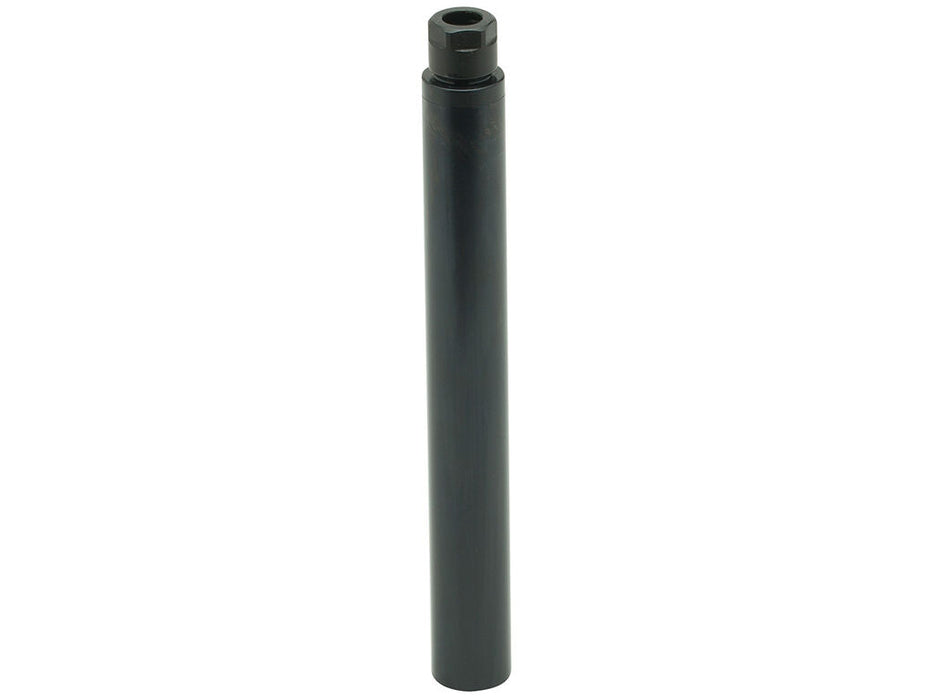

ER20-625-560H : Extension ER 20 .625 X 5.60"
by Techniks USA
Original price
$245.70
-
Original price
$245.70
Original price
$245.70
$245.70
-
$245.70
Current price
$245.70
Specifications
| Item Number | ER20-625-560H |
|---|---|
| Item Description | Straight Shank Extension x ER20 - 5.6" overall length with flush nut |
| Taper | STRSHK |
| Features | Flush nut |
| Overall Length | 5.6" |
| Body Dia | .625" |
| Shank Size | .625" |
| Weight | 1 |
| Collet series | ER20 |
| Nose dia | 1.1" |
| Made in the USA | Yes |
| Projection Length | 5.6" |
Overview
**All images are representative images. Verify specifications before placing orders.** Techniks Tool Group Collet Chucks are designed to deliver excellent performance in a wide range of machining applications including milling, drilling, and tapping. Our exclusive PowerCOAT nuts come standard on all ER and TG Collet Chuck providing 75% more holding power on the tool shank vs. standard collet nuts for improved safety and reduce the potential of tool slippage. Both through-spindle and CoolFLEX AD+B flange coolant delivery are available. Balanced to 25,000 RPM at G2.5 Maximum 0.0001" T.I.R. measured from taper to collet pocket
