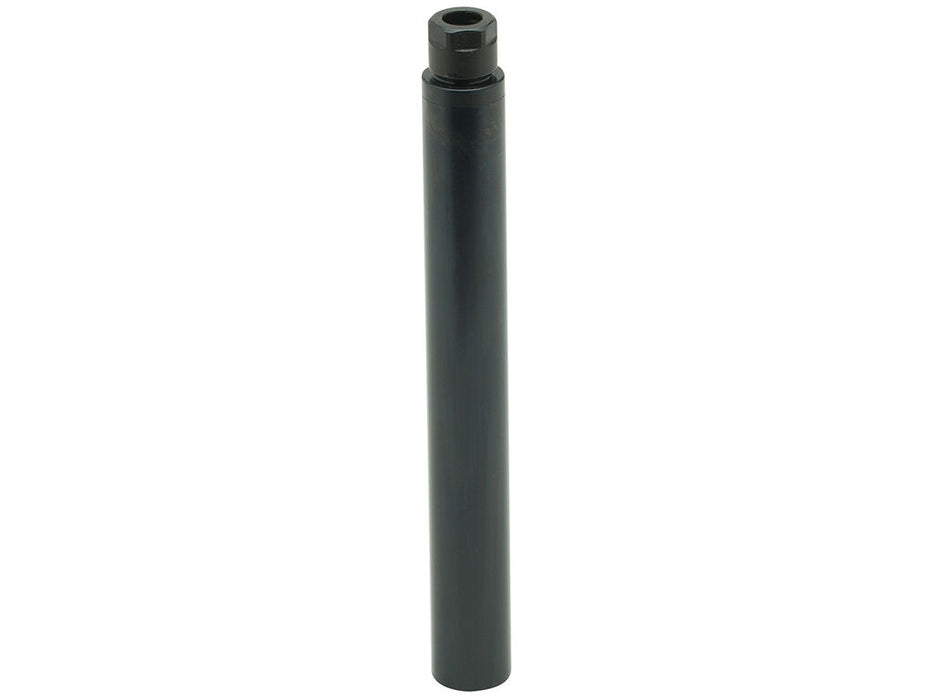

ER16-750-550 : ER 16 ExTension ¾” x 5.50”
by Techniks USA
Original price
$234.00
-
Original price
$234.00
Original price
$234.00
$234.00
-
$234.00
Current price
$234.00
Specifications
| Item Number | ER16-750-550 |
|---|---|
| Item Description | Straight Shank Extension x ER16 - 4.97" overall length with flush nut |
| Taper | STRSHK |
| Features | Flush nut |
| Overall Length | 4.97" |
| Body Dia | .75" |
| Shank Size | .75" |
| Weight | 1 |
| Collet series | ER16 |
| Nose dia | 1.11" |
| Made in the USA | Yes |
| Projection Length | 4.97" |
Overview
**All images are representative images. Verify specifications before placing orders.** Techniks Tool Group Collet Chucks are designed to deliver excellent performance in a wide range of machining applications including milling, drilling, and tapping. Our exclusive PowerCOAT nuts come standard on all ER and TG Collet Chuck providing 75% more holding power on the tool shank vs. standard collet nuts for improved safety and reduce the potential of tool slippage. Both through-spindle and CoolFLEX AD+B flange coolant delivery are available. Balanced to 25,000 RPM at G2.5 Maximum 0.0001" T.I.R. measured from taper to collet pocket
