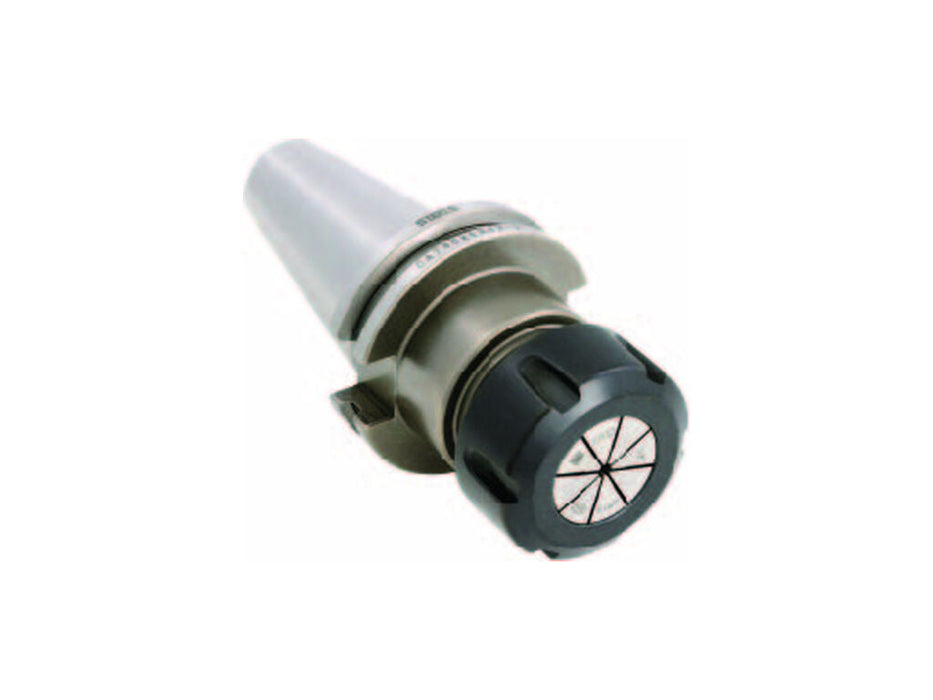

CAT40ER20-2.76 : CAT 40 x ER 20 - 2.76"
by Techniks USA
Original price
$144.00
-
Original price
$144.00
Original price
$144.00
$144.00
-
$144.00
Current price
$144.00
Specifications
| Item Number | CAT40ER20-2.76 |
|---|---|
| Item Description | CAT40 Collet Chuck x ER20 - 2.76" projection |
| Taper | CAT40 |
| Body Dia | 1.75" |
| Shank Size | 2.5" |
| Stop Screw | 16087 |
| Wrench | 04610 |
| Weight | 2.8 |
| Collet series | ER20 |
| Taper length | 2.69" |
| Nose dia | 1.34" |
| Projection Length | 2.76" |
Overview
**All images are representative images. Verify specifications before placing orders.** SIMIS Collet Chucks are designed to deliver reliable performance characteristics for value-conscious customers. Featuring tapers ground at AT3 or better and balanced to 18,000 RPM @ G6.3,SIMIS Collet Chucks are a great choice for shops looking for quality tool holding solutions that won’t break the bank. Taper ground to AT3 for maximum spindle contact Balanced to 15,000 @ G6.3 Available in the most popular sizes
