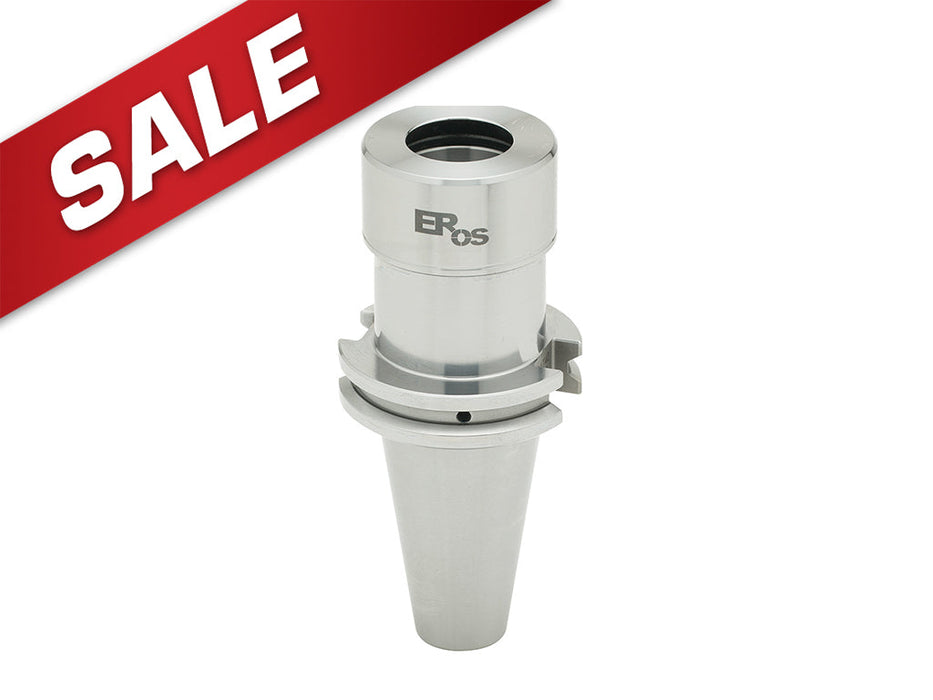

C40BC-40EROS400 : EROS Precison Chuck CAT 40 AD/B 40 X
Specifications
| Item Number | C40BC-40EROS400 |
|---|---|
| Item Description | CAT40 ERos Collet Chuck x ER40 - 4" projection with AD/B Coolant |
| Taper | CAT40 |
| Features | AD/B Coolant |
| Overall Length | 6.69" |
| Body Dia | 1.75" |
| Shank Size | 2.5" |
| Weight | 4.5 |
| Collet series | ER40 |
| Nose dia | 2.48" |
| Made in the USA | Yes |
| Projection Length | 4" |
Overview
**All images are representative images. Verify specifications before placing orders.** ERos®Collet Chucks are for extreme performance and any high speed, high concentricity tool requirement. The .00012” gage runout tolerance at 3X the tool diameter with the balanced and aerodynamic design, provides the highest performance available equip to shrink fit or proprietary designs without high start-up costs. The collet based design provides the simplest solution to extreme performance requirements. ERos® Collet Chucks 3 Micron system precision at 3X shank diameter Grip force comparable to heat shrink and hydraulic chucks Custom length collet seat for maximum contact, providing rigidity and grip force Available AD/B Coolant converts from through-spindle to flange entry coolant supply Precision ground OD, threads and two pilot bores provide the most advanced and precise clamping nut available Balanced to G2.5 and AT3 Taper specifications
