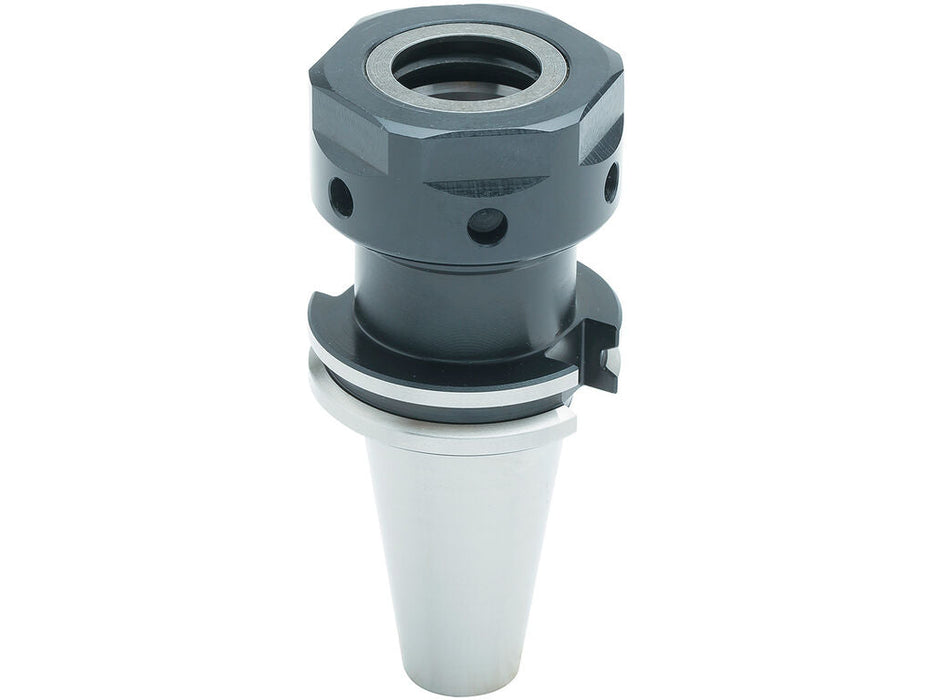

C40BC-10SC300 : PG 100 Chuck X 3.00" CAT40 AD/B
Specifications
| Item Number | C40BC-10SC300 |
|---|---|
| Item Description | CAT40 TG Collet Chuck x TG100 - 3" projection with AD/B Coolant |
| Taper | CAT40 |
| Features | AD/B Coolant |
| Overall Length | 5.69" |
| Body Dia | 1.75" |
| Shank Size | 2.5" |
| Weight | 2.9 |
| Collet series | TG100 |
| Nose dia | 2.44" |
| Made in the USA | Yes |
| Projection Length | 3" |
Overview
**All images are representative images. Verify specifications before placing orders.** Techniks Tool Group Collet Chucks are designed to deliver excellent performance in a wide range of machining applications including milling, drilling, and tapping. Our exclusive PowerCOAT nuts come standard on all ER and TG Collet Chuck providing 75% more holding power on the tool shank vs. standard collet nuts for improved safety and reduce the potential of tool slippage. Both through-spindle and CoolFLEX AD+B flange coolant delivery are available. Constructed of alloy steel for long, durable service life Hardened to Rc: 52-56 to avoid damaging collet chuck threads Shiny taper with black oxide finish for the best combination of accuracy and durability Collet seat taper T.I.R. ≤ .0002” Collet face within .06" of nut face for maximum rigidity Collet can be removed with single hand. No tooling required and improved collet life Precision ball bearing type collet races provide higher clamping forces Through-spindle coolant capability ParSymmetry design for high-speed operation
