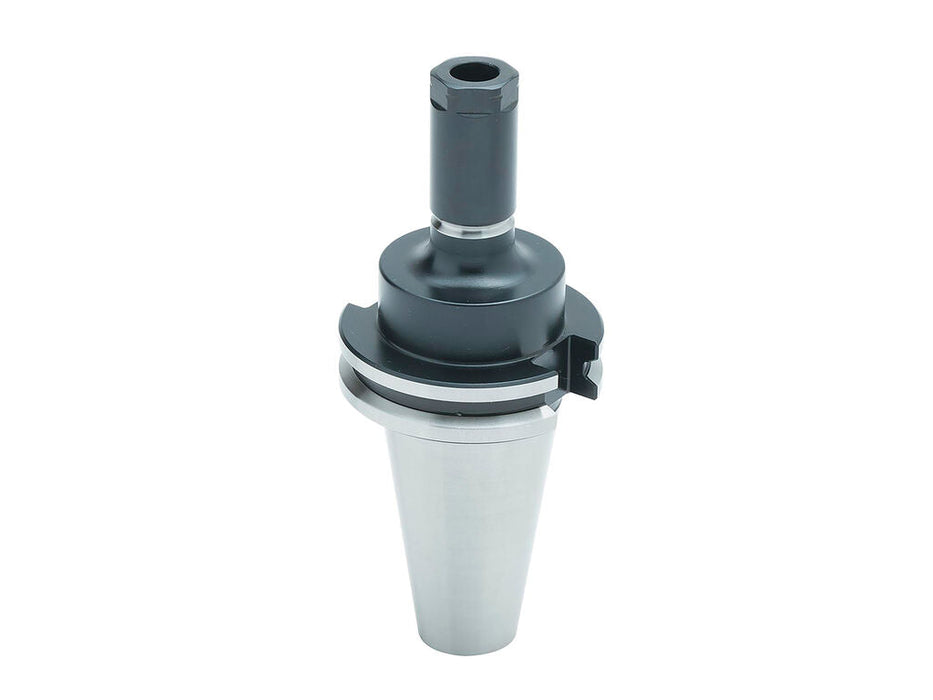

C40-20DC5 : DA200 Chuck X 5.00" CAT40
by Techniks USA
Original price
$260.10
-
Original price
$260.10
Original price
$260.10
$260.10
-
$260.10
Current price
$260.10
Specifications
| Item Number | C40-20DC5 |
|---|---|
| Item Description | CAT40 Double-Angle Collet Chuck x DA200 - 5" projection |
| Taper | CAT40 |
| Overall Length | 7.69" |
| Body Dia | 1.75" |
| Shank Size | 2.5" |
| Weight | 3.5 |
| Collet series | DA200 |
| Nose dia | 1.1" |
| Made in the USA | Yes |
| Projection Length | 5" |
Overview
**All images are representative images. Verify specifications before placing orders.** Techniks Tool Group Collet Chucks are designed to deliver excellent performance in a wide range of machining applications including milling, drilling, and tapping. Our exclusive PowerCOAT nuts come standard on all ER and TG Collet Chuck providing 75% more holding power on the tool shank vs. standard collet nuts for improved safety and reduce the potential of tool slippage. Constructed of alloy steel for long, durable service life Hardened to Rc: 52-56 to avoid damaging collet chuck threads Shiny taper with black oxide finish for the best combination of accuracy and durability Collet seat taper T.I.R. ≤ .0004” Through-spindle coolant capability
