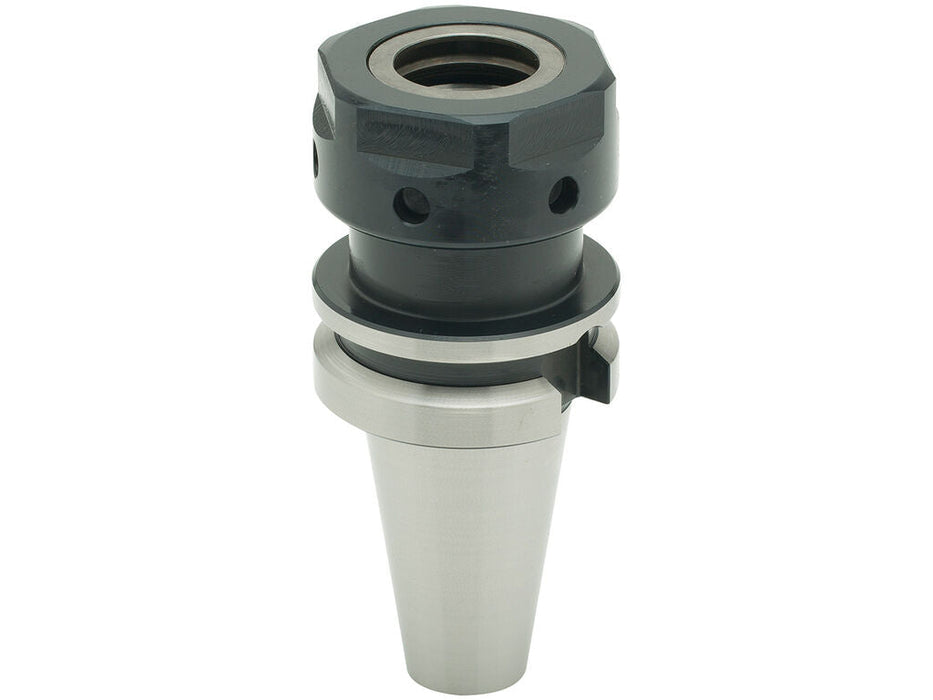

B40-10SC3 : PG100 Chuck X 3.00" BT40
Specifications
| Item Number | B40-10SC3 |
|---|---|
| Item Description | BT40 TG Collet Chuck x TG100 - 3" projection |
| Taper | BT40 |
| Overall Length | 5.57" |
| Body Dia | 1.75" |
| Shank Size | 2.48" |
| Weight | 3.5 |
| Collet series | TG100 |
| Nose dia | 2.44" |
| Made in the USA | Yes |
| Projection Length | 3" |
Overview
**All images are representative images. Verify specifications before placing orders.** Techniks Tool Group Collet Chucks are designed to deliver excellent performance in a wide range of machining applications including milling, drilling, and tapping. Our exclusive PowerCOAT nuts come standard on all ER and TG Collet Chuck providing 75% more holding power on the tool shank vs. standard collet nuts for improved safety and reduce the potential of tool slippage. Constructed of alloy steel for long, durable service life Hardened to Rc: 52-56 to avoid damaging collet chuck threads. Shiny taper with black oxide finish for the best combination of accuracy and durability Collet seat taper T.I.R. ≤ .0002” Collet face within .06" of nut face for maximum rigidity Collet can be removed with single hand. No tooling required and improved collet life Precision ball bearing type collet races provide higher clamping forces Through-spindle coolant capability ParSymmetry design for high-speed operation
