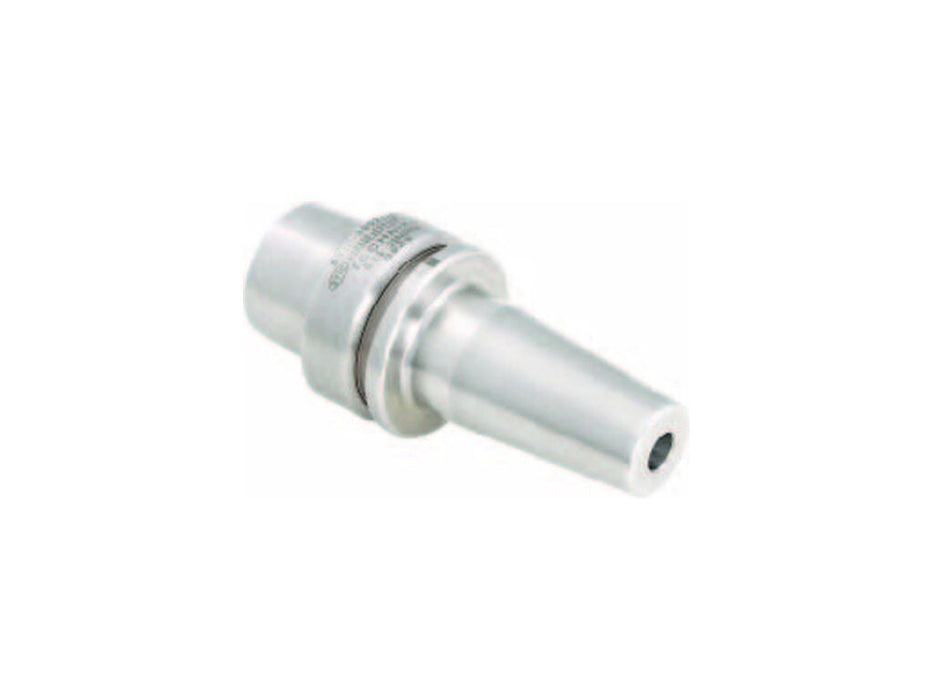

39020-E : HSK 50E x SF 5/16" - 3.54"
by Techniks USA
Original price
$369.00
-
Original price
$369.00
Original price
$369.00
$369.00
-
$369.00
Current price
$369.00
Specifications
| Item Number | 39020-E |
|---|---|
| Item Description | HSK50E Shrinkfit Holder x .313" bore - 3.54" projection |
| Taper | HSK50E |
| Overall Length | 4.53" |
| Body Dia | 1.06" |
| Overall Dia | 2" |
| Weight | 1.7 |
| Nose dia | .83" |
| Bore Size | 5/16" |
| Taper Dia | 1.5" |
| Nose Length | 1.42" |
| Projection Length | 3.54" |
Overview
**All images are representative images. Verify specifications before placing orders.** HSK50E ShrinkFIT Holders designed to secure cutting tools used in high-speed milling machines are an excellent choice for high speed applications such as when machining with small diameter tools. Our high quality ShrinkFIT holders are manufactured to provide repeatable accuracy of less than 0.0001” runout to maximize tool life and performance. Extended gage lengths are available for long reach applications such as machining on horizontal machining centers. Maximum T.I.R. only 0.0001" Balanced 25,000 RPM at G2.5 Coolant-thru stop screw included
