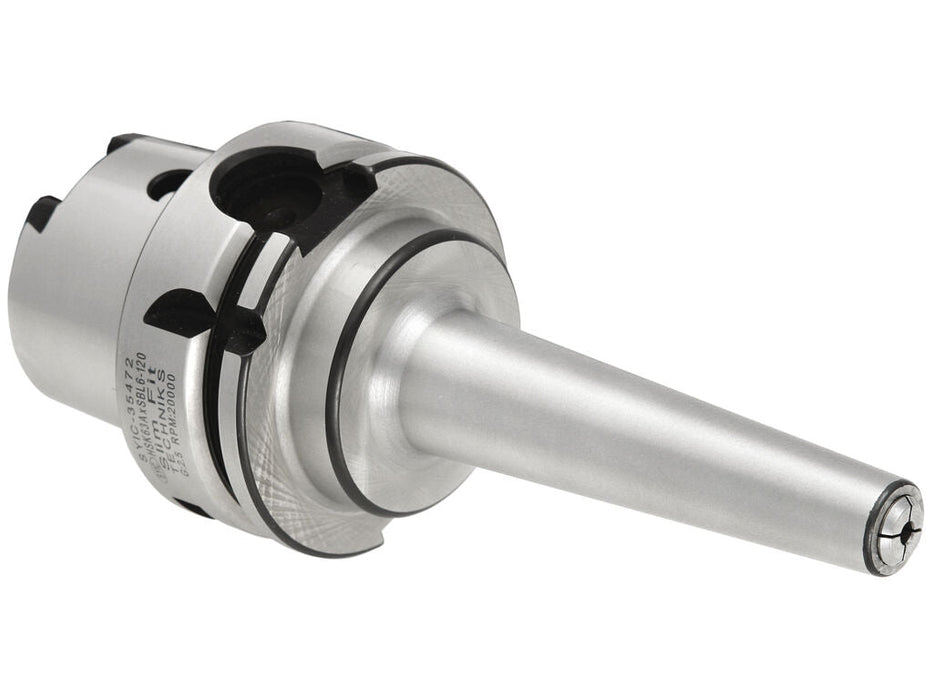

35470-F : HSK 63F x SBL 6 - 80 with wrench
by Techniks USA
Original price
$381.60
-
Original price
$381.60
Original price
$381.60
$381.60
-
$381.60
Current price
$381.60
Specifications
| Item Number | 35470-F |
|---|---|
| Item Description | HSK63F Collet Chuck x SBL6 - 80mm projection |
| Taper | HSK63F |
| Body Dia | 48.01mm |
| Shank Size | 63mm |
| Weight | 3.7 |
| Collet series | SBL6 |
| Taper length | 25mm |
| Nose dia | 14mm |
| Projection Length | 80mm |
Overview
**All images are representative images. Verify specifications before placing orders.** Techniks Tool Group Collet Chucks are designed to deliver excellent performance in a wide range of machining applications including milling,drilling,and tapping. Our exclusive PowerCOAT nuts come standard on all ER and TG Collet Chuck providing 75% more holding power on the tool shank vs. standard collet nuts for improved safety and reduce the potential of tool slippage. Both through-spindle and CoolFLEX AD+B flange coolant delivery are available. Balanced to 25,000 RPM at G2.5 Maximum 0.0001" T.I.R. measured from taper to collet pocket PowerCOAT Nut increases holding power by 75%
