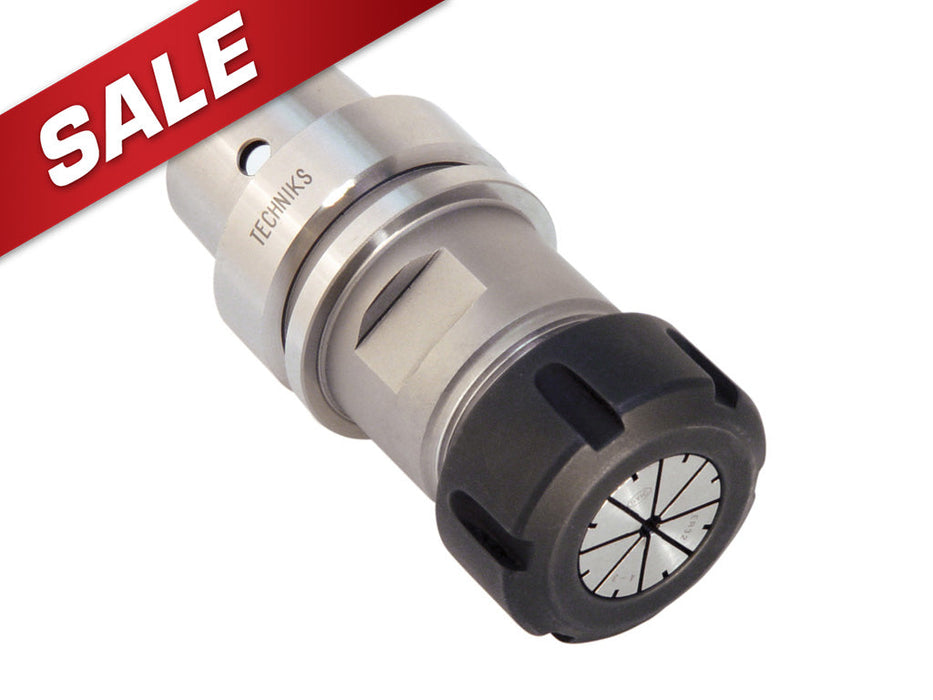

31472-E : HSK 63E x ER 40 - 120 with 46140 nut
by Techniks USA
Original price
$137.70
-
Original price
$137.70
Original price
$137.70
$137.70
-
$137.70
Current price
$137.70
Specifications
| Item Number | 31472-E |
|---|---|
| Item Description | HSK63E Collet Chuck x ER40 - 120mm projection |
| Taper | HSK63E |
| Body Dia | 48.01mm |
| Shank Size | 63mm |
| Stop Screw | 16091 |
| Wrench | 04617 |
| Weight | 6.1 |
| Collet series | ER40 |
| Taper length | 32mm |
| Nose dia | 63mm |
| Flats | 46mm |
| Projection Length | 120mm |
Overview
**All images are representative images. Verify specifications before placing orders.** Techniks Tool Group Collet Chucks are designed to deliver excellent performance in a wide range of machining applications including milling,drilling,and tapping. Our exclusive PowerCOAT nuts come standard on all ER and TG Collet Chuck providing 75% more holding power on the tool shank vs. standard collet nuts for improved safety and reduce the potential of tool slippage. Both through-spindle and CoolFLEX AD+B flange coolant delivery are available. Balanced to 25,000 RPM at G2.5 Maximum 0.0001" T.I.R. measured from taper to collet pocket PowerCOAT Nut increases holding power by 75%
