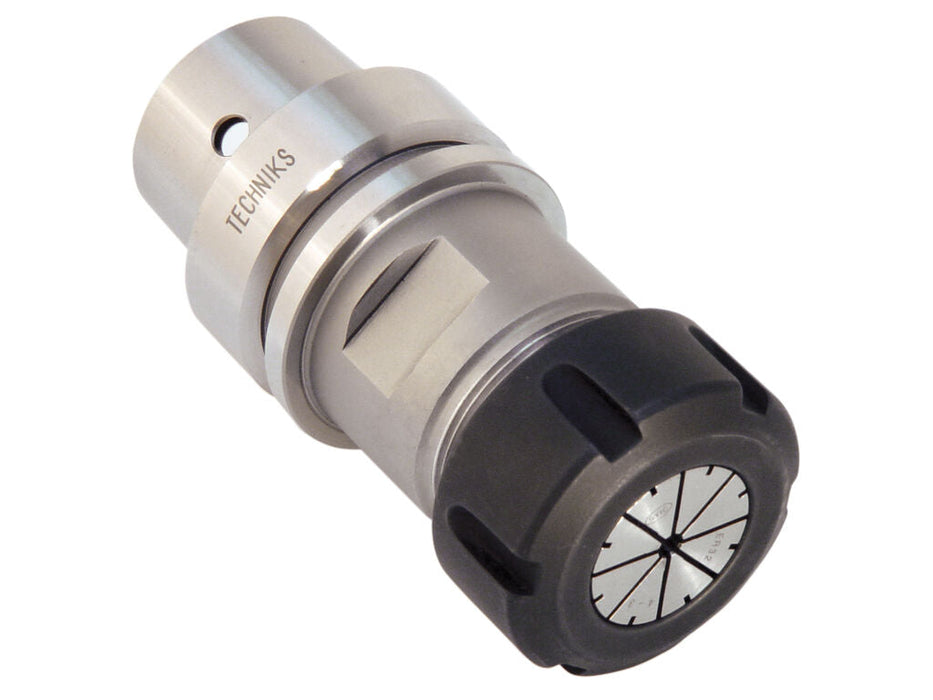

31386-E : HSK 40E x ER 32 - 100
by Techniks USA
Original price
$311.40
-
Original price
$311.40
Original price
$311.40
$311.40
-
$311.40
Current price
$311.40
Specifications
| Item Number | 31386-E |
|---|---|
| Item Description | HSK40E Collet Chuck x ER32 - 100mm projection |
| Taper | HSK40E |
| Body Dia | 30mm |
| Shank Size | 40mm |
| Stop Screw | 16089 |
| Wrench | 04616 |
| Weight | 2 |
| Collet series | ER32 |
| Taper length | 20mm |
| Nose dia | 50mm |
| Flats | 35mm |
| Projection Length | 100mm |
Overview
**All images are representative images. Verify specifications before placing orders.** Techniks Tool Group Collet Chucks are designed to deliver excellent performance in a wide range of machining applications including milling,drilling,and tapping. Our exclusive PowerCOAT nuts come standard on all ER and TG Collet Chuck providing 75% more holding power on the tool shank vs. standard collet nuts for improved safety and reduce the potential of tool slippage. Both through-spindle and CoolFLEX AD+B flange coolant delivery are available. Balanced to 25,000 RPM at G2.5 Maximum 0.0001" T.I.R. measured from taper to collet pocket PowerCOAT Nut increases holding power by 75%
